Product Details:
|
| Voltage: | 380V | Package Type: | Normal Open Or M Type Bag |
|---|---|---|---|
| Function: | Weighing, Filling, Sealing | Frequency: | 50-60Hz, 380V |
| Power: | 4 KW | Packing Speed: | 2-4 Bags Per Min |
| Air Pressure: | 0.4-0.6 MPa | Automatic Grade: | Semi-automatic |
| Bag Sealing Typpe: | Thread Stitched / Heat Sealed | ||
| Highlight: | Wheat Flour Industry Bag Filling Machine,Thread Stitched Powder Bag Filling Machine,25Kg Heavy Powder Bag Filling Machine |
||

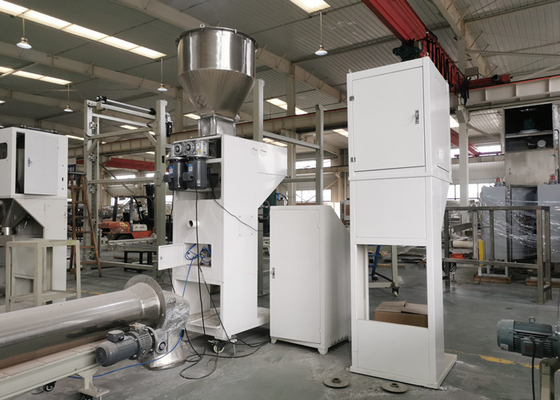

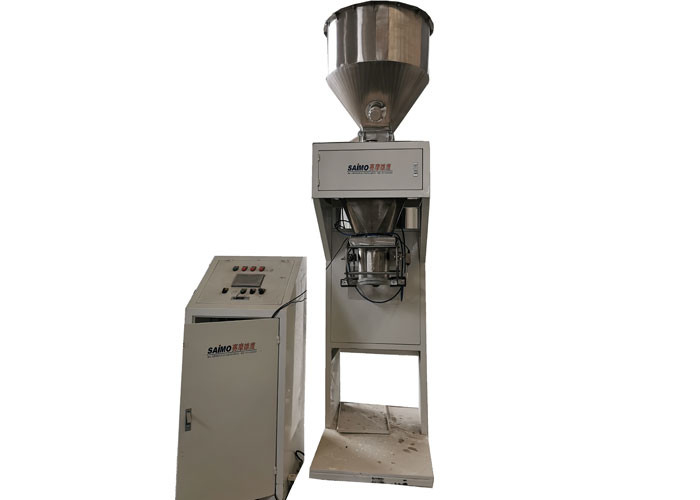

Heavy Bag 25Kg Powder Bag Filling Machine In Wheat Flour Industry
Machine Features
Sole weight feeding system: Inverter velocity control, double-speed feeding.
Bag clamping system composes of weighing frame, sensor, bracket.
Pneumatic control system for material feeding, filling and bag clamping.
With belt transmission for high stability
With hopper as a feeding buffer device.
It ensures weighing velocity and precision.
Application Scope
Automatic weighing packaging for powder or fine particles materials in pharmaceutical, chemical, fertilizer, pesticide, additive, flour, food and other industries.
Procedure
Raw material silo → Packing unit → manual Bagging → automatic Measurement → automatic bag discharge → Conveyor → automatic Sewing machine.
Technical Parameters
| Model | Weighing Scope | Speed | Accuracy | Power | Air pressure |
| SXP05PB | 0.5-5kg | 4-6 bags/minute | 0.2-1%F.S | 2Kw |
0.4-0.6Mpa |
| SXP25PW | 5-25KG | 3-5 bags/minute |
0.2%F.S |
4Kw |
|
| SXP25PB | 5-25KG | 5-10bags/minute | |||
| SXP50PW | 10-50kg | 3-5 bags/minute |
Machine Main Components List
| No | Name | Model | Manufacturer | QTY |
| 1 | Control system | Canada Germaine | 1 | |
| 2 | Weighing controller | Canada Germaine | 1 | |
| 3 | Weighing sensor | Avionics | 1 | |
| 4 | Approach switch | BN-M18 | Omron | 1 |
| 5 | Optoelectronic switch | FQ31-TO8P | Omron | 1 |
| 6 | Other low-pressure component | Zhengtai | 1batch | |
| 7 | Motor | Zhengjiang China | 1batch | |
| 8 | Cylinder | AIRTAC | 1batch | |
| 9 | Magnetic valve | AIRTAC | 1batch | |
| 10 | Other pneumatic element | AIRTAC | 1batch |
After-sale Service
1.We will test the machine before machine delivery. 2.Professional manual shipping together with the machine.
3.Professional team of engineers who owned many installation, debug and training experiences abroad, are available to service machinery overseas.
Packaging and Delivery
1. Wooden case after fumigation treatment. No need timber inspection.
2. All the spare parts are packaged by soft materials, to avoid damages during delivery; at last, we'll cover plastic wrap out it to make sure Waterproof and rust proof.
WHY CHOOSE US
1.We have 30 years’ experience to packing machine
2.Strong ability of product sure to deliver the goods within a month
3.We have a stable technology team that more than 30 engineers in our factory
4.ISO9001 certified workshop and CE
5.The supporter of spare part all are famous company and have reliable quality
