Product Details:
|
| Package Type: | Auger Type Powder Filling Machine | Voltage: | 3 Phases-380V / 50-60 Hz |
|---|---|---|---|
| Packing Speed: | 1-5 Bag/minute | Function: | Weighing, Filling, Sealing |
| Weighing Sensor: | AirTAC Load Cell | Power: | 2-4 KW |
| Available Powder Mesh: | Not More Than 200 Mesh, No Air Or Small Air | Air Pressure: | 0.4-0.6 MPa |
| Bag Sealing Typpe: | Bag Sewed / Customized | ||
| Highlight: | Non Bucket Powder Packaging Machine,5 Bag/Minute Powder Packaging Machine,Auger Type Powder Filling Machine |
||

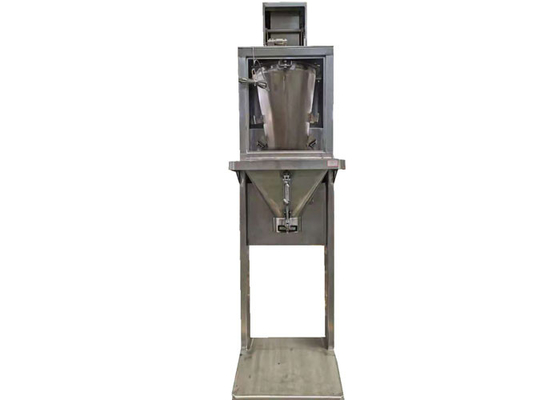

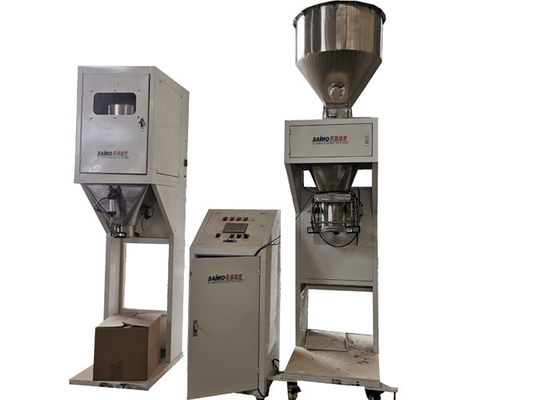

Non-Bucket Powder Packaging Machine 10-50kg And Auger Type Powder Filling Machine
Brief Introduction
SXPA serious automatic packaging machine is a use of the latest technology of electronic weighing automatic quantitative packaging machine. It is suitable for variety of powder and small particles. Machine and material contact part of the use of stainless steel 304 production. It is modular in the design of the design, the components to the flange or soft connection connected to maximize the efficiency, maintenance clean and simple. Control system and pneumatic components all use world-class quality products, all pneumatic components using AirTAC cylinder (available according to customer requirements).
Application Scope
Automatic weighing packaging for powder or fine particles materials in pharmaceutical, chemical, fertilizer, pesticide, additive, flour, food and other industries.
Technical Parameters
| product name | Powder packaging machine |
| Product Features | Automatic filling weighing and conveying, sewing bags |
| Weighing range | 5-50kg |
| Packaging speed | Weighing: 2-4 bags / minute |
| Bag type | Plastic, paper bag, woven bag |
| Accuracy | Weighing error: 0.2-0.5 % |
| Gas source | 0.4-0.65Mpa |
| power supply | 380v/220v/50hz |
| material | Carbon steel / stainless steel |
| Warranty | 1 years / Lifelong maintenance |
| After sales service | Engineers serving wordwide |
Features:
It ensures weighing velocity and precision.
Sole weight feeding system: Inverter velocity control, double-speed feeding.
Bag clamping system composes of weighing frame, sensor, bracket.
Pneumatic control system for material feeding, filling and bag clamping.
With belt transmission for high stability.
Procedure
The material will enter the gravity feeder through the feeding part (connecting hopper), and then enter the weighing hopper. The weighing hopper is equipped with 3 weighing sensors for manually transporting the weighed bags to the bag holder of the packaging machine. The device and touch the sensor, the bag will be automatically clamped, the completed weighing material will be discharged into the bag, release the bag, transfer it to the sewing machine, and close the bag by sewing
Machine Main Components List
| No | Name | Model | Manufacturer | QTY |
| 1 | Control system | Canada Germaine | 1 | |
| 2 | Weighing controller | Canada Germaine | 1 | |
| 3 | Weighing sensor | Avionics | 1 | |
| 4 | Approach switch | BN-M18 | Omron | 1 |
| 5 | Optoelectronic switch | FQ31-TO8P | Omron | 1 |
| 6 | Other low-pressure component | Zhengtai | 1batch | |
| 7 | Motor | Zhengjiang China | 1batch | |
| 8 | Cylinder | AIRTAC | 1batch |
After-sale Service
1) Provide 24-hour service hotline.
2) Answer and find solutions in the shortest time according to customer requirements.
3) Provide telephone service to help customers solve problems.
4) Provide machine installation and commissioning for free, and inform customers how to perform machine maintenance.
Packaging and Delivery
1. Wooden case after fumigation treatment. No need timber inspection.
2. Our commonly used ports are Shanghai port, and other ports can be selected according to customer requirements
Our Services & Strength
Our company specializes in the production of quantitative packaging scale packaging machines. We can provide all equipments of packaging line, including the batching system, packing machines. (Semi-automatic / fully automatic), hopper, conveyor (2/3/4/5 / 8 meters etc.), various item of elevator (belt / screw / bucket elevator etc.), automatic bag stacking / palletizer machine, air compressor, sewing / heat sealing machine, thread for sewing and so on. We have made many cases of packaging solution for feed, fertilizer, flour, starches, grain, soil, stone, manure, chemical, mining, coal, cement, lime powder etc. industries.
