25Kg Bag Chemical Powder Packing Machine High Accuracy

High Accuracy 25Kg Bag Chemical Powder Packing Machine

High Accuracy Powder Weighing And Filling Machine In Chemical Industry , 25 Kg Bag

Brief Introduction

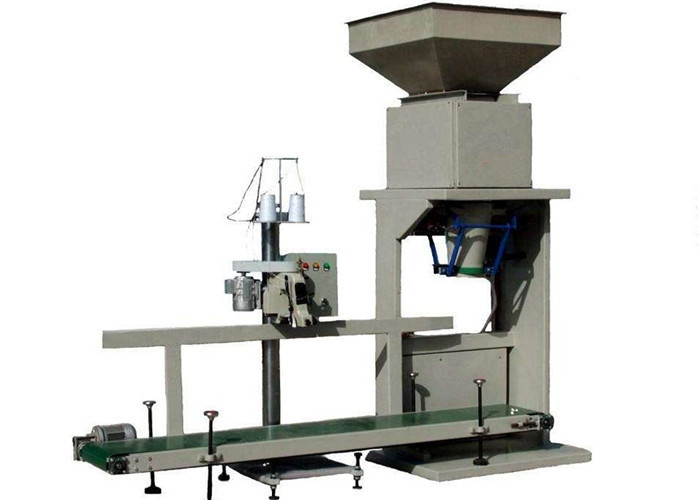

SXPA serious automatic packaging machine is a use of the latest technology of electronic weighing automatic quantitative packaging machine. It is suitable for variety of powder and small particles. Machine and material contact part of the use of stainless steel 304 production. It is modular in the design of the design, the components to the flange or soft connection connected to maximize the efficiency, maintenance clean and simple. Control system and pneumatic components all use world-class quality products, all pneumatic components using AirTAC cylinder (available according to customer requirements); control instrument using Canada Germain 8848, software features rich, simple, reliable, To ensure continuous operation million times without failure. The series of automatic quantitative packaging machine feeding system designed into three feeding, from the hopper, feeding device, measuring device, plug device, folder bag device, electronic control system, sewing system, transportation system and other combinations together.

Application Scope

Automatic weighing packaging for powder or fine particles materials in pharmaceutical, chemical, fertilizer, pesticide, additive, flour, food and other industries.


Procedure

Raw material silo → Packing unit → manual Bagging → automatic Measurement → automatic bag discharge → Conveyor → automatic Sewing machine.


Technical Parameters


Features:

1. This unit is specially designed for ultrafine powdery materials, with unique structure, accurate weighing, and stable reliability;
2. The weighing control system is controlled centrally by Canada controller and is designed according to IP54 (dustproof and waterproof) requirement;
3. This unit consists of fully automatic weighing machine (including bag clamp mechanism), conveyor, bag sewing machine and automatic control cabinet;
4. The mechanical section is fed by horizontal double auger with independent metering and dedusting mechanism, fast metering speed and high accuracy;
5. Options: multiple devices available for free selection (conveyor, bag sewing machine, sealing machine, elevator, air pump, dust collector, metal detector,
over-allowance checker.
6. It can be tailor-made according to the customer's need and site.


Machine Main Components List

After-sale Service

1. We will test the machine before machine delivery. 2. Professional manual shipping together with the machine.

3. Professional team of engineers who owned many installation, debug and training experiences abroad, are available to service machinery overseas.

Packaging and Delivery

1. Wooden case after fumigation treatment. No need timber inspection.
2. All the spare parts are packaged by soft materials, to avoid damages during delivery; at last, we'll cover plastic wrap out it to make sure Waterproof and rust proof.


WHY CHOOSE US
1. We have 30 years’ experience to packing machine
2. Strong ability of product sure to deliver the goods within a month
3. We have a stable technology team that more than 30 engineers in our factory

4. ISO9001 certified workshop and CE

5. The supporter of spare part all are famous company and have reliable quality
