Product Details:
|
| Voltage: | 380V | Package Type: | Normal Open Or M Type Bag |
|---|---|---|---|
| Available Powder Mesh: | 100-200 Mesh | Function: | Weighing, Filling, Sealing |
| Packing Speed: | 100-180 Bags Per Hour (calculate By Flour 25 Kg) | Power: | 4 KW |
| Weighing Sensor: | Load Cell | Air Pressure: | 0.4-0.65 MPa |
| Bag Sealing Typpe: | Bag Sewed Or Heat Sealed Or Customized | ||
| Highlight: | 25kg Powder Weighing And Filling Machine,Chemical Industry Powder Packing Machine,25kg Powder Packing Machine |
||

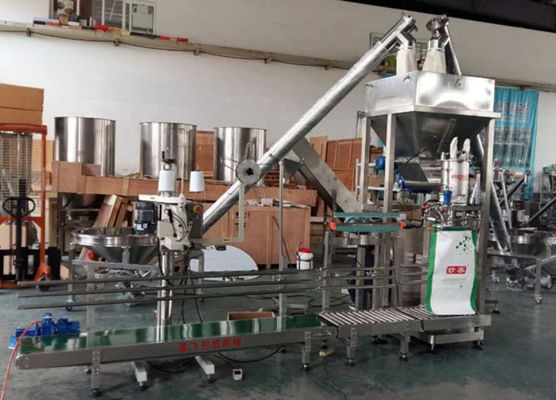

Fast Speed 25kg Open Mouth Bag Paint Powder Packing Machine In Chemical Industry
Brief Introduction
The quantitative filling and packaging scale machine is mainly composed of four parts: automatic weighing, conveying equipment, bag sealing equipment and computer control. It has the characteristics of reasonable structure, beautiful appearance, stable operation, energy saving and power saving, easy operation and accurate weighing. The main engine adopts dual-frequency spiral propulsion, dual-barrel measurement, advanced digital frequency conversion control technology, sample processing technology, and anti-interference technology to achieve automatic error compensation and correction.
Application Scope
Automatic weighing packaging for powder or fine particles materials in pharmaceutical, chemical, fertilizer, pesticide, additive, flour, food and other industries.
Technical Parameters
| product name | Powder packaging machine |
| Product Features | Automatic filling weighing and conveying, sewing bags |
| Weighing range | 5-50kg |
| Packaging speed | Weighing: 2-4 bags / minute |
| Bag type | Plastic, paper bag, woven bag |
| Accuracy | Weighing error: 0.2-0.5 % |
| Gas source | 0.4-0.65Mpa |
| power supply | 380v/220v/50hz |
| material | Carbon steel / stainless steel |
| Warranty | 1 years / Lifelong maintenance |
| After sales service | Engineers serving overseas |
Features:
1. This unit is specially designed for ultrafine powdery materials, with unique structure, accurate weighing, and stable reliability;
2. The weighing control system is controlled centrally by Canada controller and is designed according to IP54 (dustproof and waterproof) requirement;

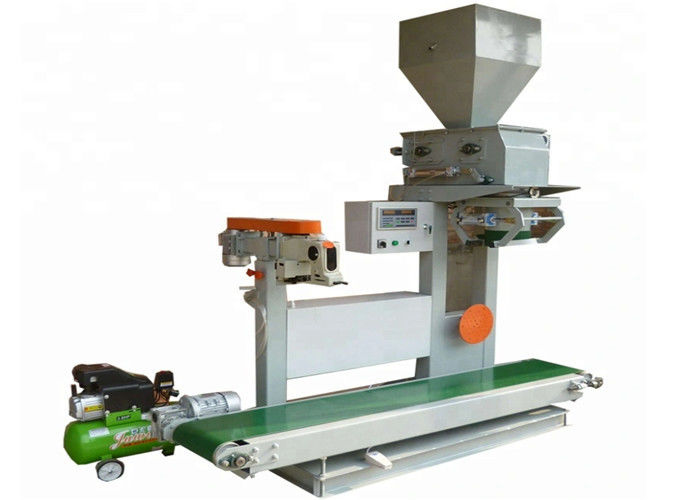

3. This unit consists of fully automatic weighing machine (including bag clamp mechanism), conveyor, bag sewing machine and automatic control cabinet;
4. The mechanical section is fed by horizontal double auger with independent metering and dedusting mechanism, fast metering speed and high accuracy
Procedure
The material will enter the gravity feeder through the feeding part (connecting hopper), and then enter the weighing hopper. The weighing hopper is equipped with 3 weighing sensors for manually transporting the weighed bags to the bag holder of the packaging machine. The device and touch the sensor, the bag will be automatically clamped, the completed weighing material will be discharged into the bag, release the bag, transfer it to the sewing machine, and close the bag by sewing
Machine Main Components List
| No | Name | Model | Manufacturer | QTY |
| 1 | Control system | Canada Germaine | 1 | |
| 2 | Weighing controller | Canada Germaine | 1 | |
| 3 | Weighing sensor | Avionics | 1 | |
| 4 | Approach switch | BN-M18 | Omron | 1 |
| 5 | Optoelectronic switch | FQ31-TO8P | Omron | 1 |
| 6 | Other low-pressure component | Zhengtai | 1batch | |
| 7 | Motor | Zhengjiang China | 1batch | |
| 8 | Cylinder | AIRTAC | 1batch | |
| 9 | Magnetic valve | AIRTAC | 1batch | |
| 10 | Other pneumatic element | AIRTAC | 1batch |
After-sale Service
1.We will test the machine before machine delivery. 2.Professional manual shipping together with the machine.
3.Professional team of engineers who owned many installation, debug and training experiences abroad, are available to service machinery overseas.
Packaging and Delivery
1. Wooden case after fumigation treatment. No need timber inspection.
2. Our commonly used ports are Shanghai port, and other ports can be selected according to customer requirements
WHY CHOOSE US
1.ISO9001 certified workshop and CE
2.The supporter of spare part all are famous company and have reliable quality
3.We have 30 years’ experience to packing machine
4.Strong ability of product sure to deliver the goods within a month
5.We have a stable technology team that more than 30 engineers in our factory
