Product Details:
|
| Tale Height: | 620mm | Conveyor Speed: | 60m/min |
|---|---|---|---|
| Protection Degree: | IP30/IP54/IP66 | Max Detection Speed: | 50-75 Pcs/min |
| Power Supply: | 110v,220v,380v Can Be Customized | Max Accuracy: | ±2-5g |
| User Manual: | English | Machine Size (L*W*H): | 1485*1700*1400mm Or Customized |
| Highlight: | IP30 Automatic Check Weigher,316 Stainless Steel Automatic Check Weigher,Aluminium Alloy Automatic Checkweigher |
||

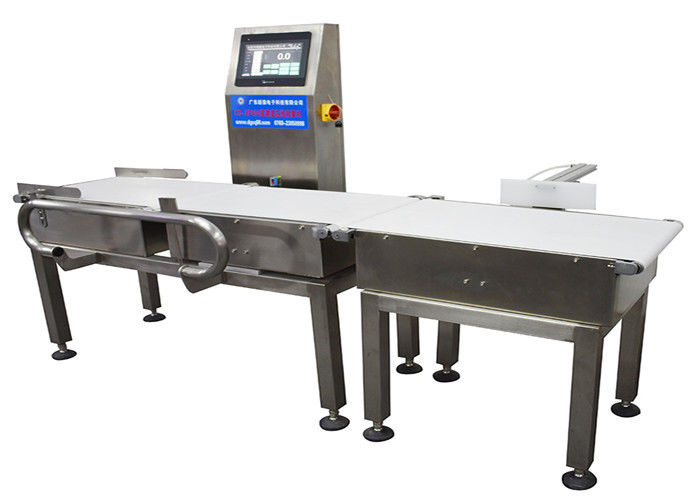

Weight Inspection Machine 316 Stainless Steel Automatic Check Weigher
Application
The online weight check which is widely used in food, medicine, consumable and other industries for packing products to ensure its quality standards. Check weigher substantiates the extensive know-how that the company has accumulated in weighing technology over the years. By including a high-precision weight checking function in the production line, your product quality can improve without any decline in efficiency.
Weight Checking Machine Features
User-friendly features
(1) the preset function of 20 kinds products to meet the multi-product check
(2) 10"color touch screen operation system is simple,intuitive and easy to operate
(3) The weight detection data can be led in computer through U disk
•Easy to clean: detachable belt easy to take apart for cleaning and set up.
•Variable Speed: Speed configurable based on application
•High Speed and Accuracy: equipped with high grade sensor and load cell with ultra-fast processor for excellent accuracy and speed
Model
| No. | Model | Name | Size |
| 1 | XYR-FJA | Check weigher A | Height 750mm |
Machine Parts List
| NO. | Part | Brand | Material |
| 1 | Motor | Chengbang Motor | Aluminium alloy (shell) |
| 2 | Square Roller | 60x60mm | Cast Steel Galvanization |
| 3 | Bearing Block | LK | cast iron |
| 4 | Cylinder | Airtac | Aluminium alloy cylinder |
| 5 | Electromagnetic Valve | Airtac | / |
| 6 | Outrigger | 80x40mm | Carbon Steel Spraying |
| 7 | Beam | Thickness:8mm | Carbon Steel Spraying |
| 8 | Guardrail | Thickness:1.5mm | Stainless Steel |
Technical Parameters
| Specifications | SCW-500 | |
| Detecting Range | 0.5-20 kg | |
| Detecting Accuracy | ±15g | |
| Detecting Speed | 60pieces/min | |
| Segments Number of Sorting | 1 | |
|
Product Size to be Detected |
Width | 100~400mm |
| Length | 35~500mm | |
| Height | 50~300mm | |
| Pressure Requirements | 0.5Mpa | |
| Rejecter | Rejecter Optional | |
| Power Supply | AC220V(Optional) | |
| Main Material | SUS304 | |
Our Advantages
*All machine parts are made of stainless steel 304
*free spare parts
*Strict machine testing before delivery
*Mixing rate and efficient is steady, easy to operate
*12months global warranty
FAQ
Q:Where are your products distributed?
A:Our products are distributed all over the world,main markets are Europe,North America, South America, the united Arab emirates, Africa and so on.
Q:How about your warranty?
A: Our warranty is 12 months. Normally, the general after-sale service may be as below:
The technical support is permanent.
The paid spares parts could be provided at any time.
We have agent in some countries to offer compensable service.
Package
All the products will be strictly quality checked in house before packing.
All the products will be well packed before shipping.
All the products will be packed in wooden cases with preservatives, dryers to prevent seawater corrosion.
Our service
*24h online consultant service
*All machine parts are made of stainless steel 304
*free spare parts
*Strict machine testing before delivery
*Mixing rate and efficient is steady, easy to operate
*12months global warranty
