Product Details:
|
| Tale Height: | 620mm | Width Detection: | 500 Mm |
|---|---|---|---|
| Language: | English Or Customized | Power Supply: | 110v,220v,380v Can Be Customized |
| Protection Degree: | IP30/IP54/IP66 | Max Accuracy: | ±2-5g |
| Machine Material: | 200-500kg | Machine Size (L*W*H): | 1485*1700*1400mm |
| Highlight: | 10kg Online Checkweigher,10kg Checkweigher Machine,Dynamic Online Checkweigher |
||

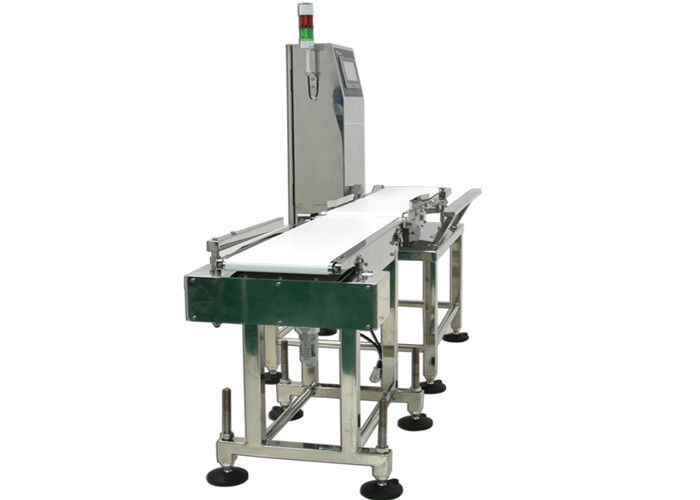

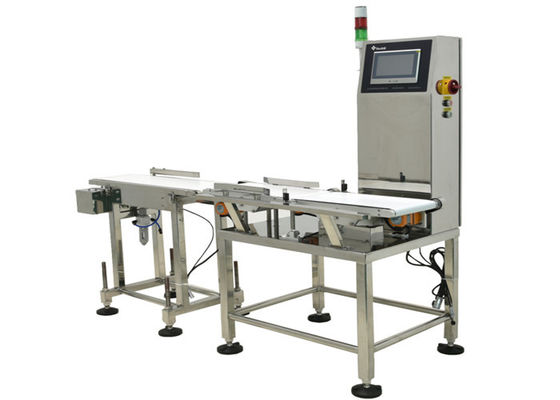

Online Dynamic Check Weigher Machine In Medicine Industry , Stainless Steel
Introduction
Our check weighers can handle various pack types, including bags, trays and cartons and are suitable for most production environments. Innovative modular design makes the checkweigher easy to clean minimizing downtime. Accurate and reliable, it utilizes the latest weighing technology and offer various reject devices best suited to the line configuration.
Weight Checking Machine Features
1. Easy to replace: can store a variety of formulations, convenient for the replacement of product specifications;
2. Simple operation: the use of Weilen color man-machine interface, the whole intelligent, user-friendly design;
3. Easy to maintain: The conveyor belt is easy to disassemble, easy to install, maintain and clean;
4. Adjustable speed: adopt variable frequency control motor, speed can be adjusted according to needs;
5. High-speed, high-precision: adopt the high-precision digital sensors;
6. Zero tracking: can be manually or automatically cleared, and dynamic zero tracking.
Technical Parameters
| Model | SCW-160 | SCW -230S | SCW -230L | SCW -300 | SCW -400 | SCW -500 | |
| Detecting Range | 10~600g | 20~2000g | 20~2000g | 20~5000g | 0.2~10kg | 0.5~20kg | |
| Scale Interval | 0.05g | 0.1g | 0.1g | 0.2g | 1g | 1g | |
| Accuracy | ±0.1g | ±0.2g | ±0.2g | ±0.5g | ±1g | ±2g | |
| Detecting Speed (Max speed) | 250pcs/min | 200pcs/min | 155pcs/min | 140pcs/min | 105pcs/min | 75pcs/min | |
| Belt Speed | 70m/min | 70m/min | 70m/min | 70m/min | 70m/min | 60m/min | |
| The weighed product size | Width | 150mm | 220mm | 220mm | 290mm | 390mm | 490mm |
| Length | 200mm | 250mm | 350mm | 400mm | 500mm | 700mm | |
| Weigher platform size | Width | 160mm | 230mm | 230mm | 300mm | 400mm | 500mm |
| Length | 280mm | 350mm | 450mm | 500mm | 650mm | 800mm | |
| Operation Screen | 12-inch Touch LCD Screen | ||||||
| Product Storage Quantity | 100 kinds | ||||||
| Segments Number of Sorting | 2 or 3 | ||||||
| Rejecter | Rejecter Optional | ||||||
| Power Supply | 220V (Optional) | ||||||
| Degree of Protection | IP30/IP54/IP66 | ||||||
| Body Material | Stainless Steel (SUS304) | ||||||
Machine Parts List
| NO. | Part | Brand | Material |
| 1 | Motor | Chengbang Motor | Aluminium alloy (shell) |
| 2 | Square Roller | 60x60mm | Cast Steel Galvanization |
| 3 | Bearing Block | LK | cast iron |
| 4 | Cylinder | Airtac | Aluminium alloy cylinder |
| 5 | Electromagnetic Valve | Airtac | / |
| 6 | Outrigger | 80x40mm | Carbon Steel Spraying |
| 7 | Beam | Thickness:8mm | Carbon Steel Spraying |
| 8 | Guardrail | Thickness:1.5mm | Stainless Steel |
Our Advantages
*Same model product, compare with other provider, price is cheaper and quality is better
*Engineer available to service overseas
*24h online consultant service
*All machine parts are made of stainless steel 304
*free spare parts
*Strict machine testing before delivery
*Mixing rate and efficient is steady, easy to operate
*12months global warranty
FAQ
Q: How to select the suitable weight checking machine type for your product:
A: Please contact with our people and tell us information: your product sizes(L*W*H), product weighing range(min and max weight), speed(how many bags per hour), rejector needed or not so that we can select the best suitable check weigher for you.
Q: Are you manufacturer or trader? Where are your factory located?
A: We are manufacturer and we are located in Hefei city, Anhui, China.
Q: What kind of Transportation could you provide?And are you able to update the production process Information in time after placing our order?
A: Sea shipping, air Shipping, and international express. And after confirming your order, we would keep you updated of production details of emails and photos.
Q:Where are your products distributed?
A:Our products are distributed all over the world,main markets are Europe,North America, South America, the united Arab emirates, Africa and so on.
Q:How about your warranty?
A: Our warranty is 12 months. Normally, the general after-sale service may be as below:
The technical support is permanent.
The paid spares parts could be provided at any time.
We have agent in some countries to offer compensable service.
Package
Machines are film wrapped and fixed in the exported wooden case. All the wooden cases will be transported to departure port warehouse to wait for loading in container or directly load in the container in our factory. All based on customer’s requirements.
Delivery: 7-15 working days after deposit.
