Product Details:
|
| Power: | 0.75KW | Width Detection: | 500mm |
|---|---|---|---|
| Language: | English Or Customized | Condition: | New |
| User Manual: | English Type | Max Accuracy: | ±2-5g |
| Machine Material: | 200-500kg | Machine Size (L*W*H): | 1485*1700*1400mm |
| Highlight: | Chemical Industry In Line Checkweigher,IP66 In Line Checkweigher,IP66 high speed checkweigher |
||

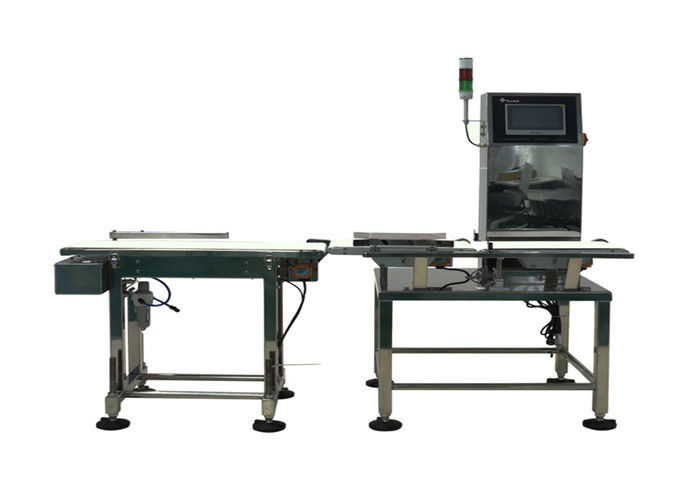

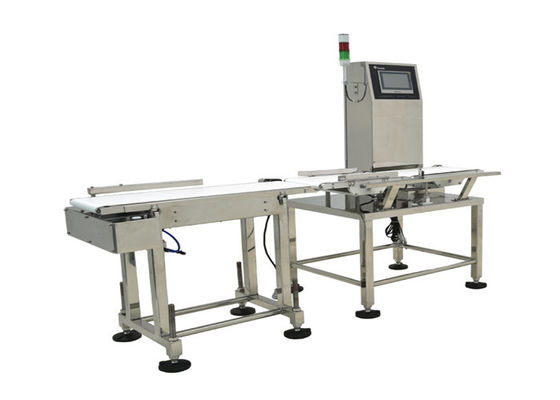

Industrial Precise Check Weigher Machine In Chemical Industry , LCD In Line
Introduction
Check weigher substantiates the extensive know-how that the company has accumulated in weighing technology over the years. By including a high-precision weight checking function in the production line, your product quality can improve without any decline in efficiency. The series provides a whole range of features for handling different products, and incorporate new functions in response to modern necessities.
Machine Parts List
| NO. | Part | Brand | Material |
| 1 | Motor | Chengbang Motor | Aluminium alloy (shell) |
| 2 | Square Roller | 60x60mm | Cast Steel Galvanization |
| 3 | Bearing Block | LK | cast iron |
| 4 | Cylinder | Airtac | Aluminium alloy cylinder |
| 5 | Electromagnetic Valve | Airtac | / |
| 6 | Outrigger | 80x40mm | Carbon Steel Spraying |
| 7 | Beam | Thickness:8mm | Carbon Steel Spraying |
| 8 | Guardrail | Thickness:1.5mm | Stainless Steel |
Machine Features
•Easy Integration: adjustable height, modular design
•Sturdy and robust construction: Stainless Steel 304, built to last
•Easy to use: on board touch screen operating system is easy to use with user password protection
•Easy to clean: detachable belt easy to take apart for cleaning and set up.
•Variable Speed: Speed configurable based on application
•High Speed and Accuracy: equipped with high grade sensor and load cell with ultra-fast processor for excellent accuracy and speed
•Zero Trace: Manual and Automatic Calibration, increase accuracy
Technical Parameters
| Model | SCW-160 | SCW -230S | SCW -230L | SCW -300 | SCW -400 | SCW -500 | |
| Detecting Range | 10~600g | 20~2000g | 20~2000g | 20~5000g | 0.2~10kg | 0.5~20kg | |
| Scale Interval | 0.05g | 0.1g | 0.1g | 0.2g | 1g | 1g | |
| Accuracy | ±0.1g | ±0.2g | ±0.2g | ±0.5g | ±1g | ±2g | |
| Detecting Speed (Max speed) | 250pcs/min | 200pcs/min | 155pcs/min | 140pcs/min | 105pcs/min | 75pcs/min | |
| Belt Speed | 70m/min | 70m/min | 70m/min | 70m/min | 70m/min | 60m/min | |
| The weighed product size | Width | 150mm | 220mm | 220mm | 290mm | 390mm | 490mm |
| Length | 200mm | 250mm | 350mm | 400mm | 500mm | 700mm | |
| Weigher platform size | Width | 160mm | 230mm | 230mm | 300mm | 400mm | 500mm |
| Length | 280mm | 350mm | 450mm | 500mm | 650mm | 800mm | |
| Operation Screen | 12-inch Touch LCD Screen | ||||||
| Product Storage Quantity | 100 kinds | ||||||
| Segments Number of Sorting | 2 or 3 | ||||||
| Rejecter | Rejecter Optional | ||||||
| Power Supply | 220V (Optional) | ||||||
| Degree of Protection | IP30/IP54/IP66 | ||||||
| Body Material | Stainless Steel (SUS304) | ||||||
Our Service
*Same model product, compare with other provider, price is cheaper and quality is better
*Engineer available to service overseas
*24h online consultant service
*All machine parts are made of stainless steel 304
*free spare parts
*Strict machine testing before delivery
*Mixing rate and efficient is steady, easy to operate
*12months global warranty
FAQ
Q: How to select the suitable weight checking machine type for your product:
A: Please contact with our people and tell us information: your product sizes(L*W*H), product weighing range(min and max weight), speed(how many bags per hour), rejector needed or not so that we can select the best suitable check weigher for you.
Q:Where are your products distributed?
A:Our products are distributed all over the world,main markets are Europe,North America, South America, the united Arab emirates, Africa and so on.
Q:How about your warranty?
A: Our warranty is 12 months. Normally, the general after-sale service may be as below:
The technical support is permanent.
The paid spares parts could be provided at any time.
We have agent in some countries to offer compensable service.
Package
Machines are film wrapped and fixed in the exported wooden case. All the wooden cases will be transported to departure port warehouse to wait for loading in container or directly load in the container in our factory. All based on customer’s requirements.
