Product Details:
|
| Machine Size (L*W*H): | 1485*1700*1400mm | User Manual: | English Type |
|---|---|---|---|
| Detection Way: | Auto Alarm + Pneumatic Removing | Protection: | IP30/IP54 |
| Max Accuracy: | ±2-5g | Origin: | Hefei, China |
| Voltage: | 220V, 50 Hz | Original Certificate: | Provided |
| Highlight: | 220V Check Weigher Machine,IP30 Check Weigher Machine,IP30 check weighing machine |
||

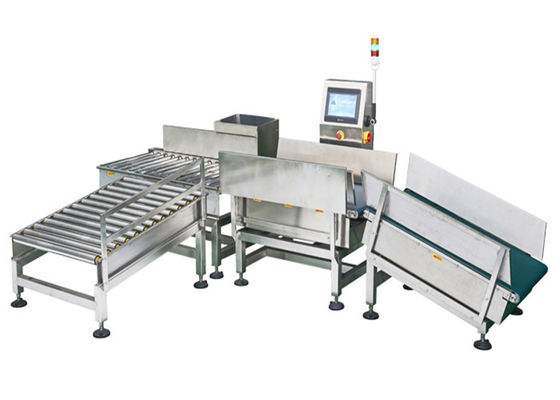

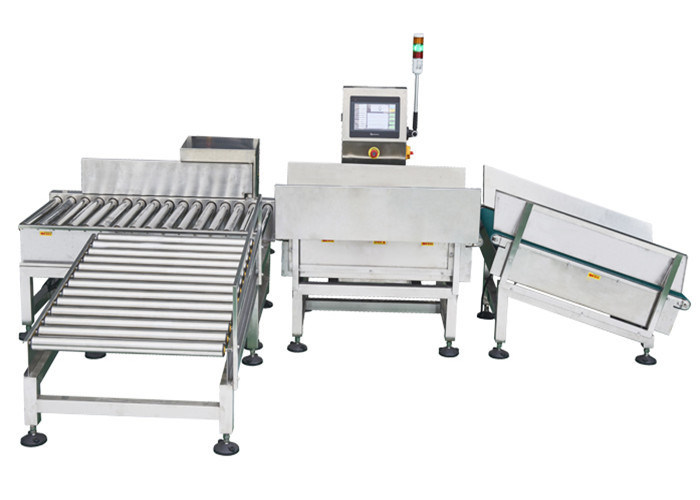

Substandard Goods Inspection , Weight Check Machine In Food Processing Industry
Brief Description
Check weigher substantiates the extensive know-how that the company has accumulated in weighing technology over the years. By including a high-precision weight checking function in the production line, your product quality can improve without any decline in efficiency. The series provides a whole range of features for handling different products, and incorporate new functions in response to modern necessities.
Machine Parts List
| No. | Name | Brand/Model | Material |
| 1 | Motor | CPG | Aluminum (shell) |
| 2 | Belt | Zhenjie | PVC |
| 3 | Bearing block | LK | Cast iron |
| 4 | Outrigger | Square tube 50x50 | Carbon steel spray |
| 5 | Beam frame | Bending plate, thickness 3mm | Stainless steel |
| 6 | Main roller | Eagle, Diameter φ58 | Carbon steel spray anti-rust paint |
| 7 | Driven roller | Eagle, Diameter φ58 | Carbon steel spray anti-rust paint |
| 8 | Guardrail | Bent plate, thickness 1.5mm | Stainless steel 201 |
| 9 | Touch screen | Saimo | |
| 10 | Sensor | HBM |
Technical Parameters
| Model | SCW06A/B/C | SCW20A/B/C | SCW30A/B/C | SCW60A/B/C |
| Scope | 6g-600g | 50g-2000g | 100g-3000g | 100g-6000g |
| Accuracy | ±0.4g | ±0.5g | ±1g | ±4g |
| Max. throughput | 200 ppm | 150 ppm | 120 ppm | 60 ppm |
| Belt Length(mm) | 220,300 | 300,400 | 400,500 | 600,800 |
| Belt Width(mm) | 150,200 | 200,250 | 250,300 | 400,500 |
| Table Height(mm) | 600-1000 | 600-1000 | 600-1000 | 600-1000 |
Model
| No. | Model | Name | Size |
| 1 | XYR-FJA | Check weigher A | Height 750mm |
Principal Feature
Adopt imported high sensitivity sensor, high speed, high sensitivity, high stability
Full color touch screen system, simple intuitive and easy to operate User friendly Touch Screen Controller
Water-proof and dustproof IP30/IP66 optional.
Stainless steel construction, built-in hinge design, easy to clean Automatic parameter adjustment, simply input the product parameters and weighing requirements
FAQ
Q: Is it possible to add checkweighers to the present packaging line? Will there be connecting problems?
A: It will be no problem to equip our checkweigher with your present packaging line. The conveying height is customizable.
Q: How to reject unqualified product?
A: There are two modes. One is to stop with alarm until the unqualified product is taken away manually. The other is to reject it automatically by a rejection mechanism (pushing/ swing/ sliding, blowing) which is equipped at the end of conveying belt via a signal from the checkweigher.
Q:Which port is the nearest ?
A:Shanghai, Ningbo, Guangzhou, Shenzhen
Q:What's your lead time ?
A:Normally 20-30 days after we receive your deposit.
Q:Logistics?
A:1.Sea Shipment;
2.Air Shipment;
3.Transport by car or train;
4.Express:DHL,UPS,TNT.
Our Service
Technical support (Skype, Email, Whatsapp, Wechat, Mobile etc.)
Information for shipping (weight, CBM, Loading port and destination port)
Installation guide (online video, user manual in English, drawing etc.)
One-year free warranty. Within warranty period, the replacement of spare parts is provide by us freely.
Welcome for your visit and training on our factory if required.
Package
All the products will be strictly quality checked in house before packing.
All the products will be well packed before shipping.
All the products will be packed in wooden cases with preservatives, dryers to prevent seawater corrosion.
