Product Details:
|
| Power: | 3 KW | Accuracy Weighing: | ±0.3-0.5% |
|---|---|---|---|
| Frequency: | 50 / 60 Hz | Packing Capacity: | 3-5 Bags / Minute |
| Bag Sealing Type: | Stitching / Heat Sealed / Folding Sealing | Weighing Controller: | Germain System |
| Air Pressure: | 0.4-0.6 Mpa | Hopper: | 304 SS With Material Level |
| Highlight: | Wood Pellet Bagging Machine,Agricultural Industry Pellet Bagging Machine,3KW Pellet Bagging Machine |
||

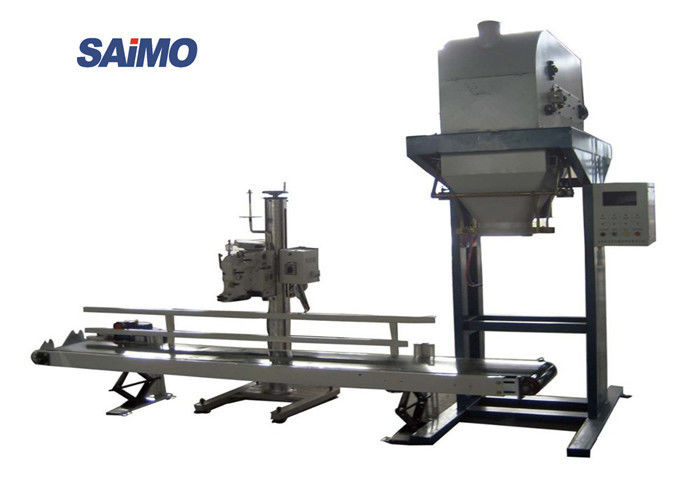

Wood Pellets Bagging Machine Packing Scale In Agricultural Industry
Brief Introduction
The semi-automatic bag packing machine can quickly and efficiently fill bags with flakes, powders and granular products up to 8 bags per minute. Each bag filling machine can operate independently or as a part of a complete packaging system with conveyors, palletizers, palletizing robots and stretch wrappers.
Scope of Application
High-speed quantitative separation of crystals, granules, loose and small pieces of materials with good fluidity in fertilizer, agrochemical, feed, chemical raw materials, plastic granules, seeds, grain, sugar and other industries.
Features
1. The special mode of belt feeding with three kinds of speeds (fast,medium,and slow).
2.Reliable function and easy to be installed.
3.Matched with sewing machine and conveyor, which can achieve the sealing packing.
4.The control cabinet is sealed and suitable for harsh dust environment;
5. Automatic correction of material tolerance, automatic tracking of zero-point, overshoot detection and suppression, excessive over-under alarm;
6. Optional: you can randomly choose folding machine, automatic sealing machine, dust removal unit and other devices.
Working Principle
Bag supplied & clamped by manual ---automatic wighing ---automatic filling---automatic Bag conveyer ---automatic bag sewing
Technical Parameters
| Product Name | High Quality packing machine |
| Packing Material | Wood/plastic/paper etc. |
| Application Materials | animal feed, granule fertilizer, urea, seed, rice, sugar, beans, corn, peanut, wheat, PP, PE, plastic particles, almond, nuts, silica sand etc. |
| Display Resolution | 5g, 10g |
| Weighing Range | 10-50kg/bag or customized needs |
| Precision | +/-(0.2-0.5)% FS |
| Packing Capacity | 200-300bags/hour or faster |
| Dimension(L*W*Hmm) | See detailed drawing, the size can be customized according to your site |
| Power Supply | AC220V/380V, 50HZ, 1P/3P |
| Air Source | 0.4-0.6 Mpa |
| Power | 2.2KW |
| Working Temperature | -10~40 ℃ |
Our Service
After-sales Service
1) Highly inspecting equipment in every working procedure, quality comes first; Fast & Safe Delivery;
2) Assisting our clients for foundation construction of equipment;
3) Dispatching engineers to install and debug equipment;
4) Training the first-line operators on site;
5) Regularly visit clients to solve production problems;
6) Providing life-long maintenance service;
7)Providing technical exchanging
Pre-sales Service
1) Offering comprehensive technical and business consultation services;
2) Proposing the most suitable scheme and equipment for our clients;
3) Designing and fabricating targeted products according to the special requirements of clients;
4) Training periodically high qualified service technician.
Packaging and Shipping
Semi-automatic bag packing machine is usually be packed with plastic films to avoid the cashing or bumping and then it will be loaded into standard export wooden boxes.
