Product Details:
|
| Power: | 3-5 KW | Accuracy Weighing: | ±0.1-0.5% |
|---|---|---|---|
| Frequency: | 50 / 60 Hz | Packing Capacity: | 3-5 Bags / Minute |
| Bag Sealing Type: | Stitching / Heat Sealed / Folding Sealing Etc. | Weighing Controller: | Germain System Or Customized |
| Air Pressure: | 0.4-0.6 Mpa | Hopper: | 304 SS With Material Level |
| Highlight: | Agricultural Industry Pellet Making Equipment,5KW Pellet Making Equipment,Agricultural Industry Pellet Packaging Equipment |
||

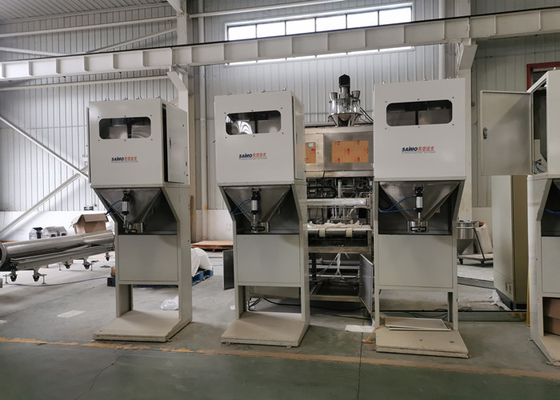

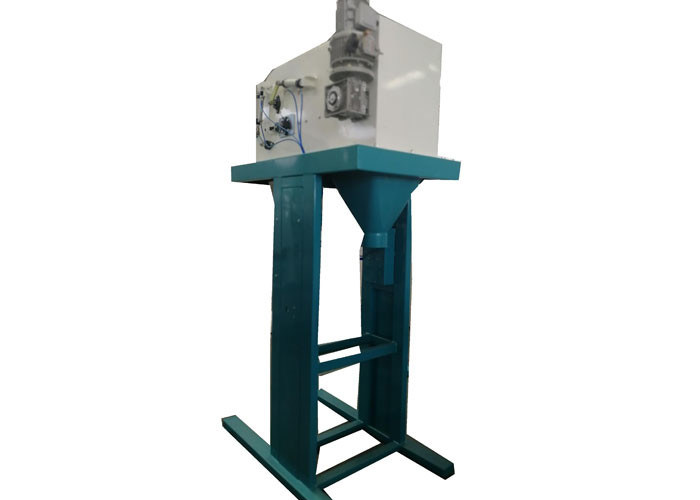

Pellet Paging Equipment Packing Scale And Packaging System In Agricultural Industry
Brief Introduction
The unit consists of the ration automatic packing scale and the selecting and matching parts: conveyer, the hemming machine and the heat seal machine. It uses conveyer to feed the material, and the feed gearing is suitable for a comparatively worse fluidity of powdery material and grainy material. The main component parts are: conveyer, weighing and clamping box, the computer control, and pneumatic actuator.
Features
1. The special mode of belt feeding with three kinds of speeds (fast,medium,and slow).
2. Reliable function and easy to be installed.
3. Matched with sewing machine and conveyor, which can achieve the sealing packing.
4. The control cabinet is sealed and suitable for harsh dust environment;
5. Automatic correction of material tolerance, automatic tracking of zero-point, overshoot detection and suppression, excessive over-under alarm;
6. Optional: you can randomly choose folding machine, automatic sealing machine, dust removal unit and other devices.
Scope of Application
Applicable to fertilizer powder, lime powder, mineral powder, glucose powder, zinc oxide, calcium chloride, cellulose powder and other kinds of illiquid quantitative packaging powder or powder and granular materials.
Working Principle
Bag supplied & clamped by manual ---automatic wighing ---automatic filling---automatic Bag conveyer ---automatic bag sewing
Technical Parameters
| Product Name | High Quality packing machine |
| Packing Material | Wood/plastic/paper etc. |
| Application Materials | animal feed, granule fertilizer, urea, seed, rice, sugar, beans, corn, peanut, wheat, PP, PE, plastic particles, almond, nuts, silica sand etc. |
| Display Resolution | 5g, 10g |
| Weighing Range | 10-50kg/bag or customized needs |
| Precision | +/-(0.2-0.5)% FS |
| Packing Capacity | 200-300bags/hour or faster |
| Dimension(L*W*Hmm) | See detailed drawing, the size can be customized according to your site |
| Power Supply | AC220V/380V, 50HZ, 1P/3P |
| Air Source | 0.4-0.6 Mpa |
| Power | 2.2KW |
| Working Temperature | -10~40 ℃ |
Our Service
After-sales Service
1) Highly inspecting equipment in every working procedure, quality comes first; Fast & Safe Delivery;
2) Assisting our clients for foundation construction of equipment;
3) Dispatching engineers to install and debug equipment;
4) Training the first-line operators on site;
5) Regularly visit clients to solve production problems;
6) Providing life-long maintenance service;
7)Providing technical exchanging
Pre-sales Service
1) Offering comprehensive technical and business consultation services;
2) Proposing the most suitable scheme and equipment for our clients;
3) Designing and fabricating targeted products according to the special requirements of clients;
4) Training periodically high qualified service technician.
Packaging and Shipping
Semi-automatic bag packing machine is usually be packed with plastic films to avoid the cashing or bumping and then it will be loaded into standard export wooden boxes.
Why Choose Us
15 years of experience in production research and development.
Ten years of experience in import and export.
Exports to more than 91 countries and regions.
