Product Details:
|
| Accuracy: | ±0.1-0.5% | Free Air Capacity: | 0.1 M3 / Min |
|---|---|---|---|
| Packing Speed: | 180-300 BPH | Bag Sealing Type: | Stitching / Heat Sealing / Folding Sealing |
| Operator Required: | One Worker To Hold Bag Mouth | Power: | 3 KW |
| Discharge Pressure: | 0.4-0.6 Mpa | Load Cell: | Toledo / Customized |
| Highlight: | 0.1 M3 / Min Weighing Bagging Machine,25kg Hopper Weighing Bagging Machine,180 BPH Weighing Bagging Machine |
||

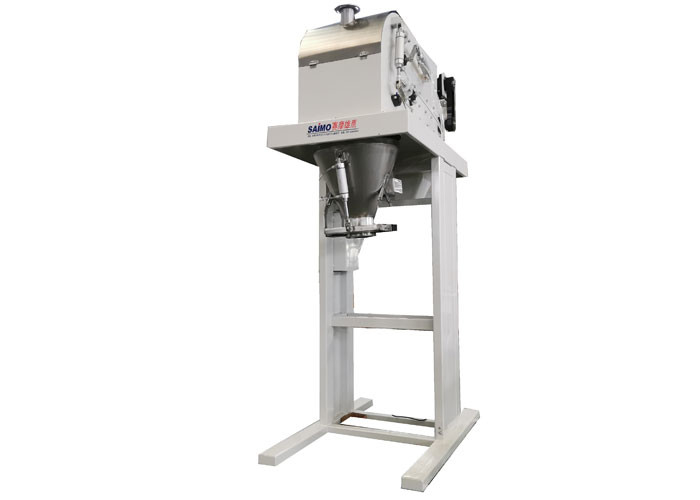

EAGLE Belt Feeding CE 25kg Hopper Weighing Bagging Machine For Pellet Granule
Features
Adopts belt conveying feed mechanism and anti-blocking device, which can ensure uniform feed and make speed and accuracy reach the optimum;
The weighing system is controlled centrally by control cabinet and is designed according to IP54(dustproof and waterproof) requirement
This unit consists of fully automatic weighing machine, conveyor
Options: multiple devices available for selection (conveyor, air pump etc.)
Such equipment with smaller metering range can be designed and tailor-made.
Working Principle
This series of units are mainly designed for materials with poor fluidity and dual-purpose powder and granule packaging. Using belt feeding method, after the graded feeding into the weighing hopper or packaging bag, the feeding belt stops feeding when the packaging material reaches the set value. The bag gripper opens automatically, the material bag is sent away by a conveyor belt, and the bag is sealed by manual assistance.
Technical Parameters
| Nos | Item | Parameter |
| 1 | Product form | Granule |
| 2 | Bag Form |
Pre-made bag (the bag required single layer bag and the is easy to be sucked by suction cup) |
| 3 | Woven Bag Size | 1000MM×500MM(L×W) |
| 4 | Speed | 5-12bag/min |
| 5 | Weight | 5-25kg/bag |
| 6 | Acceptance Rate of Sewing Bag | ≥99.9% |
| 7 | Noisy | ≤70Db |
| 8 | Power | 5.5KW AC380V±10% 50Hz |
| 9 | Air Pressure | ≥5kg/cm2 |
| 10 | No. of Spare Bag | 40~80 bag |
| 11 | Max. Air consumption | 0.5M3/min |
Brief Introduction
The automatic granule packing machine adopts microcomputer control, which is easy to operate, stable, fast and accurate; it has functions such as precise weighing sensor, energy-saving components, automatic error correction, etc.; suitable for whole grains, various teas, powders of Chinese medicine, and seasonings, etc.
Main Using
It is suitable for rationing package of the powdery or particulate material in the food, grain, feed, and chemical industry etc. (For example, the bean pulp, linter pulp, mixture, chemical powder, bran and powdery grains etc.)
After-Sale Service
High inspecting equipment in every working procedure, quality comes first.
Fast & safety delivery.
Assisting our clients for foundation construction of equipment.
Dispatching our engineers to install and debug the machines.
Training the first-line operators on site.
Providing life-long maintenance service.
Provide technical exchanging.
Packaging and Shipping
1.We always use standard export wooden packing, carton box.
2.You can choose express, by air, by train or by sea. Always we will give our best recommend based on our experience.
3.We cooperate with China best shipping company to get best price and fast delivery.
4. You will get full feedback when your machine is on the way.
FAQ
Q: Is your machine easy operation?
A: Yes, very easy. We will supply you the User Manual in English to guide your operation and all the button and controller will be in English. Also welcome your visit our factory to learn.
Q: How long your machine can work?
8-12 hours per day, 8-10 years with few quick-wear components replacement.
Q: Installation service overseas available?
A: Yes, available. About our engineer’s transportation, accommodation etc. details, talk with us please.
