Product Details:
|
| Electrical Components: | AirTAC Brand | Capacity: | 300-500 Bags Per Hour |
|---|---|---|---|
| HS CODE: | 8422400000 | Discharge Pressure: | 0.7Mpa |
| Motor Power: | Normally 0.75KW | Weighing Sensor: | Telode Brand |
| Way To Change Package Weight: | By Changing Formula In Controller | Display Type: | Touch Screen/buttons |
| Highlight: | 25kg Fertilizer Pellet Packaging Machine,0.75KW Pellet Packaging Machine,25kg Fertilizer Pellet Packing Machine |
||

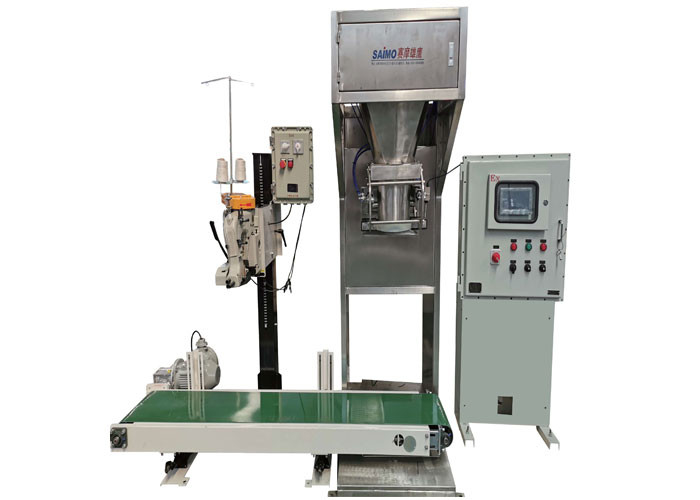

Open Mouth Bags 25kg Fertilizer Pellet Packaging Machine In Chemical Industry
Scope of Application
High-speed measuring and sub-packaging for fertilizer, agrochemical, feed stuff, chemical material, sugar industries that contains certain moisture or loose, sticky, loose stripe-type, fiber, as material sizes below 10cm in the shape of flake, ball, out-of-shape type with varied states.(e.g. fertilizer, compound fertilizer, bagasse, sawdust, ores, manure, flaky brimstone)
Working Principle

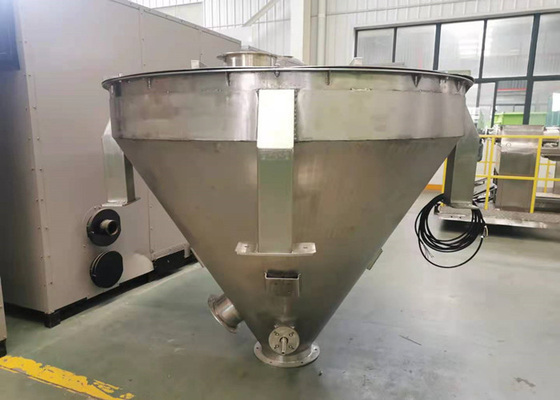

Material is fed into surge bin through customer’s hopper. The homogenizing system in surge bin agitates the material to vent the gas contained in material out of the bin to prevent bridge forming during packing process. Material is then filled into bags through screw which is controlled by frequency convertor. When reaching the target value, feeding section stops and the filled bag is ready to be manually or automatically discharged. The machine is ready for a new filling circle.
Features
This series packaging machine can be matched with feeder, hopper, bag filter, conveyor, bag sewing machine, and air compressor etc. You can order fertilizer packaging machine with factory price here
Brief Introduction
The belt pellet packing machine is applied to quantitative automatic weighing, filling, kneading, accumulating weigh and times, stitching and conveying with manual assistant for special material such as pellet shape.
Generally, the quantitative filling machine includes packing scales, sack closer, and belt conveyor these three parts.
Technical Parameters
| Nos | Item | Parameter |
| 1 | Product form | Granule |
| 2 | Bag Form |
Pre-made bag (the bag required single layer bag and the is easy to be sucked by suction cup) |
| 3 | Woven Bag Size | 1000MM×500MM(L×W) |
| 4 | Speed | 5-12bag/min |
| 5 | Weight | 5-25kg/bag |
| 6 | Acceptance Rate of Sewing Bag | ≥99.9% |
| 7 | Noisy | ≤70Db |
| 8 | Power | 5.5KW AC380V±10% 50Hz |
| 9 | Air Pressure | ≥5kg/cm2 |
| 10 | No. of Spare Bag | 40~80 bag |
| 11 | Max. Air consumption | 0.5M3/min |
After-sales Service
1) Highly inspecting equipment in every working procedure, quality comes first; Fast & Safe Delivery;
2) Assisting our clients for foundation construction of equipment;
3) Dispatching engineers to install and debug equipment;
4) Training the first-line operators on site;
5) Regularly visit clients to solve production problems;
6) Providing life-long maintenance service;
7)Providing technical exchanging
Packaging and Shipping
1. The machine is PE film winding to protect machine off corrosive and rust;
2. The machine is well wire tighten to protect machine off damage in shipping container;
3. Export standard plywood case, composite material, fumigation-free;
4. With easy lifting corn by the forklift.
FAQ
Q: About the machine voltage or power of machine?
A: Usually in our country is 220v,50hz, single phase, or 380v, 50hz, 3 phase. if you have the special requirement, pls tell us, we will vetify the voltage according to your requirement.
Q: When can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
Q: Can you guarantee your product quality?
A: Of course. We are the manufacture factory. More important, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
