Product Details:
|
| Power: | 3 KW | Accuracy: | 0.2-0.5% |
|---|---|---|---|
| Packing Speed: | 180-300 Bags / Hour | Bag Sealing Type: | Stitching / Heat Sealing / Folding Sealing |
| Frequency: | 50 / 60 Hz | Discharge Pressure: | 0.4-0.6 Mpa |
| Hopper: | 304 SS With Material Level | Weighing Controller: | Germain System |
| Highlight: | Fertilizer Pellet Bagging Machine,Compound Pellet Bagging Machine,Weighing Pellet Bagging Machine |
||

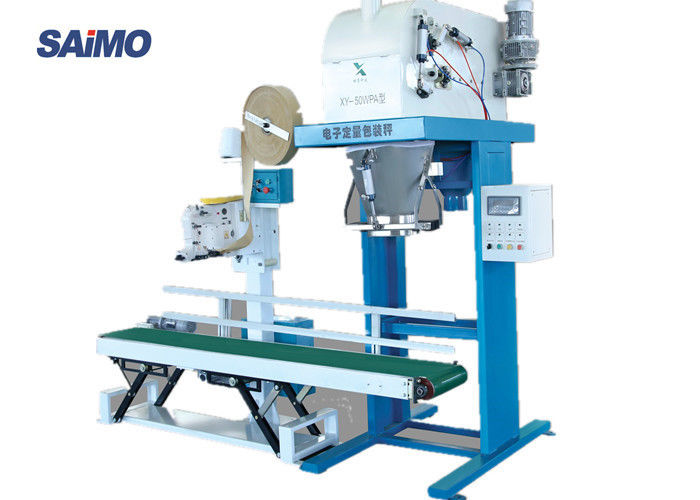

Weighing Controller Compound Fertilizer Packing Machine In Feed Industry
Brief Introduction
The belt packing machine is composed of the automatic quantitative packing scale (including storage hopper, feeder, weighing bucket bag clamping, kneading mechanism, computer control, pneumatic components, etc.) and the optional part(including conveyor machine, sewing machine or welding machine). It adopts screw or belt feeding, and the material is forced out by the feeding mechanism.
Low dust and high accuracy are the advantages of this series. Suitable materials include: Flour, Titanium, Alumina, Kaolin, Lime Carbonate, Bentonite, Dry mortar, etc.
Main Using
Semi-automatic bag packing machine and System can be used for Refractory Plant, Chemical Fertilizer Plant, flour Mill, Iron Plant, Steel Plant, dry Powder mortar Factory, cement Plant, bulk material Factory, Building material Factory, Premix Factory, etc.
The types of materials be packed: aggregate, stone, minerals, agriculture, feed, seed, cement, concrete, chemical, food, ingredients, landscaping products and more.
A variety of bags are acceptable, including Poly, Poly woven Laminate, Paper, Paper/Poly Lined, Pillow Side Gusset or Pinch style.
Features
1. High precision: With high precision weighing controller, good stability.
2. Good integrity: Small footprint, flexible installation.
3. Adjustable speed: The feeding mode of powder materials equipment is screw feeding, fast adding and slow feeding is realized by controller, and feeding speed can be arbitrarily set.
4. Environmental protection: Closed internal circulation system, effectively prevent dust flying, improve the working environment, and protect the health of operating personnel.
5.The special mode of belt feeding with three kinds of speeds (fast,medium,and slow).
6.Reliable function and easy to be installed.
7.Matched with sewing machine and conveyor, which can achieve the sealing packing.
Working Principle
Bag supplied & clamped by manual ---automatic wighing ---automatic filling---automatic Bag conveyer ---automatic bag sewing
Technical Parameters
| Product Name | High Quality packing machine |
| Packing Material | Wood |
| Application Materials | animal feed, granule fertilizer, urea, seed, rice, sugar, beans, corn, peanut, wheat, PP, PE, plastic particles, almond, nuts, silica sand etc. |
| Display Resolution | 5g, 10g |
| Weighing Range | 10-50kg/bag or customized needs |
| Precision | +/-(0.2-0.5)% FS |
| Packing Capacity | 200-300bags/hour or faster |
| Dimension(L*W*Hmm) | See detailed drawing, the size can be customized according to your site |
| Power Supply | AC220V/380V, 50HZ, 1P/3P |
| Air Source | 0.4-0.6 Mpa |
| Power | 2.2KW |
| Working Temperature | -10~40 ℃ |
| Relative Humidity | ≤90% RH(Non condensing) |
Our Service
After-sales Service
1) Highly inspecting equipment in every working procedure, quality comes first; Fast & Safe Delivery;
2) Assisting our clients for foundation construction of equipment;
3) Dispatching engineers to install and debug equipment;
4) Training the first-line operators on site;
5) Regularly visit clients to solve production problems;
6) Providing life-long maintenance service;
7)Providing technical exchanging
Pre-sales Service
1) Offering comprehensive technical and business consultation services;
2) Proposing the most suitable scheme and equipment for our clients;
3) Designing and fabricating targeted products according to the special requirements of clients;
4) Training periodically high qualified service technician.
Packaging and Shipping
Semi-automatic bag packing machine is usually be packed with plastic films to avoid the cashing or bumping and then it will be loaded into standard export wooden boxes.
Why Choose Us
We can also offer powder/granule conveying, mixing, packing and sealing machines, stock bins, conveyor belts, bag sewing machine for production lines.
You can choose machine material as your demand: Carbon steel, Full stainless steel 304/316L, or Raw material contact parts are stainless steel, for option.
