Product Details:
|
| Free Air Capacity: | 0.1 M3 / Min | Discharge Pressure: | 0.6 Mpa |
|---|---|---|---|
| Display Type: | Touch Screen/buttons | Trademark: | EAGLE |
| Packing Speed: | 180-350 Bags / Hour | Machine Material: | SUS / Carbon Steel |
| Weighing Accuracy: | ±0.2-0.5% | Certification: | CE |
| Highlight: | 20kg Pellet Bagging Machine,20kg pellet bagging equipment,20kg fertilizer bagging equipment |
||

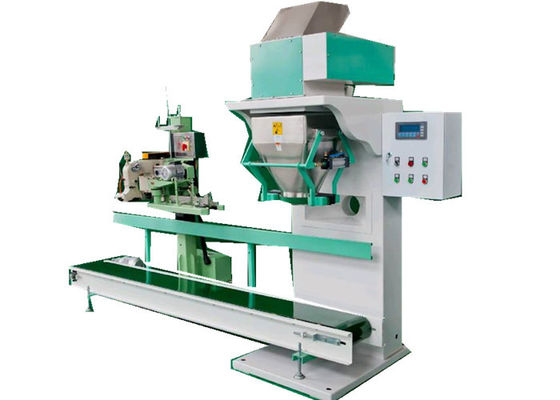

Dustproof Granule Fertilizer Packaging Machine In Planting Industry
Features
Use the method of weighing with a bucket;
Adopting multi-stage feeding mechanism, the weighing range is wide, and the speed and precision of the maximum and minimum weighing can be guaranteed.
The weighing control system is designed according to the requirements of IP54 (dustproof and waterproof).
The unit is composed of automatic weighing machine, conveyor, sewing machine and automatic control box.
Choose and purchase devices: various devices are freely selected (conveyor, sewing machine, air pump).
Machine Parts List
Controller: The touch screen operation panel, English / Chinese language change over, much convenient in practice.
Sealing machine: We have the heat sealing and bag sewing machine for customer’s optional. Heat sealing machine is suitable for PE/PET sack bag, the sewing machine is suitable for woven bag and paper bag etc.
Technical Parameters
| Weighing range | 10-50kg |
| Drive Mode | Inverter-driven motor |
| Weighing Accuracy | ≤±0.2-0.5% |
| Weighing rate | 4-6 bags/minute |
| Power/current | 3Kw/9A |
| Metering mode | Suspension sensor |
| Air Supply Pressure | 0.4-0.6Mpa |
| Frequency/voltage | 50Hz 60Hz /220V 380V (can as your requirement) |
| Power supply mode | 3-phase 5-wire system |
| External dimension(L*w*H) | 4200*2000*3000(mm) |
Introduction
This series of machines are designed for packing powders, flaked materials into open mouth bags.
Low dust and high accuracy are the advantages of this series. Suitable materials include: Flour, Titanium, Alumina, Kaolin, Lime Carbonate, Bentonite, Dry mortar, etc.
Main Using
It is suitable for rationing package of the powdery or particulate material in the food, grain, feed, and chemical industry etc. (For example, the bean pulp, linter pulp, mixture, chemical powder, bran and powdery grains etc.)
Packaging and Shipping
1.We always use standard export wooden packing, carton box.
2.You can choose express, by air, by train or by sea. Always we will give our best recommend based on our experience.
3.We cooperate with China best shipping company to get best price and fast delivery.
4. You will get full feedback when your machine is on the way.
After-sales Service
1) Highly inspecting equipment in every working procedure, quality comes first; Fast & Safe Delivery;
2) Assisting our clients for foundation construction of equipment;
3) Dispatching engineers to install and debug equipment;
4) Training the first-line operators on site;
5) Regularly visit clients to solve production problems;
6) Providing life-long maintenance service;
7)Providing technical exchanging
FAQ
Q: How could I choose the right packing machine?
A: We have various item of packing machine to suit for pack different materials(products), just let me know your product and requirement, we will choose the suitable item and make a drawing for you to confirm. Also, your customize design are available, we have more than 10 person engineers team and R&D team.
Q: About the machine voltage or power of machine?
A: Usually in our country is 220v,50hz, single phase, or 380v, 50hz, 3 phase. if you have the special requirement, pls tell us, we will vetify the voltage according to your requirement.
