Product Details:
|
| Weighing Accuracy: | ±0.2-0.5% | Packing Speed: | 180-300 Bags / Hour |
|---|---|---|---|
| Free Air Capacity: | 0.1 M3 / Min | Discharge Pressure: | 0.7Mpa |
| Trademark: | EAGLE | Display Type: | Touch Screen/buttons |
| Certification: | CE | Machine Material: | SUS / Carbon Steel |
| Highlight: | 50kg Wood Pellet Bagging Machine,50kg wood pellet packing machine,50kg pellet bagging equipment |
||

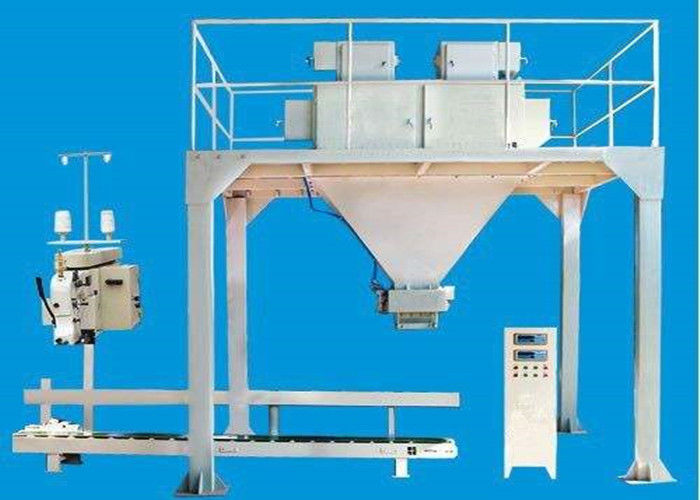

Self-Installed 3 Phase Plastic Particles Packing Scale In Provisions Industry
Working Principle
The materials will through the feeding parts(connect hopper) into the belt feeder then into the weighing hopper, the weighing hopper installation load cell to weighing, manual giving the bag to the packing machine bag clamp device and touch the sensor, the bag will automatic clamped, the finished weighing materials discharge into the bag, bag release and on conveyor to the sewing machine for bag closed by thread stitching.
Technical Parameters
| Product Name | High Quality packing machine |
| Packing Material | Wood |
| Application Materials | animal feed, granule fertilizer, urea, seed, rice, sugar, beans, corn, peanut, wheat, PP, PE, plastic particles, almond, nuts, silica sand etc. |
| Display Resolution | 5g, 10g |
| Weighing Range | 10-50kg/bag or customized needs |
| Precision | +/-(0.2-0.5)% FS |
| Packing Capacity | 200-300bags/hour or faster |
| Dimension(L*W*Hmm) | See detailed drawing, the size can be customized according to your site |
| Power Supply | AC220V/380V, 50HZ, 1P/3P |
| Air Source | 0.4-0.6 Mpa |
| Power | 2.2KW |
| Working Temperature | -10~40 ℃ |
| Relative Humidity | ≤90% RH(Non condensing) |
Brief Introduction
This series of machines are designed for packing powders, flaked materials into open mouth bags.
Low dust and high accuracy are the advantages of this series. Suitable materials include: Flour, Titanium, Alumina, Kaolin, Lime Carbonate, Bentonite, Dry mortar, etc.
Main Using
It is suitable for rationing package of the powdery or particulate material in the food, grain, feed, and chemical industry etc. (For example, the bean pulp, linter pulp, mixture, chemical powder, bran and powdery grains etc.)
Features
Use the method of weighing with a bucket;
Adopting multi-stage feeding mechanism, the weighing range is wide, and the speed and precision of the maximum and minimum weighing can be guaranteed.
The weighing control system is designed according to the requirements of IP54 (dustproof and waterproof).
The unit is composed of automatic weighing machine, conveyor, sewing machine and automatic control box.
Choose and purchase devices: various devices are freely selected (conveyor, sewing machine, air pump).
Machine Parts List
Controller: The touch screen operation panel, English / Chinese language change over, much convenient in practice.
Sealing machine: We have the heat sealing and bag sewing machine for customer’s optional. Heat sealing machine is suitable for PE/PET sack bag, the sewing machine is suitable for woven bag and paper bag etc.
Packaging and Shipping
1.We always use standard export wooden packing, carton box.
2.You can choose express, by air, by train or by sea. Always we will give our best recommend based on our experience.
3.We cooperate with China best shipping company to get best price and fast delivery.
4. You will get full feedback when your machine is on the way.
After-sales Service
1) Highly inspecting equipment in every working procedure, quality comes first; Fast & Safe Delivery;
2) Assisting our clients for foundation construction of equipment;
3) Dispatching engineers to install and debug equipment;
4) Training the first-line operators on site;
5) Regularly visit clients to solve production problems;
6) Providing life-long maintenance service;
7)Providing technical exchanging
