Product Details:
|
| Accuracy: | ±0.2-0.5% | Packing Speed: | 180-300 Bags / Hour |
|---|---|---|---|
| Free Air Capacity: | 0.1 M3 / Min | Bag Sealing Type: | Stitching / Heat Sealing / Folding Sealing |
| Machine Material: | SUS / Carbon Steel | Trademark: | EAGLE |
| Discharge Pressure: | 0.4-0.6 Mpa | Certification: | CE |
| Highlight: | 20kg Fertilizer Packaging Machine,3KW Fertilizer Packaging Machine,20kg fertilizer bagging machine |
||

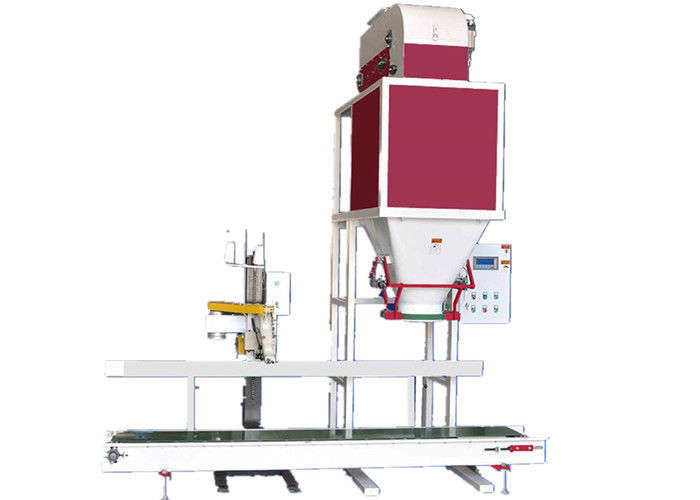

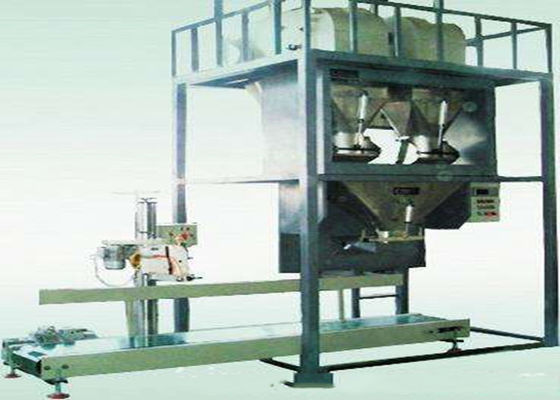

3KW Fertilizer Packing Machine In Agriculture Industry , 20 Kg Craft Paper Bags
Working Principle
This series of units are mainly designed for materials with poor fluidity and dual-purpose powder and granule packaging. Using belt feeding method, after the graded feeding into the weighing hopper or packaging bag, the feeding belt stops feeding when the packaging material reaches the set value. The bag gripper opens automatically, the material bag is sent away by a conveyor belt, and the bag is sealed by manual assistance.
Technical Parameters
| Product Name | High Quality packing machine |
| Packing Material | Wood |
| Application Materials | animal feed, granule fertilizer, urea, seed, rice, sugar, beans, corn, peanut, wheat, PP, PE, plastic particles, almond, nuts, silica sand etc. |
| Display Resolution | 5g, 10g |
| Weighing Range | 10-50kg/bag or customized needs |
| Precision | +/-(0.2-0.5)% FS |
| Packing Capacity | 200-300bags/hour or faster |
| Dimension(L*W*Hmm) | See detailed drawing, the size can be customized according to your site |
| Power Supply | AC220V/380V, 50HZ, 1P/3P |
| Air Source | 0.4-0.6 Mpa |
| Power | 2.2KW |
| Working Temperature | -10~40 ℃ |
| Relative Humidity | ≤90% RH(Non condensing) |
Brief Introduction
The belt packing machine is composed of the automatic quantitative packing scale (including storage hopper, feeder, weighing bucket bag clamping, kneading mechanism, computer control, pneumatic components, etc.) and the optional part(including conveyor machine, sewing machine or welding machine). It adopts screw or belt feeding, and the material is forced out by the feeding mechanism.
Main Using
It is suitable for rationing package of the powdery or particulate material in the food, grain, feed, and chemical industry etc. (For example, the bean pulp, linter pulp, mixture, chemical powder, bran and powdery grains etc.)
Features
Belt conveyors with big and small feed adopted to increase working precision and speed;
High brightness Fluorescent double-row display: real time displaying of packaging weight, accumulated output and bag number.
Adjustable functions of automatic peeling, real time shooting, keyboard encryption, data encryption and real time clock.
Automatic storing of control data of ten kinds of packaging weight, and on-duty accumulated output and bags as well as total output and total packaging bag for each packaging weight
Machine Parts List
Controller: The touch screen operation panel, English / Chinese language change over, much convenient in practice.
Sealing machine: We have the heat sealing and bag sewing machine for customer’s optional. Heat sealing machine is suitable for PE/PET sack bag, the sewing machine is suitable for woven bag and paper bag etc.
Packaging and Shipping
1.We always use standard export wooden packing, carton box.
2.You can choose express, by air, by train or by sea. Always we will give our best recommend based on our experience.
3.We cooperate with China best shipping company to get best price and fast delivery.
4. You will get full feedback when your machine is on the way.
