Product Details:
|
| Accuracy: | ±0.2-0.5% | Packing Speed: | 180-300 Bags / Hour |
|---|---|---|---|
| Free Air Capacity: | 0.1 M3 / Min | Bag Sealing Type: | Stitching / Heat Sealing / Folding Sealing |
| Operator Required: | One Worker | Power: | 3 KW |
| Discharge Pressure: | 0.4-0.6 Mpa | Load Cell: | Toledo / Customized |
| Highlight: | 25kg Hopper Packaging Machine,25kg hopper packing machine,25kg belt packing machine |
||

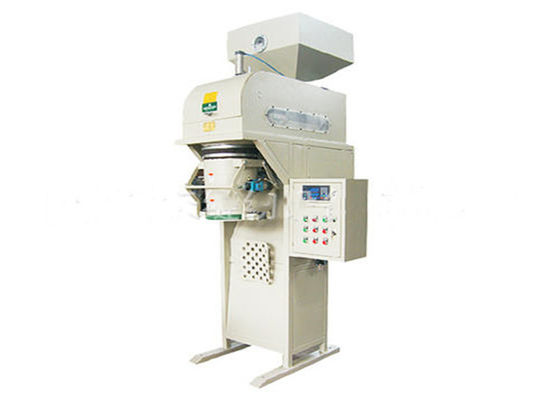

Feeding Belt Packing Machine In Construction Industry , Storage Hopper And Independent Sensor
Features
Adopts belt conveying feed mechanism and anti-blocking device, which can ensure uniform feed and make speed and accuracy reach the optimum;
The weighing system is controlled centrally by control cabinet and is designed according to IP54(dustproof and waterproof) requirement
This unit consists of fully automatic weighing machine, conveyor
Options: multiple devices available for selection (conveyor, air pump etc.)
Such equipment with smaller metering range can be designed and tailor-made.
Working Principle
This series of units are mainly designed for materials with poor fluidity and dual-purpose powder and granule packaging. Using belt feeding method, after the graded feeding into the weighing hopper or packaging bag, the feeding belt stops feeding when the packaging material reaches the set value. The bag gripper opens automatically, the material bag is sent away by a conveyor belt, and the bag is sealed by manual assistance.
Technical Parameters
| Model | SXP50S |
| Filling range | 10-50kg |
| Filling method | Belt feeder |
| Filling capacity | 25kg*(4-6) bags/min |
| Pneumatic power supply | 0.4-0.6MPa |
|
Bags material applied |
Woven bag, craft paper bags for sewing sealing; PP, PET, Compound film bag ect for heat sealing
|
| Certification | CE |
Brief Introduction

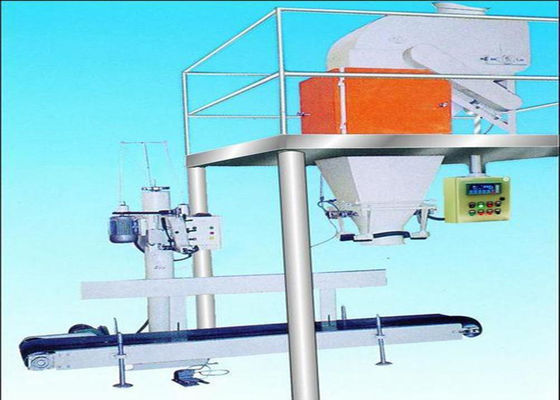

The belt packing machine is composed of the automatic quantitative packing scale (including storage hopper, feeder, weighing bucket bag clamping, kneading mechanism, computer control, pneumatic components, etc.) and the optional part(including conveyor machine, sewing machine or welding machine). It adopts screw or belt feeding, and the material is forced out by the feeding mechanism.
Main Using
It is suitable for rationing package of the powdery or particulate material in the food, grain, feed, and chemical industry etc. (For example, the bean pulp, linter pulp, mixture, chemical powder, bran and powdery grains etc.)
After-Sale Service
High inspecting equipment in every working procedure, quality comes first.
Fast & safety delivery.
Assisting our clients for foundation construction of equipment.
Dispatching our engineers to install and debug the machines.
Training the first-line operators on site.
Providing life-long maintenance service.
Provide technical exchanging.
Packaging and Shipping
1.We always use standard export wooden packing, carton box.
2.You can choose express, by air, by train or by sea. Always we will give our best recommend based on our experience.
3.We cooperate with China best shipping company to get best price and fast delivery.
4. You will get full feedback when your machine is on the way.
FAQ
Q: Is your machine easy operation?
A: Yes, very easy. We will supply you the User Manual in English to guide your operation and all the button and controller will be in English. Also welcome your visit our factory to learn.
Q: How long your machine can work?
8-12 hours per day, 8-10 years with few quick-wear components replacement.
Q: Installation service overseas available?
A: Yes, available. About our engineer’s transportation, accommodation etc. details, talk with us please.
Q: How do you make our business long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit
We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
