Product Details:
|
| Frequency: | 50 / 60 Hz | Packing Speed: | 180-300 Bags / Hour |
|---|---|---|---|
| Accuracy: | 0.2-0.5% | HS CODE: | 8422400000 |
| Power: | 3 KW | Key Selling Point: | Easy To Operate |
| Load Cell: | Toledo | Discharge Pressure: | 0.4-0.6 Mpa |
| Highlight: | 10kg Pellet Bagging Machine,10kg paper bag packaging machine,10kg pellet packing machine |
||

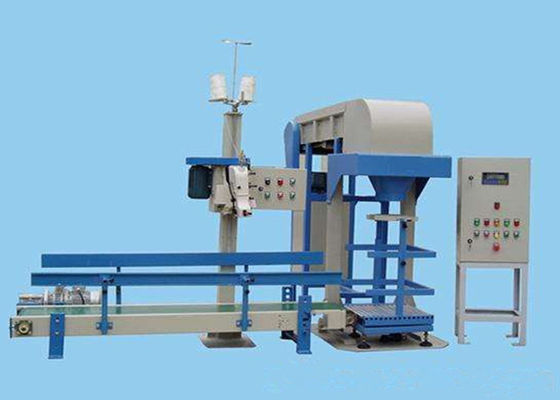

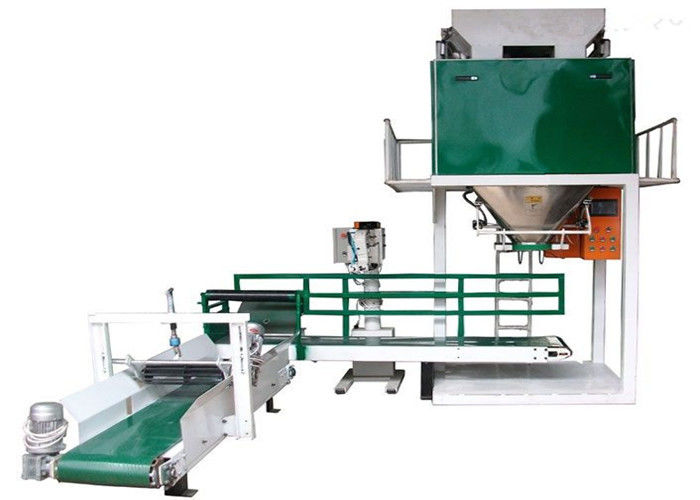

Additives Industry Pellet Bagging Machine For Kraft Bags , Hot Sealing Machine High Accuracy
Brief Introduction
Applicable material: it is suitable for woven bag, jute bag, paper bag, plastic bags, etc.
New technology: adopt advanced microcomputer control processing technology, frequency control of motor speed, easy operation, fast speed, precision is greatly improved. Through the belt forced blanking, high efficiency, stable operation, easy maintenance.
Scope of Application
Applicable materials: powder materials, mixed material, particle material. Widely used in feed, flour, salt fertilization, controlled release fertilizer, additive, chemical industry, paint, etc.
Working Process
Bag supplied & clamped by manual ---automatic wighing ---automatic filling---automatic Bag conveyer ---automatic bag sewing
Features
♦ English and Chinese figures show that simple and intuitive, packaging specifications continuously adjustable, any change working conditions, operation is very simple.
♦ Two kinds of feed delivery is incorporated quantitatively accurate, high precision.
♦The weight value is set, store, modify, and other functions. Having zero and automatic zero tracking function.
♦ The total package weight and number of bags accumulated display.
♦With weighing, unloading bags and folders process chain control function.
♦with automatic and manual tare function.
Technical Parameters
| Model | SXP25S | SXP50S | ||
| Measuring Range | 5-25kg | 20-50kg | ||
| Accuracy Grade | ±0.2-0.5% | ±0.2-0.5% | ||
| Gas Pressure/ Gas Consumption |
0.6MPa/1m³ | 0.6MPa/1m³ | ||
| Voltage | 380V 1100W | 380V 1200W | ||
| Pack Speed | 5-8 Bags/Min | 3-5 Bags/Min |
Machine Parts List
Controller: The touch screen operation panel, English / Chinese language change over, much convenient in practice.
Sealing machine: We have the heat sealing and bag sewing machine for customer’s optional. Heat sealing machine is suitable for PE/PET sack bag, the sewing machine is suitable for woven bag and paper bag etc.
After-Sale Service
A. The warranty would be one year. The damaged one (not include the part which is made damaged by man) can be changed by the supplier, but the demand-side needs to burden the transportation fee.
B. The above quotation is not including the maintenance fee which would happen at home or abroad. If the demand-side asks for maintenance door-to-door, then need to pay all the fees which will be charged.
C. The supplier will provide the spare parts of the machine and support for technology for the good.
Packaging and Shipping
Semi-automatic bag packing machine is usually be packed with plastic films to avoid the cashing or bumping and then it will be loaded into standard export wooden boxes.
FAQ
Q: How long your machine can work?
8-12 hours per day, 8-10 years with few quick-wear components replacement.
Q: Installation service overseas available?
A: Yes, available. About our engineer’s transportation, accommodation etc. details, talk with us please.
Q: How do you make our business long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit
We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
