Product Details:
|
| Cylinder: | AirTAC | Packing Speed: | 180-300 Bags / Hour |
|---|---|---|---|
| Accuracy: | 0.2-0.5% | HS CODE: | 8422400000 |
| Discharge Pressure: | 0.4-0.6 Mpa | Power: | 3 KW |
| Key Selling Point: | Easy To Operate | Electrical Source: | 380-220 V, 50 Hz |
| Highlight: | 15kg Pellet Bagging Equipment,15kg granular packaging machine,380V Pellet Bagging Equipment |
||

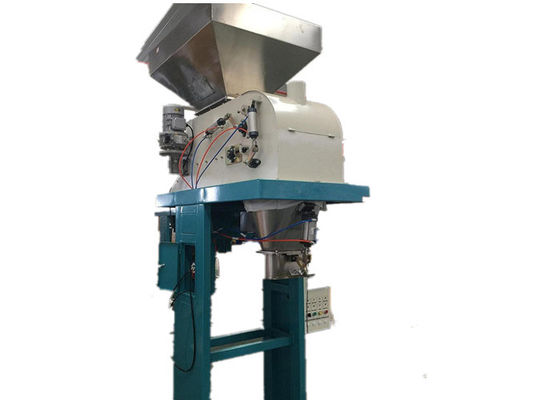

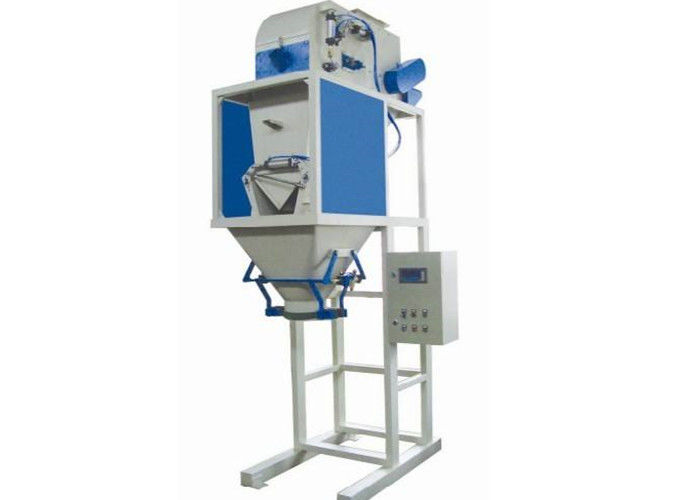

Pellet Bagging Machine In Foodstuff Industry , Granular Materials In Packaging Bag
Brief Introduction
The belt quantitative packaging machine adopts advanced microcomputer control instrument panel, which automatically diagnoses faults. The parts in contact with the materials are made of stainless steel. It is suitable for mixed materials and materials with large moisture. It is widely used in organic fertilizer, chemical, feed and friction materials. And refractory materials and other industries.
The bag can be closed by heat sealing for lining/plastic bags and sewing(thread stitching) for woven bags, paper bags, kraft bags, sacks etc.
Scope of Application
Applicable to fertilizer powder, lime powder, mineral powder, glucose powder, zinc oxide, calcium chloride, cellulose powder and other kinds of illiquid quantitative packaging powder or powder and granular materials.
Working Process
Bag supplied & clamped by manual ---automatic wighing ---automatic filling---automatic Bag conveyer ---automatic bag sewing
Features
1) Take three speeds feeding to guarantee the precision at min weight and the speed at max weight
2) The head of bag stitching machine, conveyor, and hot sealing machine can rise and fall. Also, the system is applied to sealing and convey with max and min bags.
3) There is shock-absorbing device in weighing system; It could avoid the shock of other devices through floor and tube to affect the weighing system.
4) Good seal in system, duster port reserved.
5) Guide groves in conveyor roller and guide bars in conveyor belts to avoid excursion and cracks.
Technical Parameters
| Model | SXP25S | SXP50S | ||
| Measuring Range | 5-25kg | 20-50kg | ||
| Accuracy Grade | ±0.2-0.5% | ±0.2-0.5% | ||
| Gas Pressure/ Gas Consumption |
0.6MPa/1m³ | 0.6MPa/1m³ | ||
| Voltage | 380V 1100W | 380V 1200W | ||
| Pack Speed | 5-8 Bags/Min | 3-5 Bags/Min |
Machine Parts
Name: Vibrating screw feeder
Original: China
This machine is suitable for the lifting of powder and powder mixed materials and the use of packaging machine, controlled by the packaging machine, set up the material return switch, easy to clear the material, the bin is set up with vibrator, more smooth feeding.
Name: Belt conveyor
Brand: EAGLE
Original: China
Suitable for the transfer of packaging goods, save manpower, financial and material resources. Adjustable system, convenient and fast. Improve efficiency.
Why Choose Us
We can also offer powder/granule conveying, mixing, packing and sealing machines, stock bins, conveyor belts, bag sewing machine for production lines.
You can choose machine material as your demand: Carbon steel, Full stainless steel 304/316L, or Raw material contact parts are stainless steel, for option.
Packaging and Shipping
Semi-automatic bag packing machine is usually be packed with plastic films to avoid the cashing or bumping and then it will be loaded into standard export wooden boxes.
FAQ
Q: Is your machine easy operation?
A: Yes, very easy. We will supply you the User Manual in English to guide your operation and all the button and controller will be in English. Also welcome your visit our factory to learn.
Q: About the machine voltage or power of machine?
A: Usually in our country is 220v,50hz, single phase, or 380v, 50hz, 3 phase. if you have the special requirement, pls tell us, we will vetify the voltage according to your requirement.
Q: Can you guarantee your product quality?
A: Of course. We are the manufacture factory. More important, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
Q: How does your factory do regarding on quality control?
A: We pay much attention on quality controlling and strictly follow the professional standard forms from getting order, parts procession, assembly for whole set of machine and debug to shipment.
