Product Details:
|
| Electrical Components: | AirTAC | Packing Speed: | 180-300 Bags / Hour |
|---|---|---|---|
| Accuracy: | 0.2-0.5% | HS CODE: | 8422400000 |
| Discharge Pressure: | 0.4-0.6 Mpa | Way To Change Package Weight: | By Changing Formula In Controller |
| Hopper Volume: | 0.3 CBM | Electrical Source: | 380-220 V, 50 Hz |
| Highlight: | 15kg Pellet Bagging Machine,15kg seed packaging machine,15kg seed packaging equipment |
||

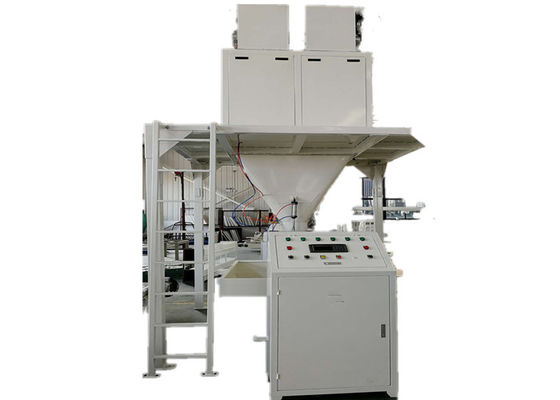

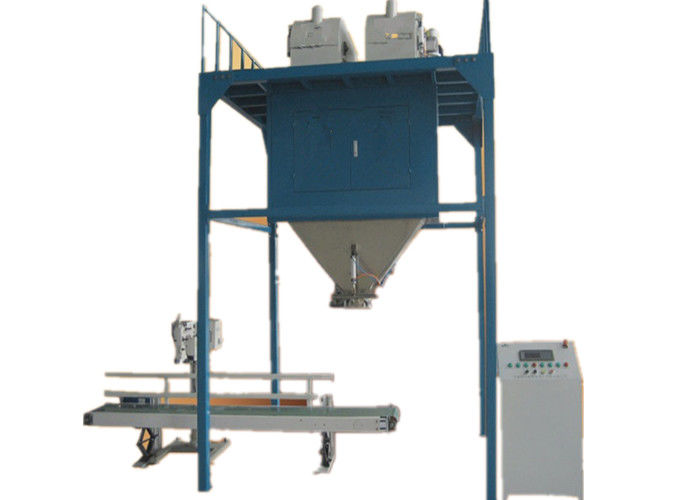

Seeds Industry Pellet Bagging Machine , Belt Feeder And Weighing Hopper
Brief Introduction
This machine is the intelligent packaging for the development of granular materials and irregular materials. Using pneumatic gate feed or belt feeding mode, advanced frequency conversion technology.
The packing unit is mainly composed of four parts, which are automatic weighing packer, conveying device, sewing device and feeding machine. It has the characteristics of reasonable structure, beautiful shape, convenient operation and accurate weighing.
Scope of Application
This series packaging machine is mainly designed for poor liquidity material, and packaging interchange between powder material and granular one that sharing one packaging scale. The machine adopts belt classifying and feeding type: material from packaging hopper is classified and fed to measuring hopper or into the packaging bag by belt controlled by the sensor. When the packaging material fill in the bag at the setting weight, the belt stops feed accordingly. Bag clapper unfolds automatically when the material filled in the bag according to the setting value, and then the packaging bag is delivered by conveyor, and sewed with the help of workers.
Working Process
Bag supplied & clamped by manual ---automatic wighing ---automatic filling---automatic Bag conveyer ---automatic bag sewing
Features
1. High functional weighing controller.
2. Fast sampling.
3. Good control performance.
4. Easy to operate.
5. The special mode of belt feeding with three kinds of speeds (fast,medium,and slow).
6. Reliable function and easy to be installed.
7. Matched with sewing machine and conveyor, which can achieve the sealing packing.
Technical Parameters
| Model | Weighing Scope | Speed | Accuracy | Power | Air Pressure |
| SXP25S | 5-25kg | 4-10 bags/minute | 0.2%F.S | 3Kw | 0.4-0.6MPa |
| SXP50S | 20-50kg | 3-5 bags/minute |
Machine Parts
Name: Vibrating screw feeder
Original: China
This machine is suitable for the lifting of powder and powder mixed materials and the use of packaging machine, controlled by the packaging machine, set up the material return switch, easy to clear the material, the bin is set up with vibrator, more smooth feeding.
Name: Belt conveyor
Brand: EAGLE
Original: China
Suitable for the transfer of packaging goods, save manpower, financial and material resources. Adjustable system, convenient and fast. Improve efficiency.
Pre-sales Service
1) Offering comprehensive technical and business consultation services;
2) Proposing the most suitable scheme and equipment for our clients;
3) Designing and fabricating targeted products according to the special requirements of clients;
4) Training periodically high qualified service technician.
Packaging and Shipping
1.We always use standard export wooden packing, carton box.
2.You can choose express, by air, by train or by sea. Always we will give our best recommend based on our experience.
3.We cooperate with China best shipping company to get best price and fast delivery.
4. You will get full feedback when your machine is on the way.
FAQ
Q: Is your machine easy operation?
A: Yes, very easy. We will supply you the User Manual in English to guide your operation and all the button and controller will be in English. Also welcome your visit our factory to learn.
Q: About the machine voltage or power of machine?
A: Usually in our country is 220v,50hz, single phase, or 380v, 50hz, 3 phase. if you have the special requirement, pls tell us, we will vetify the voltage according to your requirement.
Q: Can you guarantee your product quality?
A: Of course. We are the manufacture factory. More important, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
Q: How does your factory do regarding on quality control?
A: We pay much attention on quality controlling and strictly follow the professional standard forms from getting order, parts procession, assembly for whole set of machine and debug to shipment.
