Product Details:
|
| Operating Language: | English / Chinese | Package Type: | Normal Open Mouth Bag Or M Type Bag |
|---|---|---|---|
| Weighing Sensor: | Telode | Capacity: | 300-500 B/h |
| HS CODE: | 8422400000 | Discharge Pressure: | 0.7Mpa |
| Weighing Controller: | Germain System | Machine Weight: | 400-600kg |
| Highlight: | 25kg Pharmaceutical Packaging Machine,25kg pharmaceutical packaging equipment,380V pharmaceutical packaging equipment |
||

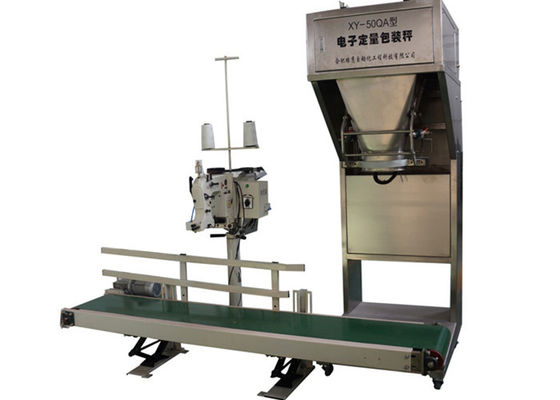

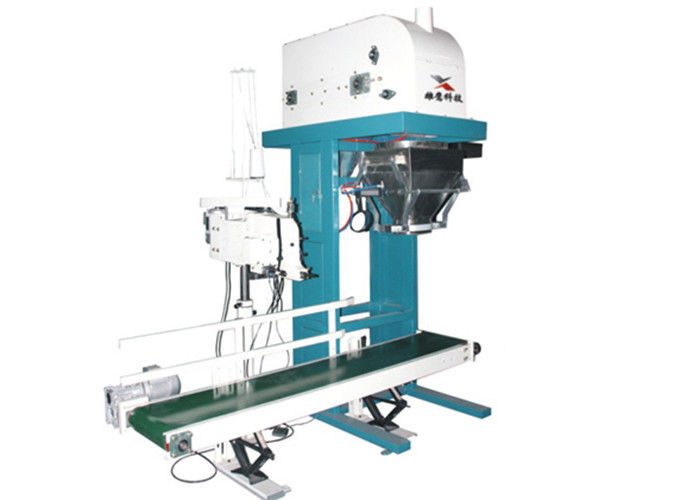

Pharmaceutical Industry Pellet Bagging Machine , Stainless Steel 380 V
Brief Introduction
The unit consists of the ration automatic packing scale and the selecting and matching parts: conveyer, the hemming machine and the heat seal machine. It uses conveyer to feed the material, and the feed gearing is suitable for a comparatively worse fluidity of powdery material and grainy material. The main component parts are: conveyer, weighing and clamping box, the computer control, and pneumatic actuator.
Scope of Application
High-speed quantitative separation of crystals, granules, loose and small pieces of materials with good fluidity in fertilizer, agrochemical, feed, chemical raw materials, plastic granules, seeds, grain, sugar and other industries.
Working Principle
This series of units are mainly designed for materials with poor fluidity and dual-purpose powder and granule packaging. Using belt feeding method, after the graded feeding into the weighing hopper or packaging bag, the feeding belt stops feeding when the packaging material reaches the set value. The bag gripper opens automatically, the material bag is sent away by a conveyor belt, and the bag is sealed by manual assistance.
Features
Integrity of automatic material packaging control, weight display, packaging sequence, chain reaction of process, failure alarm.
Automatic functions of storing, restoring(copy), data trial testing.
Automatic storing of control data of ten kinds of packaging weight, and on-duty accumulated output and bags as well as total output and total packaging bag for each packaging weight;
Belt conveyors with big and small feed adopted to increase working precision and speed;
High brightness Fluorescent double-row display: real time displaying of packaging weight, accumulated output and bag number.
Technical Parameters
| Model | Weighing Scope | Speed | Accuracy | Power | Air Pressure |
| SXP25S | 5-25kg | 4-10 bags/minute | 0.2%F.S | 3Kw | 0.4-0.6MPa |
| SXP50S | 20-50kg | 3-5 bags/minute |
Why Choose Us
15 years of experience in production research and development.
Ten years of experience in import and export.
Exports to more than 91 countries and regions.
Professional team with passion and diligence
Permanent investment in research and development, we are specialists in bagging bulk solids in all sorts of bags: Open mouth bags, FFS bags and Big Bags.
We have delivered and installed more than 2,000 machines worldwide.
All of our quality machinery complies with the CE conformity, MID European Certification for weights and measurements.
We have a professional team to provide you with 24-hour online service,
And, our efficient after sales service is present worldwide.
Our Service
Pre-sales Service
1) Offering comprehensive technical and business consultation services;
2) Proposing the most suitable scheme and equipment for our clients;
3) Designing and fabricating targeted products according to the special requirements of clients;
4) Training periodically high qualified service technician.
After-sales Service
1) Highly inspecting equipment in every working procedure, quality comes first; Fast & Safe Delivery;
2) Assisting our clients for foundation construction of equipment;
3) Dispatching engineers to install and debug equipment;
4) Training the first-line operators on site;
5) Regularly visit clients to solve production problems;
6) Providing life-long maintenance service;
7)Providing technical exchanging
Packaging and Shipping
1. The machine is PE film winding to protect machine off corrosive and rust;
2. The machine is well wire tighten to protect machine off damage in shipping container;
3. Export standard plywood case, composite material, fumigation-free;
4. With easy lifting corn by the forklift.
FAQ
Q: How could I choose the right packing machine?
A: We have various item of packing machine to suit for pack different materials(products), just let me know your product and requirement, we will choose the suitable item and make a drawing for you to confirm. Also, your customize design are available, we have more than 10 person engineers team and R&D team.
Q: About the machine voltage or power of machine?
A: Usually in our country is 220v,50hz, single phase, or 380v, 50hz, 3 phase. if you have the special requirement, pls tell us, we will vetify the voltage according to your requirement.
Q: When can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
Q: Can you guarantee your product quality?
A: Of course. We are the manufacture factory. More important, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
