Product Details:
|
| Machine Size (L*W*H): | 1485*1700*1400mm | User Manual: | English Type |
|---|---|---|---|
| Nearest Port: | Shanghai | Condition: | New |
| Max Accuracy: | ±2-5g | Origin: | Hefei, China |
| Machine Material: | 200-500kg | Original Certificate: | Provided |
| Highlight: | 6000g Check Weight Machine,HBM Sensor Check Weight Machine,6000g weight checking machine |
||

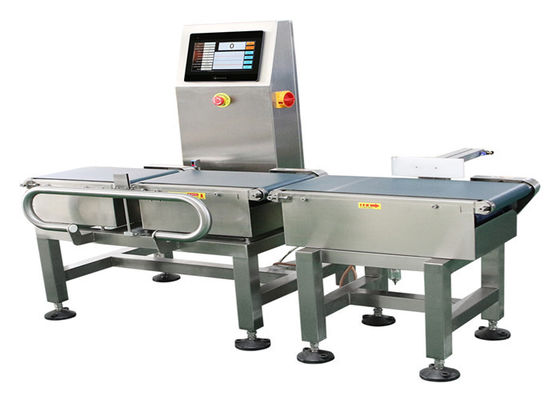

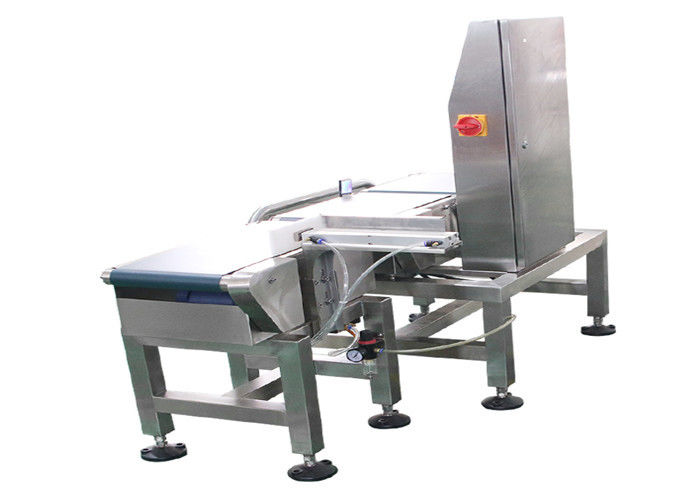

Nonconforming product inspection system , check weight machine In wine industry
Principal Feature
Adopt imported high sensitivity sensor, high speed, high sensitivity, high stability
Full color touch screen system, simple intuitive and easy to operate User friendly Touch Screen Controller
Water-proof and dustproof IP30/IP66 optional.
Stainless steel construction, built-in hinge design, easy to clean Automatic parameter adjustment, simply input the product parameters and weighing requirements
Brief Description
Check weigher substantiates the extensive know-how that the company has accumulated in weighing technology over the years. By including a high-precision weight checking function in the production line, your product quality can improve without any decline in efficiency. The series provides a whole range of features for handling different products, and incorporate new functions in response to modern necessities.
Machine Parts List
| No. | Name | Brand/Model | Material |
| 1 | Motor | CPG | Aluminum (shell) |
| 2 | Belt | Zhenjie | PVC |
| 3 | Bearing block | LK | Cast iron |
| 4 | Outrigger | Square tube 50x50 | Carbon steel spray |
| 5 | Beam frame | Bending plate, thickness 3mm | Stainless steel |
| 6 | Main roller | Eagle, Diameter φ58 | Carbon steel spray anti-rust paint |
| 7 | Driven roller | Eagle, Diameter φ58 | Carbon steel spray anti-rust paint |
| 8 | Guardrail | Bent plate, thickness 1.5mm | Stainless steel 201 |
| 9 | Touch screen | Saimo | |
| 10 | Sensor | HBM |
Model
| No. | Model | Name | Size |
| 1 | XYR-FJA | Check weigher A | Height 750mm |
Technical Parameters
| Model | SCW06A/B/C | SCW20A/B/C | SCW30A/B/C | SCW60A/B/C |
| Scope | 6g-600g | 50g-2000g | 100g-3000g | 100g-6000g |
| Accuracy | ±0.4g | ±0.5g | ±1g | ±4g |
| Max. throughput | 200 ppm | 150 ppm | 120 ppm | 60 ppm |
| Belt Length(mm) | 220,300 | 300,400 | 400,500 | 600,800 |
| Belt Width(mm) | 150,200 | 200,250 | 250,300 | 400,500 |
| Table Height(mm) | 600-1000 | 600-1000 | 600-1000 | 600-1000 |
FAQ
Q. How about your after-sales policy?
A: Customer first is our principle. All of our products have warranty in 12months. We give necessary video guidance for daily problems. Our technical engineer can support overseas service if machine faces massive problems.
Q: How to select the suitable weight checking machine type for your product:
A: Please contact with our people and tell us information: your product sizes(L*W*H), product weighing range(min and max weight), speed(how many bags per hour), rejector needed or not so that we can select the best suitable check weigher for you.
Q:Which port is the nearest ?
A:Shanghai, Ningbo, Guangzhou, Shenzhen
Q:What's your lead time ?
A:Normally 20-30 days after we receive your deposit.
Q:Logistics?
A:1.Sea Shipment;
2.Air Shipment;
3.Transport by car or train;
4.Express:DHL,UPS,TNT.
Our Service
Technical support (Skype, Email, Whatsapp, Wechat, Mobile etc.)
Information for shipping (weight, CBM, Loading port and destination port)
Installation guide (online video, user manual in English, drawing etc.)
One-year free warranty. Within warranty period, the replacement of spare parts is provide by us freely.
Welcome for your visit and training on our factory if required.
Package
Machines are film wrapped and fixed in the exported wooden case. All the wooden cases will be transported to departure port warehouse to wait for loading in container or directly load in the container in our factory. All based on customer’s requirements.
