Product Details:
|
| Tale Height: | 620mm | Width Detection: | 500 Mm |
|---|---|---|---|
| Power Supply: | 110v,220v,380v Can Be Customized | Protection Degree: | IP30/IP54/IP66 |
| Max Accuracy: | ±2-5g | Raw Material: | 304SS Or Carbon Steel |
| Controller: | LCD Or Touch Screen | Language: | English Or Customized |
| Highlight: | 50kg Automatic Checkweigher,IP66 Automatic Checkweigher,50kg checkweigher machine |
||

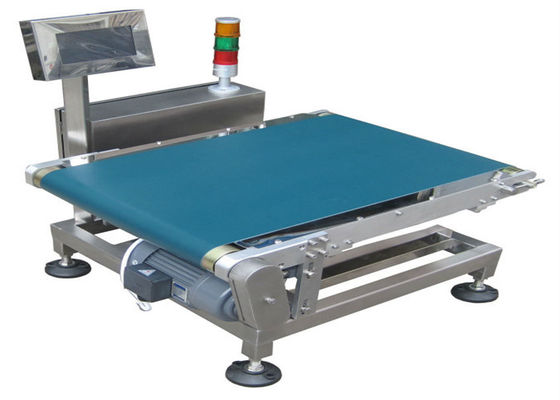

Rejector Equipped Check Weigher Machine In Beverage Industry , Belt Conveyor
Introduction
SSCW-B Type Checker Weigher- 6 inch LCD controller
Main features
6-inch graphic LCD display with touch keypad
Easy product setting and calibration
Fast product switching
Self-diagnostic function
Comprehensive statistical functions
Multi-level password protection
Flexible alarm output configuration
SCW-C Type Check Weigher
Weight and metal double detection
Metal detection only for combi equipment, iron, non-ferrous, stainless steel
Metal detection capabilities vary by product
Weight Checking Machine Features
1. High speed, high sensitivity, high stability dynamic weight checking
2. Accurate and efficient rejector system
3. Professional human-machine interface design
4. User-friendly features
5. Top-level craft, professional mechanical design
6. Good environmental adaptability and stability
Application
The checkweigher is suitable for testing the weight of a small single item whether is qualified or not, and it is widely used in electronic, food, pharmaceutical, beverage, health-care, chemical industry etc. F or example, it can be used in food industry to check the weight of flavour, cake, hams, instant noodles, frozen food, food additives, preservative etc.
Technical Parameters
| Specifications | SCW-500 | |
| Detecting Range | 1~50kg | |
| Detecting Accuracy | ±15g | |
| Detecting Speed | 50pieces/min | |
| Segments Number of Sorting | 1 | |
|
Product Size to be Detected |
Width | 100~400mm |
| Length | 35~500mm | |
| Height | 50~300mm | |
| Pressure Requirements | 0.5Mpa | |
| Rejecter | Rejecter Optional | |
| Power Supply | AC220V(Optional) | |
| Main Material | SUS304 | |
Machine Parts List
| NO. | Part | Brand | Material |
| 1 | Motor | Chengbang Motor | Aluminium alloy (shell) |
| 2 | Square Roller | 60x60mm | Cast Steel Galvanization |
| 3 | Bearing Block | LK | cast iron |
| 4 | Cylinder | Airtac | Aluminium alloy cylinder |
| 5 | Electromagnetic Valve | Airtac | / |
| 6 | Outrigger | 80x40mm | Carbon Steel Spraying |
| 7 | Beam | Thickness:8mm | Carbon Steel Spraying |
| 8 | Guardrail | Thickness:1.5mm | Stainless Steel |
Our Advantages
1. The machine operation interface is simple: only need to set the product parameters after receiving the machine, press the start button. No other machine parameters need to be reset.
2. Self-diagnosis function: the machine can detect the fault by itself and prompt.
3. Possess core technology.
4. Delivery time 5-7 working days.
5. Low failure rate.
6. Strong durability.
7. Attached machine installation tools and wearing parts (for example: motor belt)
8. There are many successful cases in the industry: (you can contact our sales staff at any time to request the machine work video)
FAQ
Q: How to select the suitable weight checking machine type for your product:
A: Please contact with our people and tell us information: your product sizes(L*W*H), product weighing range(min and max weight), speed(how many bags per hour), rejector needed or not so that we can select the best suitable check weigher for you.
Q: Are you manufacturer or trader? Where are your factory located?
A: We are manufacturer and we are located in Hefei city, Anhui, China.
Q: What kind of Transportation could you provide?And are you able to update the production process Information in time after placing our order?
A: Sea shipping, air Shipping, and international express. And after confirming your order, we would keep you updated of production details of emails and photos.
Q: How long is your warranty?
A: 12 months free warranty, life-long maintenance.
Package
Machines are film wrapped and fixed in the exported wooden case. All the wooden cases will be transported to departure port warehouse to wait for loading in container or directly load in the container in our factory. All based on customer’s requirements.
Delivery: 7-15 working days after deposit.
