Product Details:
|
| Condition: | New | Range: | 10-50 Kg/ Bag |
|---|---|---|---|
| Power: | 4 KW | Filling Method: | Screw And Vibration Feeding |
| Packing Speed: | 2-5 Bags / Minute | Machine Material: | Stainless Steel / Carbon Steel |
| Air Pressure: | 0.6 MPa | Product Example: | New Building Materials |
| Weighing Type: | Screw Weigher | ||
| Highlight: | 50kg Auger Powder Filling Machine,Sus304 Auger Powder Filling Machine,50kg quantitative filling machine |
||

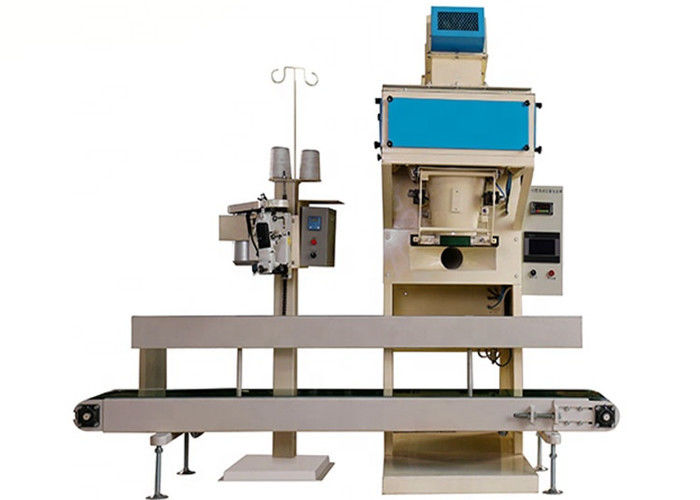

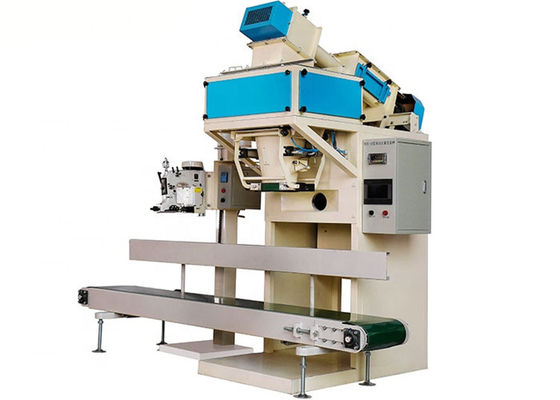

Sus304 Stainless Steel Powder Quantitative Packaging Machine , Auger Filling Machine
Brief Description
The powder filling machine is mostly used for the bulk products like the powdery or fine granular materials volumetric metering and dosing. By linking to the screw feeder to set up the system for premade pouch 5kg, 10kg, 25kg, 50-100gkg etc.
This packaging machine including weighing, filling, sealing and some other functions.
Design for powdery material's packaging.
Suitable for many kinds of powdery and fine granular material's packaging.
The machine uses double auger feeder.
Keep a high packaging accuracy, if the working place is dusty.
We can deploy industrial vacuum cleaner for you.
Working Procedure:
Raw material silo → Packing unit → manual Bagging → automatic Measurement → automatic bag discharge → Conveyor → automatic Sewing machine.
Features
Separate high brightness LED windows of packaging weighing inputting, weighing displaying; simple and intuitive menu operation; man-assisting bag-holding (or barrel),pneumatic bag clapping, independent weighing system: high weighing precision, high speed; high control precision with screws controlled by an asynchronous motor; functions of automatic peeling, data encryption, time displaying; stable structure, small area occupied, easy to clean and maintain.
It has the advantage of high calculating precision, stable functioning, digital demonstration and easy operation.
Adopt the imported sensor and pneumaticimple mentation mechanism which makes the work reliable, the maintenance easy and no pollution.
Technical Parameters
| Measure method | Weighing mode (Net weight) |
| Feeding Mode | Double screw |
| Filling weight | 10-50Kg |
| Packing Accuracy | ±0.3-0.5% |
| Packing Speed | 2-5bags/min |
| Power Supply | 380V/220V 50-60Hz |
| Pressure | 6-8kg/cm2 0.2/m3/min |
| Total Power | 4Kw |
| Machine Weight | 800kg |
Packaging
Clean the machine and film wrap it
Fix the bottom of the equipment
Check the accessories all packed well
Close the wooden case
Print the mark and stick it on the wooden case
Loading, entering the warehouse
Pre-sale service
1. Introducing detail features and application of the products to customer.
2. Selecting economical and practical machines for customer.
3. Providing operation data of the related machine.
4. Providing means of trial performance for customer.
5. Flow chart and factory designing layout.
Sale service
1.Recommending engineering conditions required for installation of the machine.
2. Communicating the manufacturing progress of machines with customer in time.
3. Project planning and design services;
After-sale service
1. Training of equipment maintenance and operating personally.
2. Installation and commissioning of equipment until everything is functional.
3. One-year warranty and Providing long-term maintenance service and spare parts.
4. Giving technical support to customer for developing new product.
5. Engineers available to service machinery overseas.
6. Provide English Version of Installation/Operation/Service/Maintenance Manual.
Why Choose Us
1.We have 30 years’ experience to packing machine
2.Strong ability of product sure to deliver the goods within a month
3.We have a stable technology team that more than 30 engineers in our factory
4.ISO9001 certified workshop and CE
5.The supporter of spare part all are famous company and have reliable quality
