Product Details:
|
| Weighing Sensor: | Load Cell | Key Selling Point: | Easy To Clean |
|---|---|---|---|
| Precision: | Less Than 120g | Accessories Included: | User Manual, Tools, Spare Parts |
| Voltage: | 380V | Frequency: | 50 / 60 Hz |
| Load Cell Quantity: | 2 / 4 | Power: | 4 KW |
| Powder Mesh: | 100-200 Mesh | ||
| Highlight: | 35Kg Bag Powder Filling Packing Machine,35Kg flour bag packing machine,AC380V flour bag packing machine |
||

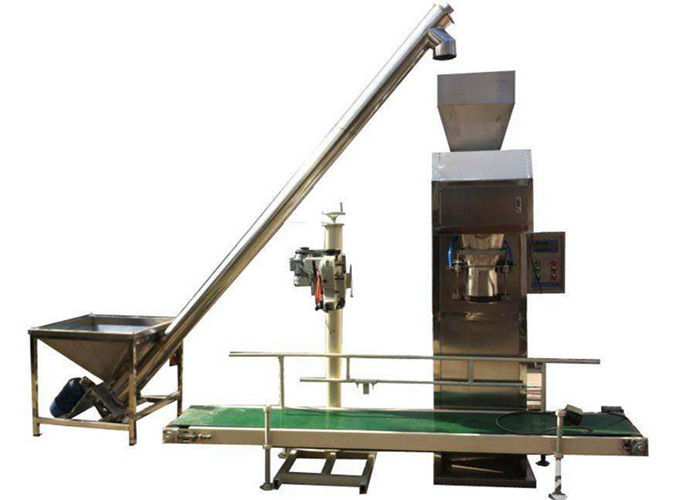

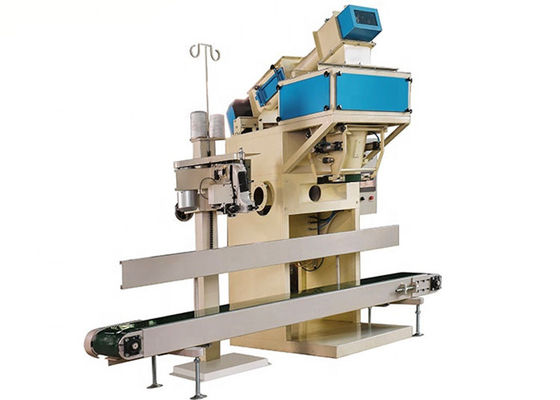

Grading Feed Flour Powder Filling Packing Machine In Seasoning Industry , 35 Kg Bag
Working Process
Raw material silo → Packing unit → manual Bagging → automatic Measurement → automatic bag discharge → Conveyor → automatic Sewing machine.
Description
This packaging machine including weighing, filling, sealing and some other functions.
Design for powdery material's packaging.
Suitable for many kinds of powdery and fine granular material's packaging.
The machine use double auger feeder.
Keep a high packaging accuracy, if the working place is dusty.
We can deploy industrial vacuum cleaner for you.
The whole machine is made of stainless steel .
The key equipment’s are all use famous brands. So it with high accuracy and high speed.
Technical Parameters
| Weighing range | 10-50kg |
| Weighing accuracy | ±0.5% |
| Weighing rate | 180-240 bags/h |
| Power/current | 5kW/10A |
| Air supply pressure | 0.36MPa |
| Metering mode | Suspension sensor |
| Frequency/voltage | 220V / 50 Hz / 3 phase (can change as your requirement) |
| Power supply mode | 3-phase 5-wire system (can change as your requirement) |
| External dimensions (L*W*H) | 4000*2000*3500(mm) |
| Unit weight | 1200 kg |
Conveyor:
Conveyor length: 3m
Conveying speed: 5-20m/min (adjustable)
Conveyor belt width: 400mm
Maximum conveying capacity: 15 bags / min
Power supply: AC380V
Power: 0.75kw
Sewing / sealing machine:
Sealing sewing machine model: GK35-6A
Maximum sewing speed: 1700 stitches / min
Pitch length: 6.5-11mm
Maximum sewing thickness: 8 mm
Stitch form: double-line chain seam
Suture specification: 21S/5, 20S/3 polyester thread, 30S/cotton thread
Power source: AC380V
Power: 0.55kw
Machine Characteristic
1, Can store 20 kinds of formula, can easily change the packaging machine parameters
2, The whole machine with carbon steel, contact part of the use of stainless steel 304.
3, Fully enclosed bag switch, control system sealed well.
4, With lack of material and tolerance alarm function.
5, Automatic zero, automatic taring, automatic error correction, automatic fault diagnosis
Packaging and Delivery
The packing machine before sent to you will installation and testing welled then whole set packed in the big wooden box then in container.
Inner package with stretch film, out package with export wooden box(with metal frame more safe and non-fumigation wooden), avoid the packing machine broken.
Shipping port: Shanghai/ Ningbo / Nanchang port or other port you need.
After-sale service
1. Training of equipment maintenance and operating personally.
2. Installation and commissioning of equipment until everything is functional.
3. One-year warranty and Providing long-term maintenance service and spare parts.
4. Giving technical support to customer for developing new product.
5. Engineers available to service machinery overseas.
6. Provide English Version of Installation/Operation/Service/Maintenance Manual.
Why Choose Us
Research and Development Ability: Our own research and development department, customized design
Quality Guarantee: Domestic and imported numerical control equipment, rice experience
Business Scope: All kids of bulk material packing machine and palletizing robot system, can design the whole packing line
Our certificates: Over 200 national patent certificates, awarded scientific research project
Sales Service: Capable after-sale team, lifelong technical service and innovation.
