SXP50PW Rice Additives 40kg Powder Weighing And Filling Machine

Non-Hopper Vibration Feeding Packing Machine In Rice Additives Industry , 3 Phase Voltage

Technical Parameters

Sewing machine

Sealing sewing machine model: GK35-6A
Maximum sewing speed: 1700 stitches / min
Pitch length: 6.5-11mm
Maximum sewing thickness: 8 mm
Stitch form: double-line chain seam
Suture specification: 21S/5, 20S/3 polyester thread, 30S/cotton thread
Power source: AC380V
Power: 0.55kw

Conveyor:
Conveyor length: 3m
Conveying speed: 5-20m/min (adjustable)
Conveyor belt width: 400mm
Maximum conveying capacity: 15 bags / min
Power supply: AC380V
Power: 0.75kw

Working Principle

This series of quantitative packaging weighing unit is specially designed for the quantitative packaging of all kinds of granular materials and small particles with good fluidity & small dust, feeding by pneumatic arc door or vibration. Pneumatic curved door or vibrating feeder is controlled by the sensor feedback signal, and the material is graded into the weighing bucket or the packaging bag. When the material in the weighing bucket or packaging bag is filled to the set weight, the feeding mechanism stops feeding.

Introduction

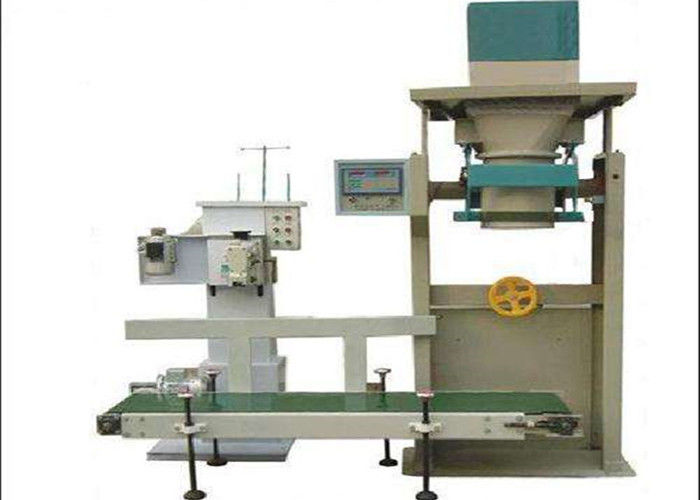

The type of packing machine is constituted of automatic weighing machine parts, entrainment of part of the automatic unloading bags of parts, control unit and other parts.

The machine uses double auger feeder.
Keep a high packaging accuracy, if the working place is dusty.
We can deploy industrial vacuum cleaner for you.
The whole machine is made of stainless steel .
The key equipment’s are all use famous brands. So it with high accuracy and high speed.

Design Highlights

1. The powder stored in hopper will flow into filling bag automatically.

2. The fast filling valve will be shut off when it reaches level "1" while the slow filling is activated.

3. After arriving at level "2", filling process is completed and the bag is released.

4. With semi-automatic sealing machine: Sealing speed 5m/min.

Our Advantages

Research and Development Ability: Our own research and development department, customized design

Quality Guarantee: Domestic and imported numerical control equipment, rice experience

Business Scope: All kids of bulk material packing machine and palletizing robot system, can design the whole packing line

Our certificates: Over 200 national patent certificates, awarded scientific research project

Sales Service: Capable after-sale team, lifelong technical service and innovation.

Packaging and Delivery

Clean the machine and film wrap it

Fix the bottom of the equipment

Check the accessories all packed well

Close the wooden case

FAQ

Q: Do you have any technical supports?

A: Yes, we have a professional team of engineers who owned many installation, debug and training experiences abroad, are available to service machinery overseas.

Q: How can I know the machinery quality before I order?

A: We will invite you visiting our factory to check the machines quality, and show the machine running for you in our factory. If you don't have time to visit our factory we will record the video for you and try our best meet your requirement. We also can provide different test certificate as your requirement.

Q: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;
