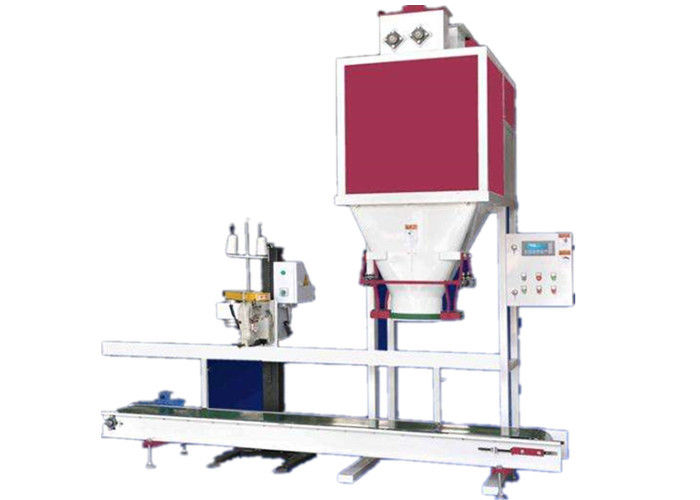

Non Bucket 4KW 10kg Powder Weighing And Filling Machine For Starch

Non-Bucket Pneumatic Starch Packaging Machine In Food Industry , 3 Phase

Working Principle

This series of quantitative packaging weighing unit is specially designed for the quantitative packaging of all kinds of granular materials and small particles with good fluidity & small dust, feeding by pneumatic arc door or vibration. Pneumatic curved door or vibrating feeder is controlled by the sensor feedback signal, and the material is graded into the weighing bucket or the packaging bag. When the material in the weighing bucket or packaging bag is filled to the set weight, the feeding mechanism stops feeding.

Brief Introduction

The type of packing machine is constituted of automatic weighing machine parts, entrainment of part of the automatic unloading bags of parts, control unit and other parts.

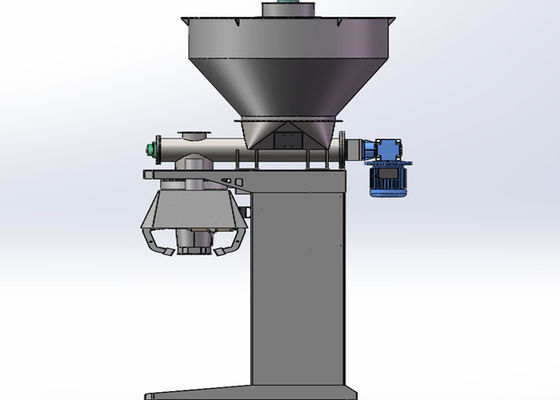

The machine uses double auger feeder.
Keep a high packaging accuracy, if the working place is dusty.
We can deploy industrial vacuum cleaner for you.
The whole machine is made of stainless steel .
The key equipment’s are all use famous brands. So it with high accuracy and high speed.


Technical Parameters

Sewing machine

Sealing sewing machine model: GK35-6A
Maximum sewing speed: 1700 stitches / min
Pitch length: 6.5-11mm
Maximum sewing thickness: 8 mm
Stitch form: double-line chain seam
Suture specification: 21S/5, 20S/3 polyester thread, 30S/cotton thread
Power source: AC380V
Power: 0.55kw

Packing Machine

Weighing capacity: 2 to 5 packs / min
Weighing range: 10-50 kg/bag
Weighing error: ±0.5%
Control method: instrument control
Power supply: AC380V
Host power: 1.5kw
Gas supply: oil-free, dust-free instrument gas
Pressure: 0.4---0.7MPa
Gas consumption: 0.4Nm3/min


Machine Main Components List

Features:

The auto-adapted software has the function of controlling the parameter setup, the self correcting of the fall height, deviation alarm and fault self-diagnostics etc.

Wide quantitative extent, high precision and aplatform that can be raised and lowered makes it have more functions and efficiency higher.

Adopt the imported sensor and pneumaticimple mentation mechanism which makes the work reliable, the maintenance easy and no pollution.

Pre-sale service

1. Introducing detail features and application of the products to customer.
2. Selecting economical and practical machines for customer.
3. Providing operation data of the related machine.
4. Providing means of trial performance for customer.
5. Flow chart and factory designing layout.

Our Advantages

Research and Development Ability: Our own research and development department, customized design

Quality Guarantee: Domestic and imported numerical control equipment, rice experience

Business Scope: All kids of bulk material packing machine and palletizing robot system, can design the whole packing line

Our certificates: Over 200 national patent certificates, awarded scientific research project

Sales Service: Capable after-sale team, lifelong technical service and innovation.

Packaging and Delivery


1. Wooden case after fumigation treatment. No need timber inspection.
2. All the spare parts are packaged by soft materials, to avoid damages during delivery; at last, we'll cover plastic wrap out it to make sure Waterproof and rust proof.

FAQ

Q: Do you have any technical supports?

A: Yes, we have a professional team of engineers who owned many installation, debug and training experiences abroad, are available to service machinery overseas.

Q: How can I know the machinery quality before I order?

A: We will invite you visiting our factory to check the machines quality, and show the machine running for you in our factory. If you don't have time to visit our factory we will record the video for you and try our best meet your requirement. We also can provide different test certificate as your requirement.

Q: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;
