Double Screw 15kg Powder Weighing And Filling Machine

Double Screw 15kg Powder Weighing And Filling Machine
Double Screw 15kg Powder Weighing And Filling Machine Double Screw 15kg Powder Weighing And Filling Machine

Large Image :  Double Screw 15kg Powder Weighing And Filling Machine

Product Details:
Place of Origin: Hefei, Anhui, China
Brand Name: EAGLE
Certification: CE
Model Number: SXP50PW
Payment & Shipping Terms:
Minimum Order Quantity: One unit
Price: Negotiable
Packaging Details: Film wrapped and packed in exported wooden case
Delivery Time: 15-20 working days
Payment Terms: L/C, T/T
Supply Ability: 100 units/month

Double Screw 15kg Powder Weighing And Filling Machine

Description
Feature: High Efficiency Package Bag: Open Mouth Bag
Electric Supply: 220V / 380V Weighing Type: Screw Weigher
Power: 4 KW Weighing Precision: 0.3-0.5%
Air Pressure: 0.4-0.6 MPa Stainless Steel: Stainless Steel / Carbon Steel
HS Code: 8422400000
Highlight:

15kg Powder Weighing And Filling Machine

,

15kg automatic weighing and filling machine

,

15kg powder bag packing machine

Net Weighing Type Double Screw Powder Packaging Production Line In Minerals Industry



Application Scope

Automatic weighing packaging for powder or fine particles materials in pharmaceutical, chemical, fertilizer, pesticide, additive, flour, food and other industries.

Working Flow

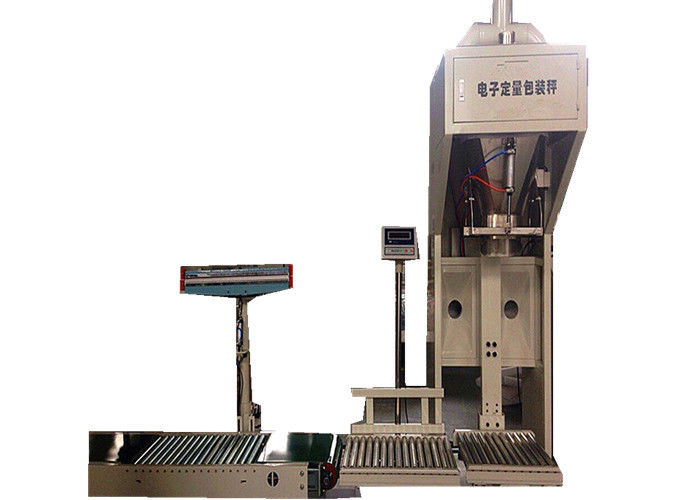

Raw material silo → Packing unit → manual Bagging → automatic Measurement → automatic bag discharge → Conveyor → automatic Sewing machine.




Brief Introduction



This packaging machine including weighing, filling, sealing and some other functions.
Design for powdery material's packaging.
Suitable for many kinds of powdery and fine granular material's packaging.

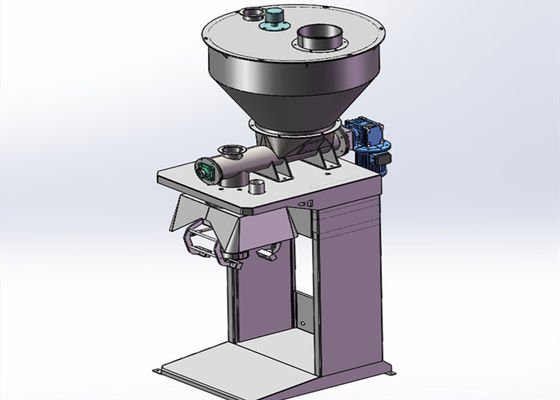

The machine uses double auger feeder.
Keep a high packaging accuracy, if the working place is dusty.
We can deploy industrial vacuum cleaner for you.
The whole machine is made of stainless steel .
The key equipment’s are all use famous brands. So it with high accuracy and high speed.


Technical Parameters



Packing Machine



Weighing capacity: 2 to 5 packs / min
Weighing range: 10-50 kg/bag
Weighing error: ±0.5%
Control method: instrument control
Power supply: AC380V
Host power: 1.5kw
Gas supply: oil-free, dust-free instrument gas
Pressure: 0.4---0.7MPa
Gas consumption: 0.4Nm3/min



Sewing machine

Sealing sewing machine model: GK35-6A
Maximum sewing speed: 1700 stitches / min
Pitch length: 6.5-11mm
Maximum sewing thickness: 8 mm
Stitch form: double-line chain seam
Suture specification: 21S/5, 20S/3 polyester thread, 30S/cotton thread
Power source: AC380V
Power: 0.55kw


Machine Main Components List



No  Name Model Manufacturer QTY
1 Control system   Canada Germaine 1
2 Weighing controller   Canada Germaine 1
3 Weighing sensor   Avionics 1
4 Approach switch BN-M18 Omron 1
5 Optoelectronic switch FQ31-TO8P Omron 1
6 Other low-pressure component   Zhengtai 1batch
7 Motor   Zhengjiang China 1batch
8 Cylinder   AIRTAC 1batch
9 Magnetic valve   AIRTAC 1batch
10 Other pneumatic element   AIRTAC 1batch



Features:



1, Weighing speed, high precision;

2, Using Germain weighing instruments, high-quality sensors, solenoid valves, etc., good reliability, long life, less maintenance

3, Can store 20 kinds of formula, can easily change the packaging machine parameters

4, The whole machine with carbon steel, contact part of the use of stainless steel 304.

5, Fully enclosed bag switch, control system sealed well.

6, With lack of material and tolerance alarm function.



Pre-sale service


1. Introducing detail features and application of the products to customer.
2. Selecting economical and practical machines for customer.
3. Providing operation data of the related machine.
4. Providing means of trial performance for customer.
5. Flow chart and factory designing layout.


Package bag examples:

Double Screw 15kg Powder Weighing And Filling Machine 0



Packaging and Delivery


1. Wooden case after fumigation treatment. No need timber inspection.
2. All the spare parts are packaged by soft materials, to avoid damages during delivery; at last, we'll cover plastic wrap out it to make sure Waterproof and rust proof.



Double Screw 15kg Powder Weighing And Filling Machine 1


WHY CHOOSE US



1. Professional design team and sales department

2. Made in China golden supplier

3. Professional, reliable, honest, manufacturer.

4. Good reputation from long-term partner, agency, and client.

5. We offer most suitable and efficient packaging solution according to your specific requirements.

6. 24/7 after sale service. Includes on-line service or send working videos.
