Product Details:
|
| Condition: | New | Package Bag: | Open Mouth Bag |
|---|---|---|---|
| Function: | Weighing, Filling, Sealing | Weighing Type: | Screw Weigher |
| Power: | 4 KW | Weighing Precision: | 0.3-0.5% |
| Air Pressure: | 0.4-0.6 MPa | Conveyor Length: | 3 Meters |
| HS Code: | 8422400000 | ||
| Highlight: | 25kg Powder Bag Packing Machine,316SS Powder Bag Packing Machine,25kg dry powder packing machine |
||

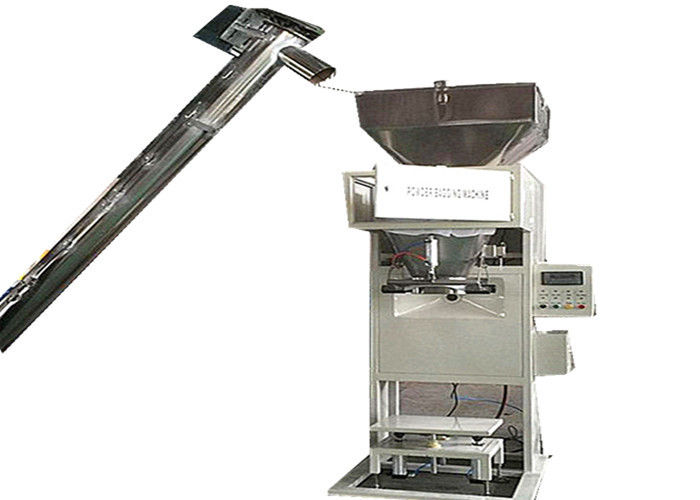

Double Screw 25kg Powder Packing Machine In Grain Industry , 316 Stainless Steel
Brief Introduction
The powder filling machine is mostly used for the bulk products like the powdery or fine granular materials volumetric metering and dosing. By linkingto the screw feeder to set up the system for premade pouch 5kg, 10kg, 25kg, 50-100gkg etc.
This packaging machine including weighing, filling, sealing and some other functions.
Design for powdery material's packaging.
Suitable for many kinds of powdery and fine granular material's packaging.
Application Scope
Automatic weighing packaging for powder or fine particles materials in pharmaceutical, chemical, fertilizer, pesticide, additive, flour, food and other industries.
Working Flow

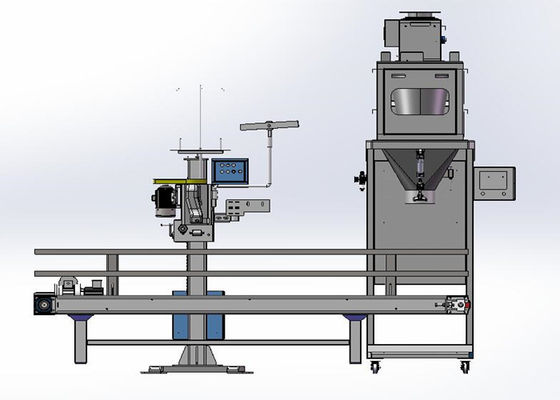

Raw material silo → Packing unit → manual Bagging → automatic Measurement → automatic bag discharge → Conveyor → automatic Sewing machine.
Technical Parameters
| Weighing range | 10-50kg |
| Weighing accuracy | ±0.5% |
| Weighing rate | 180-240 bags/h |
| Power/current | 5kW/10A |
| Air supply pressure | 0.36MPa |
| Metering mode | Suspension sensor |
| Frequency/voltage | 220V / 50 Hz / 3 phase (can change as your requirement) |
| Power supply mode | 3-phase 5-wire system (can change as your requirement) |
| External dimensions (L*W*H) | 4000*2000*3500(mm) |
| Unit weight | 1200 kg |
Features:
1, Weighing speed, high precision;
2, Using Germain weighing instruments, high-quality sensors, solenoid valves, etc., good reliability, long life, less maintenance
3, Can store 20 kinds of formula, can easily change the packaging machine parameters
4, The whole machine with carbon steel, contact part of the use of stainless steel 304.
5, Fully enclosed bag switch, control system sealed well.
6, With lack of material and tolerance alarm function.
Machine Main Components List
| No | Name | Model | Manufacturer | QTY |
| 1 | Control system | Canada Germaine | 1 | |
| 2 | Weighing controller | Canada Germaine | 1 | |
| 3 | Weighing sensor | Avionics | 1 | |
| 4 | Approach switch | BN-M18 | Omron | 1 |
| 5 | Optoelectronic switch | FQ31-TO8P | Omron | 1 |
| 6 | Other low-pressure component | Zhengtai | 1batch | |
| 7 | Motor | Zhengjiang China | 1batch | |
| 8 | Cylinder | AIRTAC | 1batch | |
| 9 | Magnetic valve | AIRTAC | 1batch | |
| 10 | Other pneumatic element | AIRTAC | 1batch |
Package bag examples:
Pre-sale service
1. Introducing detail features and application of the products to customer.
2. Selecting economical and practical machines for customer.
3. Providing operation data of the related machine.
4. Providing means of trial performance for customer.
5. Flow chart and factory designing layout.
Packaging and Delivery
1. Wooden case after fumigation treatment. No need timber inspection.
2. All the spare parts are packaged by soft materials, to avoid damages during delivery; at last, we'll cover plastic wrap out it to make sure Waterproof and rust proof.
WHY CHOOSE US
1. Professional design team and sales department
2. Made in China golden supplier
3. Professional, reliable, honest, manufacturer.
4. Good reputation from long-term partner, agency, and client.
5. We offer most suitable and efficient packaging solution according to your specific requirements.
6. 24/7 after sale service. Includes on-line service or send working videos.
