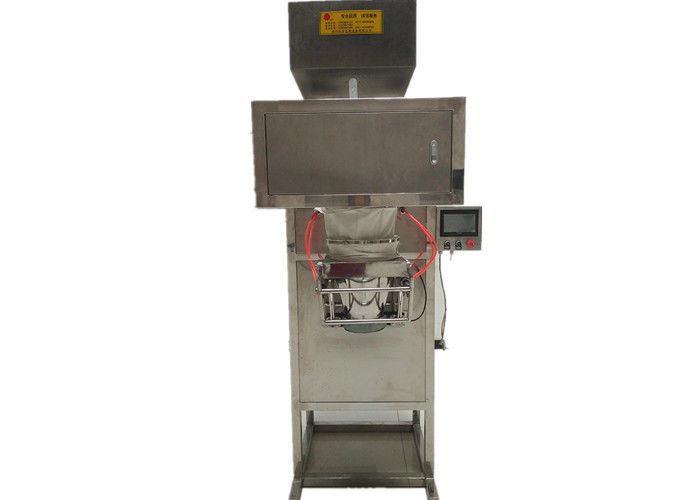

Carbon Steel 40Kg Bag Weigh Filler Packaging Machine

Carbon Steel Powder Weighing And Filling Machine In Additives Industry, 40 Kg Bag

Brief Introduction


The powder filling machine is mostly used for the bulk products like the powdery or fine granular materials volumetric metering and dosing. By linking
to the screw feeder to set up the system for premade pouch 5kg, 10kg, 25kg, 50-100gkg etc.

This packaging machine including weighing, filling, sealing and some other functions.
Design for powdery material's packaging.
Suitable for many kinds of powdery and fine granular material's packaging.
The machine use double auger feeder.
Keep a high packaging accuracy, if the working place is dusty.
We can deploy industrial vacuum cleaner for you.
The whole machine is made of stainless steel .
The key equipment’s are all use famous brands. So it with high accuracy and high speed.


Application Scope

Automatic weighing packaging for powder or fine particles materials in pharmaceutical, chemical, fertilizer, pesticide, additive, flour, food, and other industries.

Technical Parameters

1.Bagging machine

Weighing capacity: 2 to 5 packs / min
Weighing range: 10-50 kg/bag
Weighing error: ±0.5%
Control method: instrument control
Power supply: AC380V
Host power: 1.5kw
Gas supply: oil-free, dust-free instrument gas
Pressure: 0.4---0.7MPa
Gas consumption: 0.4Nm3/min

2.Conveyor:
Conveyor length: 3m
Conveying speed: 5-20m/min (adjustable)
Conveyor belt width: 400mm
Maximum conveying capacity: 15 bags / min
Power supply: AC380V
Power: 0.75kw

Design Highlights

1. The powder stored in hopper will flow into filling bag automatically.
2. The fast filling valve will be shut off when it reaches level "1" while the slow filling is activated.
3. After arriving at level "2", filling process is completed and the bag is released.
4. With semi-automatic sealing machine: Sealing speed 5m/min.
5. With height adjustable function, it helps bag match the sealing machine.
6. With foot switch to turn on the sealing process.

Machine Main Components List


Packaging and Delivery

1. Wooden box after fumigation treatment. No need timber inspection.
2. All the spare parts are packaged by soft materials, to avoid damages during delivery.


After-sale service
1. Training of equipment maintenance and operating personally.
2. Installation and commissioning of equipment until everything is functional.
3. One-year warranty and Providing long-term maintenance service and spare parts.
4. Giving technical support to customer for developing new product.
5. Engineers available to service machinery overseas.
6. Provide English Version of Installation/Operation/Service/Maintenance Manual.

Our Advantages

Research and Development Ability: Our own research and development department, customized design
Quality Guarantee: Domestic and imported numerical control equipment, rice experience
Business Scope: All kids of bulk material packing machine and palletizing robot system, can design the whole packing line
Our certificates: Over 200 national patent certificates, awarded scientific research project
Sales Service: Capable after-sale team, lifelong technical service and innovation.
