Product Details:
|
| Weighing Sensor: | Load Cell | Controller: | Canada Germain |
|---|---|---|---|
| Accessories Included: | User Manual, Tools, Spare Parts | Voltage: | 380V |
| Key Selling Point: | Easy To Handle | Frequency: | 50-60Hz |
| Packing Speed: | 100-180 Bags Per Hour (calculate By Flour 25 Kg) | Air Pressure: | 0.4-0.6 MPa |
| Power: | 4 KW | ||
| Highlight: | 30Kg Bag Powder Weighing And Filling Machine,30Kg powder bag packing machine,30Kg bag powder filling packing machine |
||

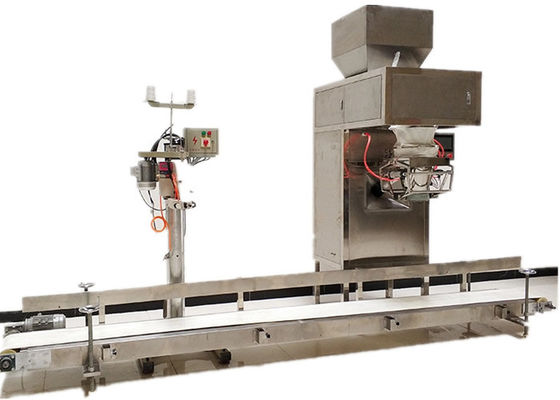

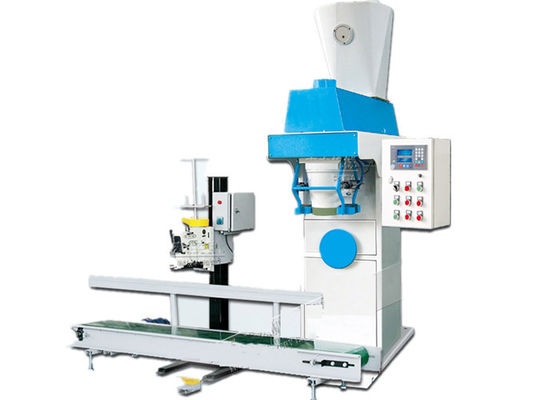

CE Certification Powder Weighing And Filling Machine In Pesticide Industry , 30 Kg Bag
Brief Introduction
This packing machine uses advanced design, compact body; high accuracy, which makes the area minimization; this model is suitable for equipment renovation or plant has been installed in the case of use of the storage silos.
Granule quantitative packing machine adopt instrument control and weighing systems according to dust, water, corrosion design requirements.
Procedure
Raw material silo → Packing unit → manual Bagging → automatic Measurement → automatic bag discharge → Conveyor → automatic Sewing machine.
Technical Parameters
1.Bagging machine
Weighing capacity: 2 to 5 packs / min
Weighing range: 10-50 kg/bag
Weighing error: ±0.5%
Control method: instrument control
Power supply: AC380V
Host power: 1.5kw
Gas supply: oil-free, dust-free instrument gas
Pressure: 0.4---0.7MPa
Gas consumption: 0.4Nm3/min
2.Conveyor:
Conveyor length: 3m
Conveying speed: 5-20m/min (adjustable)
Conveyor belt width: 400mm
Maximum conveying capacity: 15 bags / min
Power supply: AC380V
Power: 0.75kw
3.Sewing machine:
Sealing sewing machine model: GK35-6A
Maximum sewing speed: 1700 stitches / min
Pitch length: 6.5-11mm
Maximum sewing thickness: 8 mm
Stitch form: double-line chain seam
Suture specification: 21S/5, 20S/3 polyester thread, 30S/cotton thread
Power source: AC380V
Power: 0.55kw
Features:
1, Weighing speed, high precision;
2, Using Germain weighing instruments, high-quality sensors, solenoid valves, etc., good reliability, long life, less maintenance
3, Can store 20 kinds of formula, can easily change the packaging machine parameters
4, The whole machine with carbon steel, contact part of the use of stainless steel 304.
5, Fully enclosed bag switch, control system sealed well.
6, With lack of material and tolerance alarm function.
7, Automatic zero, automatic taring, automatic error correction, automatic fault diagnosis.
Machine Main Components List
| No | Name | Model | Manufacturer | QTY |
| 1 | Control system | Canada Germaine | 1 | |
| 2 | Weighing controller | Canada Germaine | 1 | |
| 3 | Weighing sensor | Avionics | 1 | |
| 4 | Approach switch | BN-M18 | Omron | 1 |
| 5 | Optoelectronic switch | FQ31-TO8P | Omron | 1 |
| 6 | Other low-pressure component | Zhengtai | 1batch | |
| 7 | Motor | Zhengjiang China | 1batch | |
| 8 | Cylinder | AIRTAC | 1batch | |
| 9 | Magnetic valve | AIRTAC | 1batch | |
| 10 | Other pneumatic element | AIRTAC | 1batch |
Packaging and Delivery
1. Wooden box after fumigation treatment. No need timber inspection.
2. All the spare parts are packaged by soft materials, to avoid damages during delivery; at last, we'll cover plastic wrap out it to make sure Waterproof and rust proof.
Pre-sale service
1. Introducing detail features and application of the products to customer.
2. Selecting economical and practical machines for customer.
3. Providing operation data of the related machine.
4. Providing means of trial performance for customer.
5. Flow chart and factory designing layout.
Why Choose Us
1. Professional design team and sales department
2. Made in China golden supplier
3. Professional, reliable, honest, manufacturer.
4. Good reputation from long-term partner, agency, and client.
5. We offer most suitable and efficient packaging solution according to your specific requirements.
6. 24/7 after sale service. Includes on-line service or send working videos.
