Product Details:
|
| Capacity: | 300-580 Bags/ Hour | Discharge Pressure: | 0.7-0.5 Mpa |
|---|---|---|---|
| Machine Weight: | 400-600kg | Machine Size: | 2300*900*30000 Mm |
| Weighing Controller: | Germain System | Display Type: | Touch Screen/buttons |
| Package Type: | Normal Open Mouth Bag Or M Type Bag, Material OEM | Way To Change Package Weight: | By Changing Formula In Controller |
| Weighing Sensor: | Telode | ||
| Highlight: | Sugar Additives 20 Kg Packing Machine,20kg Woven Bag Vertical Packing Machine,580 Bags/ Hour Vertical Packing Machine |
||

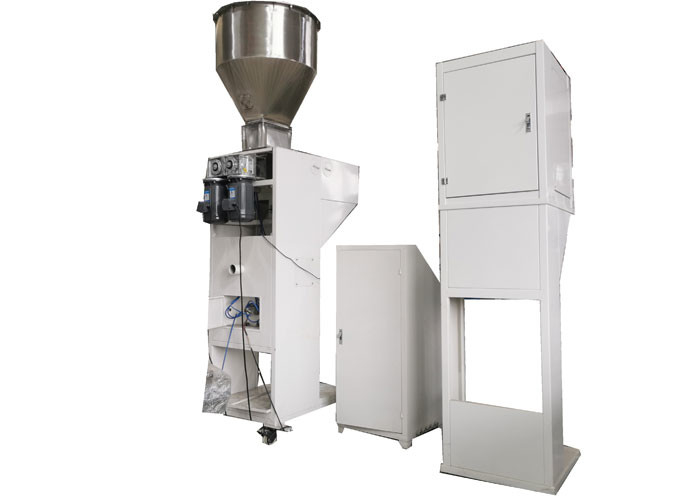

20kg Woven Bag Automatic Vertical Packing Machine In Sugar Additives Industry
Machine Parameters
| Technical Parameters | |
| Type | 5-50kg Double Bucket Granule Packing Scale |
| Weighing Capacity | 8-15bags/min |
| Weighing Range | 5-60kg/package |
| Weighing Error | 0.2-2% |
| Control Method | Meter + Touch screen |
| Power Supply | AC380V |
| Host Power | 3KW |
| Gas Supply | oil-free, dust-free instrument gas |
| Pressure | 0.4---0.6Mpa |
Machine Features
Packing machine with three level filling speed: fast, medium and slow.
Packing machine matching high precision with high intelligent meter. With the correct sensor function, helping to reduce sensor errors, automatic packing machine improve accuracy of measurement and control system.
The packing machine adopting import pneumatic actuator which is reliable, non-polluted and easy to be maintained.
Conveyor platform height and conveying speed adjustable of this packing machine.
The part contact with the material use 304 stainless steel which is safe, clean and not easy to be eroded and life of the packing machine is long.
The bag clamping and discharging are controller by limit system.
Print and date communication function optional.
Components list
| No | Name | Model | Manufacturer | QTY |
| 1 | Control system | Canada Germaine | 1 | |
| 2 | Weighing controller | Canada Germaine | 1 | |
| 3 | Weighing sensor | Toledo | 1 | |
| 4 | Approach switch | BN-M18 | Omron | 1 |
| 5 | Optoelectronic switch | FQ31-TO8P | Omron | 1 |
| 6 | Other low-pressure component | Zhengtai | 1batch | |
| 7 | Motor | Zhengjiang China | 1batch | |
| 8 | Cylinder | AIRTAC | 1batch | |
| 9 | Magnetic valve | AIRTAC | 1batch |
Installation
The installation can be provided by the EAGLE company.
It must be after shipment has arrived and factory must ready equipped with all necessary requirement before booking installation with EAGLE company. Our engineers will come to the site for the complete and final installation.
During the installation session, a one day training course will be provided to the customer for operation and maintenance procedure.
The purchase at US$80/person/day plus all local transportation, air tickets (round trip), and hotel room & board is provided. Day charges include travel days.
Quality Assurance
1. The warranty period is one year.
2. Ensure that the goods supplied meet the quality specifications and performance of the contract in all respects.
3. Ensure that the equipment has been properly installed and adjusted to meet the contractual requirement after the entire system is in operation.
4. Provide quantitative packaging scales with advanced design and excellent materials. The main components are selected from famous domestic and foreign manufacturers.
Our Service
We Promise Customer Perfect Guarantee and After-Service
As for EAGLE packaging machine, our company provides 12 months for all mechanical parts except for electrical and electronic parts and those subjects to normal wear and tear. Meanwhile, the guarantee starts from the shipment (B/L date). The guarantee is intended limited to the replacement of the broken part after checking the construction fault. The guarantee declines in the case the customer proceeds, without proper consent, to the replacement, modification, or repair of parts. The inspection of the causes of the trouble or the breakdown of the parts is exclusively up to the manufacturing company. All in all, our company can offer you assured products.
Packaging and Delivery
The packing machine before sent to you will installation and testing welled then whole set packed in the big wooden box then in container.
Inner package with stretch film, out package with export wooden box(with metal frame more safe and non-fumigation wooden), avoid the packing machine broken.
When you received the packing machine, you no need installation again, connect your electric wire and air source to the packing machine then can working.
Shipping port: Shanghai/ Ningbo / Nanchang port or other port you need.
