Product Details:
|
| Capacity: | 5-8 Bag Per Minute | Weighing Range: | 5-50kg |
|---|---|---|---|
| Precision: | ±0.2-0.5% | Automatic Grade: | Semi-automatic(need One Person) |
| Trademark: | SAIMO EAGLE | HS CODE: | 8422400090 |
| Conveyor Length: | 3 Meters Belt/ Roller Type | Sensor: | Quantity 4 Pcs |
| Hopper Volume: | 0.3 CBM | ||
| Highlight: | 50kg Pellet Packing Machine,Vegetable Pellet Packing Machine,Touch Screen Pellet Packing Machine |
||

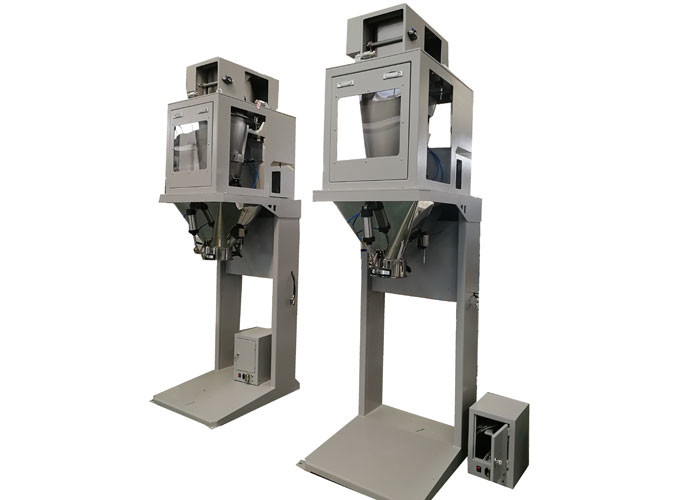

Open Mouth Bag Vegetable Pellet Packing Machine In Food Industry
Machine Charactistics
Manual Bagging System equipped with electronic gross weighing system to meet international standards and provide high accuracy and reliability. The simple construction and sturdy design ensure safe and accurate operation. It is designed to operate in a wide range of industries such as food, feed, chemicals and building materials. The system can be equipped with a range of feeding devices (high-speed or standard gravity, belt, screw and vibratory feeder).
Technical Parameters
| Technical Parameters | |
| Type | 5-50kg Double Bucket Granule Packing Scale |
| Weighing Capacity | 8-15bags/min |
| Weighing Range | 5-60kg/package |
| Weighing Error | 0.2-2% |
| Control Method | Meter + Touch screen |
| Power Supply | AC380V |
| Host Power | 3KW |
| Gas Supply | oil-free, dust-free instrument gas |
| Pressure | 0.4---0.6Mpa |
| No | Name | Model | Manufacturer | QTY |
| 1 | Control system | Canada Germaine | 1 | |
| 2 | Weighing controller | Canada Germaine | 1 | |
| 3 | Weighing sensor | Toledo | 1 | |
| 4 | Approach switch | BN-M18 | Omron | 1 |
| 5 | Optoelectronic switch | FQ31-TO8P | Omron | 1 |
| 6 |
Contactor & breaker |
Zhengtai | 10 | |
| 7 | Other low-pressure component | Zhengtai | 1batch | |
| 8 | Motor | Zhengjiang China | 1batch | |
| 9 | Cylinder | AIRTAC | 1batch | |
| 10 | Magnetic valve | AIRTAC | 1batch | |
| 11 | Other pneumatic element | AIRTAC | 1batch |
Installation
The installation can be provided by the EAGLE company.
During the installation session, a one day training course will be provided to the customer for operation and maintenance procedure.
The purchase at US$100/person/day plus all local transportation, air tickets (round trip), and hotel room & board is provided. Day charges include travel days.
It must be after shipment has arrived and factory must ready equipped with all necessary requirement before booking installation with EAGLE company. Our engineers will come to the site for the complete and final installation.
Quality Assurance
1. The warranty period is one year.
2. Ensure that the goods supplied meet the quality specifications and performance of the contract in all respects.
3. Ensure that the equipment has been properly installed and adjusted to meet the contractual requirement after the entire system is in operation.
4. Provide quantitative packaging scales with advanced design and excellent materials. The main components are selected from famous domestic and foreign manufacturers.
5. If the quality or specification of the goods is found to be inconsistent with the contract, or the goods are defective, the buyer has the right to exchange the parts and return he goods.
Packaging and Shipping
Shipping port: Shanghai/ Ningbo / Nanchang port or other port you need.
The packing machine before sent to you will installation and testing welled then whole set packed in the big wooden box then in container.
Inner package with stretch film, out package with export wooden box(with metal frame more safe and non-fumigation wooden), avoid the packing machine broken.
When you received the packing machine, you no need installation again, connect your electric wire and air source to the packing machine then can working.
Our Service
We Promise Customer Perfect Guarantee and After-Service
As for EAGLE packaging machine, our company provides 12 months for all mechanical parts except for electrical and electronic parts and those subjects to normal wear and tear. Meanwhile, the guarantee starts from the shipment (B/L date). The guarantee is intended limited to the replacement of the broken part after checking the construction fault. The guarantee declines in the case the customer proceeds, without proper consent, to the replacement, modification, or repair of parts. The inspection of the causes of the trouble or the breakdown of the parts is exclusively up to the manufacturing company. All in all, our company can offer you assured products.
