Product Details:
|
| Capacity: | 6-10 BPM | Conveyor Length: | 3 Meters Long |
|---|---|---|---|
| Accuracy: | ±0.2%-0.5% | Hopper Volume: | 0.3 CBM |
| Weighing Range: | 5-50kg | Automatic Grade: | Semi-automatic |
| Electrical Components: | AirTAC | Load Cell: | Telode Brand |
| Free Air Capacity: | 0.1 M3/Min | ||
| Highlight: | Stainless Steel Hopper Rice Bagging Machine,60kg Rice Bagging Machine,60kg Rice Weighing Machine |
||

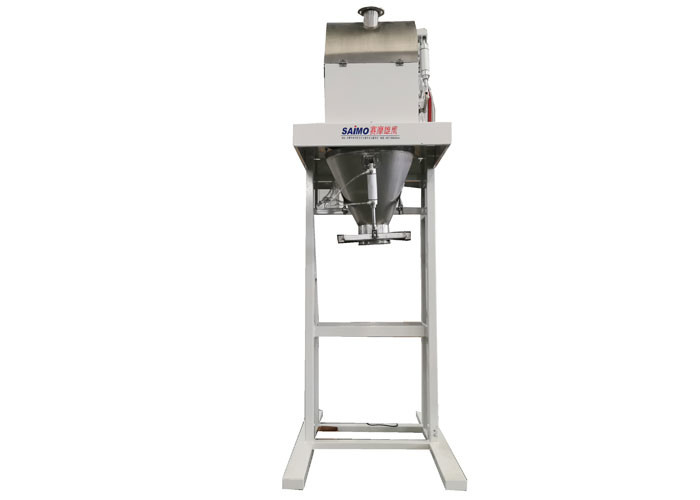

Saimo Eagle 60kg CE Automatic Rice Weighing Bagging Machine With Stainless Steel Hopper
Application Scope
Manual Bagging System equipped with electronic gross weighing system to meet international standards and provide high accuracy and reliability. The simple construction and sturdy design ensure safe and accurate operation. It is designed to operate in a wide range of industries such as food, feed, chemicals and building materials. The system can be equipped with a range of feeding devices (high-speed or standard gravity, belt, screw and vibratory feeder).
Technical Parameters
| Technical Parameters | |
| Type | 5-50kg Double Bucket Granule Packing Scale |
| Weighing Capacity | 8-15bags/min |
| Weighing Range | 5-60kg/package |
| Weighing Error | 0.2-2% |
| Control Method | Meter + Touch screen |
| Power Supply | AC380V |
| Host Power | 3KW |
| Gas Supply | oil-free, dust-free instrument gas |
| Pressure | 0.4---0.6Mpa |
| Transport Machine Technical Parameters | |
| Conveyor Length | 3000mm |
| Conveyor Speed | 5-20m/min |
| Conveyor Belt Width | 400mm |
| Maximum Conveying Capacity | 10-15 bags / min |
| Power Supply | AC380V |
| Power | 0.75KW |
Main machine components list
| No | Name | Model | Manufacturer | QTY |
| 1 | Control system | Canada Germaine | 1 | |
| 2 | Weighing controller | Canada Germaine | 1 | |
| 3 | Weighing sensor | Toledo | 1 | |
| 4 | Approach switch | BN-M18 | Omron | 1 |
| 5 | Optoelectronic switch | FQ31-TO8P | Omron | 1 |
| 6 |
Contactor & breaker |
Zhengtai | 10 | |
| 7 | Other low-pressure component | Zhengtai | 1batch | |
| 8 | Motor | Zhengjiang China | 1batch | |
| 9 | Cylinder | AIRTAC | 1batch |
Machine Installation
The installation can be provided by the EAGLE company.
It must be after shipment has arrived and factory must ready equipped with all necessary requirement before booking installation with EAGLE company. Our engineers will come to the site for the complete and final installation.
During the installation session, a one day training course will be provided to the customer for operation and maintenance procedure.
The purchase at US$80/person/day plus all local transportation, air tickets (round trip), and hotel room & board is provided. Day charges include travel days.
Product Process
Obtain raw materials, cutting, laser, shearing, bending
Assembling, welding
Surface treatment: grinding, polishing, pickling
Assembling, finish circuit boards
Test machine before delivery
QC give inspection report, then arrange delivery
Application Range
Our packaging machine is widely used in feed, fertilizer, grain, chemical industry, building materials,
starch, food, rubber and plastics, hardware, minerals, covering more than 20 industries, more than 3,000 kinds of materials.
Machine Features
Automatic weighing, filling and packing for granular material.
Precise weighing and bagging.
All automatic control of fast and slow intake, weighing and letting down of the bag
All the working parameters are input on the mimic panel.
Auto minus of the weight and auto zero resetting.
The imported intellective weighing instrument can display the gross weight and net weight at the same time.
Automatic test and correct the weighing errors
Packaging and Shipping
Clean the machine and film wrap it
Fix the bottom of the equipment
Check the accessories all packed well
Close the wooden case
Print the mark and stick it on the wooden case
Loading, entering the warehouse
Our Service
We Promise Customer Perfect Guarantee and After-Service
As for EAGLE packaging machine, our company provides 12 months for all mechanical parts except for electrical and electronic parts and those subjects to normal wear and tear. Meanwhile, the guarantee starts from the shipment (B/L date). The guarantee is intended limited to the replacement of the broken part after checking the construction fault. The guarantee declines in the case the customer proceeds, without proper consent, to the replacement, modification, or repair of parts. The inspection of the causes of the trouble or the breakdown of the parts is exclusively up to the manufacturing company. All in all, our company can offer you assured products.
FAQ
Q: How about the guarantee period?
A: One-year whole machine guarantee.
Q: What's the payment term?
A: L/C or TT is accepted.
Q: What is the lead time?
A: 15-20 days after received the deposit.
Q: What is the material of contact material parts?
A: The contact material parts are made of 304 stainless steel. The machine body can be 304 stainless steel or carbon steel.
Q: Can this machine make different bag sizes?
A: Yes, we can be formulated according to your requirements.
