Product Details:
|
| Packing Speed: | 6-10 Bags / Minute (depend On Different Material) | Automatic Grade: | Semi-automatic(need One Person) |
|---|---|---|---|
| Trademark: | SAIMO EAGLE Brand | Weighing Range: | 10-50kg |
| Custom HS CODE: | 8422400090 | Conveyor Length: | Normally Belt Type |
| Precision: | ±0.2-0.5% | Sensor: | 4-6 |
| Hopper Volume: | 0.3 CBM Or OEM | ||
| Highlight: | 50 Pounds Fertilizer Bagging Machine,50 Pounds Paper Bag Packing Machine,Fertilizer Industry Paper Bag Packing Machine |
||

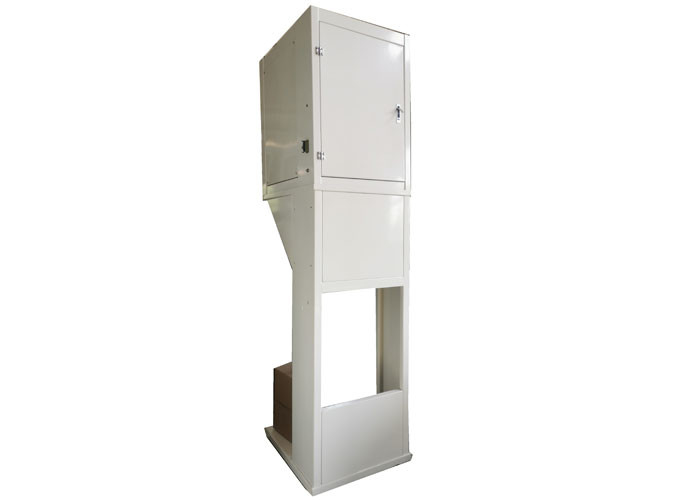

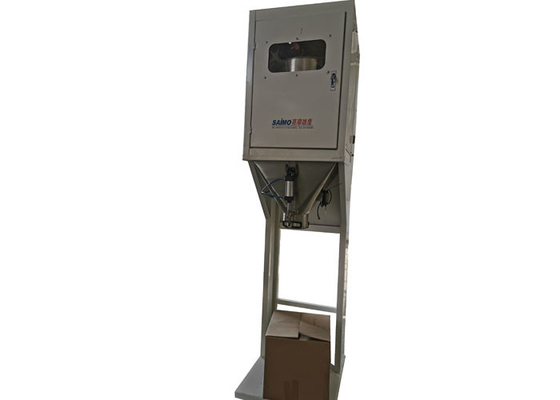

Paper Bag Packing Machine 50 Pounds Fertilizer Bagging Machine In Fertilizer Industry
Application Scope
The automatic granule packing machine adopts microcomputer control, which is easy to operate, stable, fast and accurate; it has functions such as precise weighing sensor, energy-saving components, automatic error correction, etc.; It is designed to operate in a wide range of industries such as food, feed, chemicals and building materials. The system can be equipped with a range of feeding devices (high-speed or standard gravity, belt, screw and vibratory feeder).
| Transport Machine Technical Parameters | |
| Conveyor Length | 3000mm |
| Conveyor Speed | 5-20m/min |
| Conveyor Belt Width | 400mm |
| Maximum Conveying Capacity | 10-15 bags / min |
| Power Supply | AC380V |
| Power | 0.75KW |
Main machine components list
| No | Name | Model | Manufacturer | QTY |
| 1 | Control system | Canada Germaine | 1 | |
| 2 | Weighing controller | Canada Germaine | 1 | |
| 3 | Weighing sensor | Toledo | 1 | |
| 4 | Approach switch | BN-M18 | Omron | 1 |
| 5 | Optoelectronic switch | FQ31-TO8P | Omron | 1 |
| 6 | Contactor & breaker | Zhengtai | 10 | |
| 7 | Other low-pressure component | Zhengtai | 1batch | |
| 8 | Motor | Zhengjiang China | 1batch | |
| 9 | Cylinder | AIRTAC | 1batch | |
| 10 | Magnetic valve | AIRTAC | 1batch | |
| 11 | Other pneumatic element | AIRTAC | 1batch |
| Weighing Machine Technical Parameters | |
| Type | 5-50kg Double Bucket Granule Packing Scale |
| Weighing Capacity | 8-15bags/min |
| Weighing Range | 5-60kg/package |
| Weighing Error | 0.2-2% |
| Control Method | Meter + Touch screen |
| Power Supply | AC380V |
| Host Power | 3KW |
| Gas Supply | oil-free, dust-free instrument gas |
| Pressure | 0.4---0.6Mpa |
Machine Main Parts
The load cell we installation 3-4pcs Toledo load cell (max weight 200kg/pc, IP67).
The bagging machine can stable working 10 years.
Our packing machine accessories all use the famous brand, such as pneumatic element use the AirTAC,
HMI (color touch screen panel) use the Germain / Unipulse (customized), the electric element we use the Schneider
Machine Features
♦. Reasonable mechanical structure, easy to change size parts and clean up.
♦. We use famous brand electric, more steady .
♦. Machine working with small noisy.
♦. All machine can be made of SUS 304 material.
Installation
The installation can be provided by the EAGLE company.
During the installation session, a one day training course will be provided to the customer for operation and maintenance procedure.
The purchase at US$100/person/day plus all local transportation, air tickets (round trip), and hotel room & board is provided. Day charges include travel days.
It must be after shipment has arrived and factory must ready equipped with all necessary requirement before booking installation with EAGLE company. Our engineers will come to the site for the complete and final installation.
Packaging and Shipping
Clean the machine and film wrap it
Fix the bottom of the equipment
Check the accessories all packed well
Close the wooden case
Print the mark and stick it on the wooden case
Loading, entering the warehouse
Our Service
We Promise Customer Perfect Guarantee and After-Service
As for EAGLE packaging machine, our company provides 12 months for all mechanical parts except for electrical and electronic parts and those subjects to normal wear and tear. Meanwhile, the guarantee starts from the shipment (B/L date). The guarantee is intended limited to the replacement of the broken part after checking the construction fault. The guarantee declines in the case the customer proceeds, without proper consent, to the replacement, modification, or repair of parts. The inspection of the causes of the trouble or the breakdown of the parts is exclusively up to the manufacturing company. All in all, our company can offer you assured products.
