Product Details:
|
| Origin: | Anhui, China | Product Capacity: | 600 Cartons/hour |
|---|---|---|---|
| Application: | Bag, Carton, Drum Etc. | Voltage: | 3 Phases Oem |
| Power: | 220V/380V, 50-60Hz | Controller: | PLC And Cabinet |
| Robot Gripper: | Designed According To Product | Language: | English Or Other Language/ Customized |
| Highlight: | Food Industry Robot Palletizer System,Beverage Industry Robot Palletizer System,600 Cartons/Hour Robot Palletizer System |
||

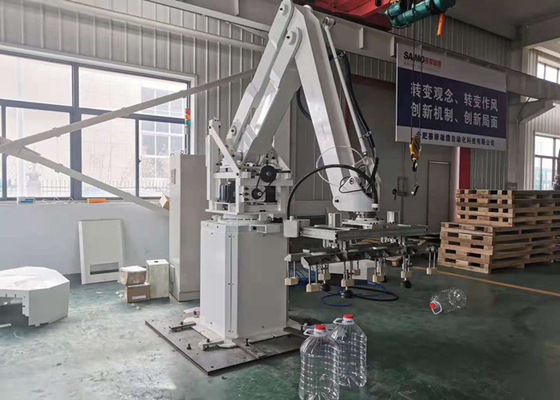

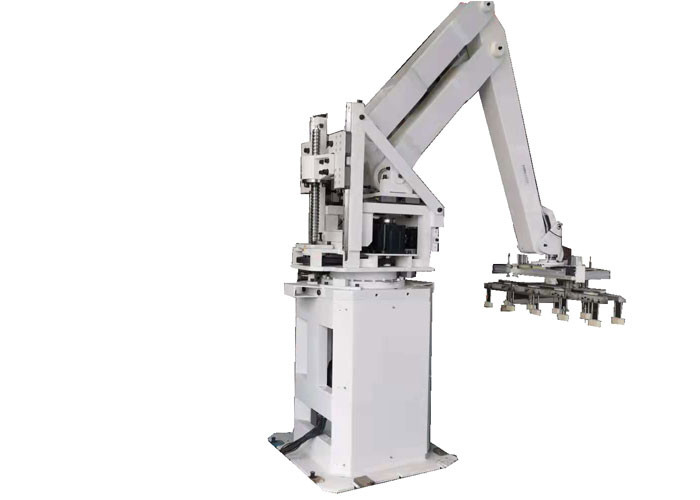

Robot Palletizer System In Food And Beverage Industry - 600 Package Per Hour
Brief Introduction
SR series robot's excellent accuracy, speed, and efficient and stable performance enable a robot to complete the palletizing requirements of multiple production lines at the same time. Robot load capacity 120KG-300KG, can be suitable for feed, chemical, grain and oil, food, building materials, daily chemical, alcohol, beverage, medicine, home appliances, 3C electronics and other industries.
Product Application
The robot palletizer can be used at any production line, providing intelligent, rogotic and network for production site. It is a palletizing logistic system which can be used in the industry of beer, beverage and foodstuff etc., widely usde for carton, plastic crate, bottle, bag, barrel, shrink wrapped product and cans etc.
Main Electrical Components List
| No | Parts name | Model | QTY | Supplier | Note |
| 1 | A axis servo motor | MSME202G1H | 1 | Panasonic | Japan |
| 2 | B axis servo motor | MDME202G1H | 1 | Panasonic | Japan |
| 3 | C axis servo motor | MDME202G1H | 1 | Panasonic | Japan |
| 4 | D axis servo motor | MSMD042G1U | 1 | Panasonic | Japan |
| 5 | B axis synchronous belt | OMEGA HP B20 | 1 | OPTIBELT | Germany |
| 6 | C axis synchronous belt | OMEGA HP B15 | 1 | OPTIBELT | Germany |
| 7 | B axis screw | R50*20-S | 1 | HIWIN | Taiwan |
| 8 | C axis screw | R45*12-S | 1 | HIWIN | Taiwan |
| 9 | B axis slider, guild rail | SNS35LR2SSC1-690 | 2 | THK | Japan |
| 10 | C axis slider, guild rail | SNS35LR2SSC1-520 | 2 | THK | Japan |
| 11 | A axis reducer | FC-A75-69 | 1 | Sumitomo | Japan |
| 12 | D axis reducer | F2C-T155 | 1 | Sumitomo | |
| 13 | Control chip | / | 1 | ADI | America |
Technical Parameters
| Model No. | XY-SR-210 | ||
| Drive | AC servo motor drive | ||
| Installation | On floor | ||
| Max Palletizing Weight (contains weight of gripper) | 210kgs | ||
| Handing Capacity | 1700 Times/Hour | ||
| Movement Axis | Normally 4 axes: A, B, C, D (can be 6 axis) | ||
| Movement scope | A-Axis(Horizontal) | 1500mm | |
| B-Axis(Vertical) | 2300mm | ||
| C-Axis(Body) | 330° | ||
| D-Axis (Gripper) | 330° | ||
| Location Accuracy | ±0.5mm | ||
| Power | 6.5KVA | ||
| Compressed Air | 0.5Mpa | ||
| Robot Weight(not contains weight of gripper) | 1150kgs (+/-10%) | ||
Function Characteristics
1. Simple structure, low failure rate and convenient maintenance
2. Few main parts and accessories, low maintenance cost
3. High precision - components production is in high quality and stability so that the robots has a very high accuracy.
4. Strong function - a wide range of applications.
5. Versatility - Flexible integration and production.
6. We will recommend our customers different models robot palletizers based on their products and requirements.
Package and Shipping
We can transport the machines by flight, all depend on client's requirement.
Customize Contact Us
You would like to know the detail offer of the machines, please confirm your detail requirements (information as below) for the whole project so that we can suggest the best suitable machine model for you.
1. What's your product? Packed in bag or carton or others?
2. How many packages per hour?
3. Can you send me the layout of your current workshop? We have to design the drawing of the whole line based on your workshop layout. If no, please tell us the available sizes of your workshop.
4. What's the height of full pallet (without the empty pallet thickness)?
5. What's the palletizing type (how many bags per layer, how many layers per pallet, how the bags are put on each layer)?
6. What's the sizes (length, width, height) of empty pallet?
