Product Details:
|
| Name: | Robotic Palletizing System | Drive: | AC Servo Motor Drive |
|---|---|---|---|
| Voltage: | Single Phase 220V , 50Hz | Product Capacity: | 500-800 Cartons/hour |
| A Axis Movement: | 330 ° | Function: | Palletizing , Stacking , Carrying , Packing And So On |
| Package: | Export Wooden Carton | Application: | Beverage , Food , Carton, Bag Etc. |
| Highlight: | 210kgs Robotic Palletizing System,6 Axis Robotic Palletizing System,210kgs 6 axis robot arm |
||

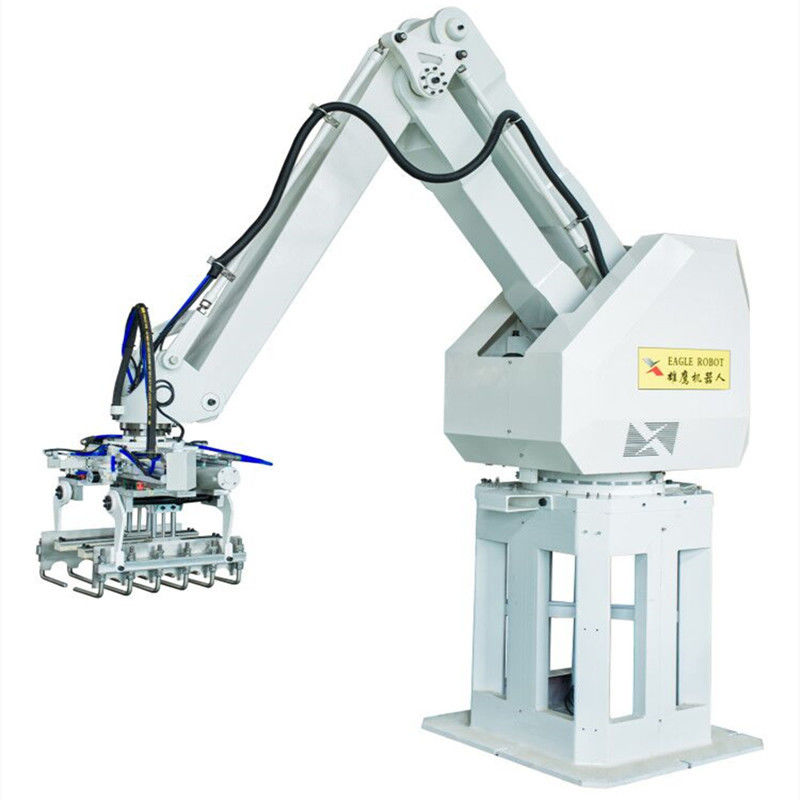

6 Axis 210kgs Robotic Palletizing System AC Servo Motor Drive
Robotic Palletizing System Introduction
Robotic Palletizing System is four-degree cylinder surface coordinate palletizing robot, mainly move by horizontal movement axis, vertical movement axis, rotation foundation and hand axis.Its excellent accuracy, speed, and efficient and stable performance enable a robot to complete the palletizing requirements of multiple production lines at the same time.
Robotic Palletizing System load capacity 120KG-300KG, can be suitable for feed, chemical, grain and oil, food, building materials, daily chemical, alcohol, beverage, medicine, home appliances, 3C electronics and other industries.
Robotic Palletizing System Technical Parameters
| Model No. | XY-SR-210 | ||
| Drive | AC servo motor drive | ||
| Installation | On floor | ||
| Max Palletizing Weight (contains weight of gripper) | 210kgs | ||
| Handing Capacity | 1700 Times/Hour | ||
| Movement Axis | Normally 4 axes: A, B, C, D (can be 6 axis) | ||
| Movement scope | A-Axis(Horizontal) | 1500mm | |
| B-Axis(Vertical) | 2300mm | ||
| C-Axis(Body) | 330° | ||
| D-Axis (Gripper) | 330° | ||
| Location Accuracy | ±0.5mm | ||
| Power | 6.5KVA | ||
| Compressed Air | 0.5Mpa | ||
| Robot Weight(not contains weight of gripper) | 1150kgs (+/-10%) | ||
Main Electrical Components List
| No | Parts name | Model | QTY | Supplier | Note |
| 1 | A axis servo motor | MSME202G1H | 1 | Panasonic | Japan |
| 2 | B axis servo motor | MDME202G1H | 1 | Panasonic | Japan |
| 3 | C axis servo motor | MDME202G1H | 1 | Panasonic | Japan |
| 4 | D axis servo motor | MSMD042G1U | 1 | Panasonic | Japan |
| 5 | A axis servo amplifier | MDDHT5540 | 1 | Panasonic | Japan |
| 6 | B axis servo amplifier | MFDHTB3A2 | 1 | Panasonic | Japan |
| 7 | C axis servo amplifier | MFDHTB3A2 | 1 | Panasonic | Japan |
| 8 | D axis servo amplifier | MBDHT2510 | 1 | Panasonic | Japan |
| 9 | A axis synchronous belt | OMEGA HP B20 | 1 | OPTIBELT | Germany |
| 10 | B axis synchronous belt | OMEGA HP B20 | 1 | OPTIBELT | Germany |
| 11 | C axis synchronous belt | OMEGA HP B15 | 1 | OPTIBELT | Germany |
| 12 | B axis screw | R50*20-S | 1 | HIWIN | Taiwan |
| 13 | C axis screw | R45*12-S | 1 | HIWIN | Taiwan |
| 14 | B axis slider, guild rail | SNS35LR2SSC1-690 | 2 | THK | Japan |
| 15 | C axis slider, guild rail | SNS35LR2SSC1-520 | 2 | THK | Japan |
| 16 | A axis reducer | FC-A75-69 | 1 | Sumitomo | Japan |
| 17 | D axis reducer | F2C-T155 | 1 | Sumitomo | |
| 18 | Control chip | / | 1 | ADI | America |
Software Unit
1. Chinese and English or other language supplied operating.
2. Main machine parts use famous brand motor like SEW.
3. Built-in palletizing software package.
4. Convenient to confirm the status of the pallet.
5. Precise positioning of the pallet position.
FAQ
Q: How to get an accurate quotation?
A: Please provide us the detail of the workpiece such as drawing and dimensions.
Q: what’s the package ?
A: All goods are packed in wooden box
Q: Do you offer Installation&debugging?
A: Our engineers are available to service machinery overseas to help customers to solve machine problems.
Commission and After-sale Service
We make accurate factory layout design according to customer’s factory size; if the customer needed, we could make workshop design with electric power, water supply, gas power, material storage, final storages, workers’ restroom, etc.
If customer need, we will send engineer for the commissioning service. 1-2 of our engineer will go to your factory to install and adjust the processing line to realize normal production at shortest time.
