Product Details:
|
| Electrical Components: | AirTAC / Customized | Weighing Range: | 5-50kg / Bag |
|---|---|---|---|
| Custom HS CODE: | 8422400090 Or Customized | Conveyor Length: | Customized Or 3 Meters |
| Discharge Pressure: | 0.5-0.7Mpa | Controller: | Germain Meter |
| Precision: | ±0.2-0.3% | Sensor: | 4-6 |
| Highlight: | 50kg / Bag Granular Packing Machine,Animal Food Granular Packing Machine,Sewing animal food packing machine |
||

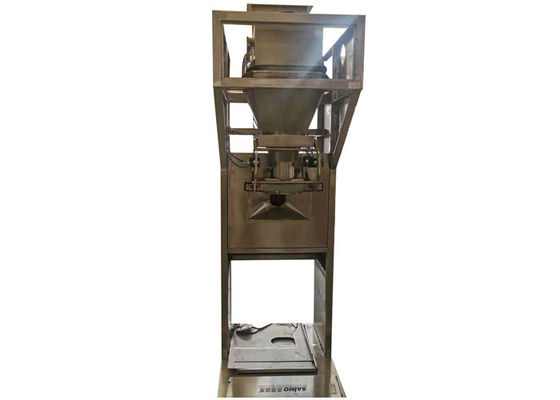

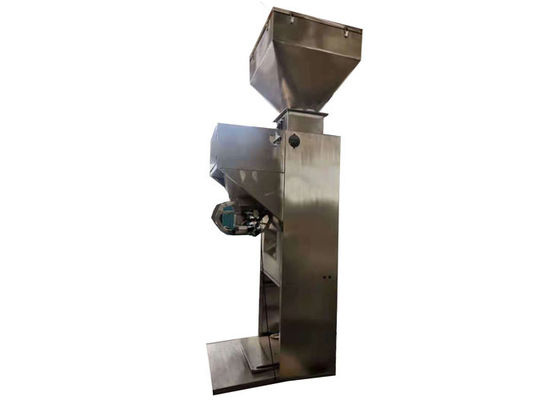

Granular Packing Machine Sewing Machine Conveyor In Animal Food Industry
Application Scope
Granular Packing Machine for granule, loose materials with good fluidity in pharmaceutical, chemical, fertilizer, seed, tea, food, monosodium glutamate, feed, sugar, additive and other industries
Granular Packing Machine Parameters
| Technological parameters | |
| Machine Model | SXP25G |
| Weighing model | Net weighing / Gross weighing |
| Feeding Mode | valve feed, vibrate feed again |
| Package Weight | 10-50Kg |
| Package Accuracy | ±0.2% |
| Packaging Speed | 6-10 bags/min |
| Power Supply | 380 220V/50Hz |
| Atmospheric pressure and Use Tolerance | 6-8Kg/cm2 0.2m3/min |
| Total Power | 3Kw |
| Overall Dimensions | 900mm×800mm×2500mm (For reference) |
Granular Packing Machine Technical Parameters
| No | Name | Model | Manufacturer | QTY |
| 1 | Control system | Canada Germaine | 1 | |
| 2 | Weighing controller | Canada Germaine | 1 | |
| 3 | Weighing sensor | Toledo | 1 | |
| 4 | Motor | Zhengjiang China | 1batch | |
| 5 | Cylinder | AIRTAC | 1batch | |
| 6 | Magnetic valve | AIRTAC | 1batch | |
| 7 | Other pneumatic element | AIRTAC | 1batch |
Granular Packing Machine Main Parts
The load cell we installation 3-4pcs Toledo load cell (max weight 200kg/pc, IP67).
The bagging machine can stable working 10 years.
Our packing machine accessories all use the famous brand, such as pneumatic element use the AirTAC,
HMI (color touch screen panel) use the Germain / Unipulse (customized), the electric element we use the Schneider
Granular Packing Machine Installation
The installation can be provided by the EAGLE company.
During the installation session, a one day training course will be provided to the customer for operation and maintenance procedure.
The purchase at US$100/person/day plus all local transportation, air tickets (round trip), and hotel room & board is provided. Day charges include travel days.
It must be after shipment has arrived and factory must ready equipped with all necessary requirement before booking installation with EAGLE company. Our engineers will come to the site for the complete and final installation.
Automatic Grain Packing Machine Features
The Main Machine Frame shall be customized made into SS304 Stainless Steel or Painted Carbon Steel and the customer can choose the painted color.
The machine unit shall adopt instrument panel operating system and Mettler Toledo Load Cell for weighing accuracy controlling at high packing speed.
The imported intellective weighing instrument can display the gross weight and net weight at the same time.
Automatic test and correct the weighing errors
Sewing machine have auto-sewing, auto-wire breaking auto-alarming function
Packaging and Shipping
Clean the machine and film wrap it insidely
Fix the bottom of the equipment
Check the accessories all packed well
Seal the wooden case
Quality Assurance
1. The warranty period is one year.
2. Ensure that the goods supplied meet the quality specifications and performance of the contract in all respects.
3. Ensure that the equipment has been properly installed and adjusted to meet the contractual requirement after the entire system is in operation.
