Product Details:
|
| Packing Speed: | 5-8 B/m (depend On Different Material) | Automatic Grade: | Semi-automatic Machine |
|---|---|---|---|
| Weighing Range: | 5-50kg | Custom HS CODE: | 8422400090 Or Customized |
| Conveyor Length: | Standard 3 Meters | Trademark: | SAIMO - EAGLE |
| Precision: | ±0.1-0.2% | Sensor: | 4-6 |
| Hopper Volume: | 0.3-0.5 CBM | ||
| Highlight: | Food Industry Granule Packing Machine,CPG Motor Granule Packing Machine,CPG Motor Granule Filling Machine |
||

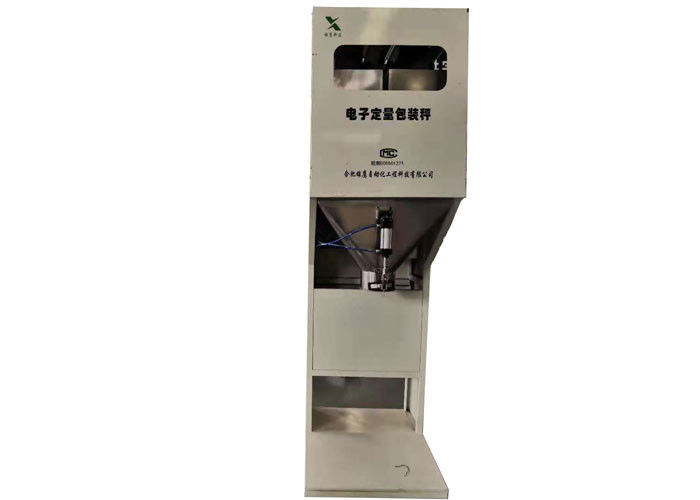

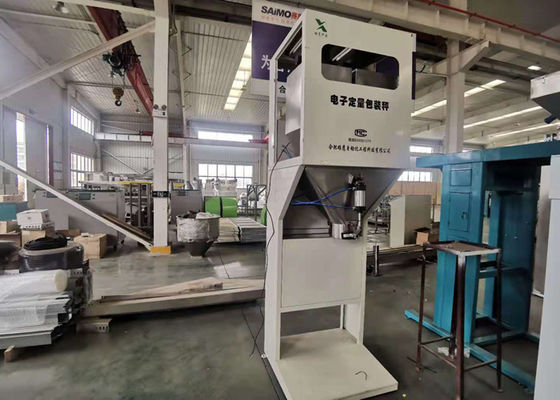

Food Industry Granule Filling Machine With Platform , CPG Motor
Application Scope
Our SXP50G granule filling machine Unit Line is consisted of the main weighing machine, the 3 meters belt conveyor and auto sewing machine; The machine unit is suitable for customers who pack PP Woven Bag and mainly suitable for granular material. Since then, this machine unit is widely applied in the market of Seeds / Grains / Feed Mill / Chemical Granular and environment protective granular products.
Technical Parameters
Main machine components list of granule filling machine
| No | Name | Model | Manufacturer | QTY |
| 1 | Control system | Canada Germaine | 1 | |
| 2 | Weighing controller | Canada Germaine | 1 | |
| 3 | Weighing sensor | Toledo | 1 | |
| 4 | Motor | Zhengjiang China | 1batch | |
| 5 | Cylinder | AIRTAC | 1batch | |
| 6 | Magnetic valve | AIRTAC | 1batch | |
| 7 | Other pneumatic element | AIRTAC | 1batch |
| Transport Machine Technical Parameters | |
| Conveyor Length | 3000mm |
| Conveyor Speed | 5-20m/min |
| Conveyor Belt Width | 400mm |
| Maximum Conveying Capacity | 10-15 bags / min |
| Power Supply | AC380V |
| Power | 0.75KW |
Machine Main Parts
The load cell we installation 3-4pcs Toledo load cell (max weight 200kg/pc, IP67).
The bagging machine can stable working 10 years.
Our packing machine accessories all use the famous brand, such as pneumatic element use the AirTAC,
HMI (color touch screen panel) use the Germain / Unipulse (customized), the electric element we use the Schneider
Granule filling machine Parameters
| Machine type | SXP25G |
| Weight range kg | 5-25 kg, MAX50kg/bag |
| Accuracy | 2 |
| Scale division |
0.2-05%% (According to material characteristic) |
| Weight speed | 3-8 times /min |
| Environmental Requirement | relative humidity≤90% |
| Electrical Requirements | AC380V 50Hz |
| Power | 3KW |
| Air requirement | 0.4-0.6Mpa 1m³ /h |
| Machine weight | 400-600 kg |
Installation
The installation can be provided by the EAGLE company.
During the installation session, a one day training course will be provided to the customer for operation and maintenance procedure.
The purchase at US$100/person/day plus all local transportation, air tickets (round trip), and hotel room & board is provided. Day charges include travel days.
It must be after shipment has arrived and factory must ready equipped with all necessary requirement before booking installation with EAGLE company. Our engineers will come to the site for the complete and final installation.
Machine Features
The Main Machine Frame shall be customized made into SS304 Stainless Steel or Painted Carbon Steel and the customer can choose the painted color.
The machine unit shall adopt instrument panel operating system and Mettler Toledo Load Cell for weighing accuracy controlling at high packing speed.
The imported intellective weighing instrument can display the gross weight and net weight at the same time.
Automatic test and correct the weighing errors
Sewing machine have auto-sewing, auto-wire breaking auto-alarming function
Packaging and Shipping
Clean the machine and film wrap it
Fix the bottom of the equipment
Check the accessories all packed well
Close the wooden case
Print the mark and stick it on the wooden case
Loading, entering the warehouse
Installation
Our engineers will come to the site for the complete and final installation.
During the installation session, a one day training course will be provided to the customer for operation and maintenance procedure.
The purchase at US$80/person/day plus all local transportation, air tickets (round trip), and hotel room & board is provided. Day charges include travel days.
Quality Assurance
1. The warranty period is one year.
2. Ensure that the goods supplied meet the quality specifications and performance of the contract in all respects.
3. Ensure that the equipment has been properly installed and adjusted to meet the contractual requirement after the entire system is in operation.
