Product Details:
|
| Packing Speed: | 5-8 B/m (depend On Different Material) | Electrical Source: | 380-220 V, 50 Hz |
|---|---|---|---|
| Weighing Range: | 25kg/50kg | Buffer Hopper: | With Material Level |
| Conveyor Length: | 2.2-3 Meters | Bag Sealing Type: | Stitching / Heat Sealing / Folding Sealing |
| Precision: | ±0.1-0.2% | Machine Weight: | 400-600kg |
| Hopper Volume: | 0.3 CBM Or OEM | ||
| Highlight: | Chemical Industry Granule Packing Machine,Stainless Steel Granule Packing Machine,PET Pellets Granule Packing Machine |
||

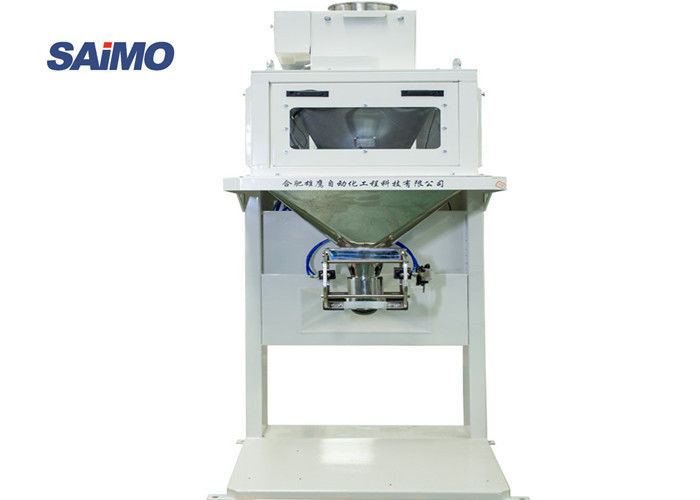

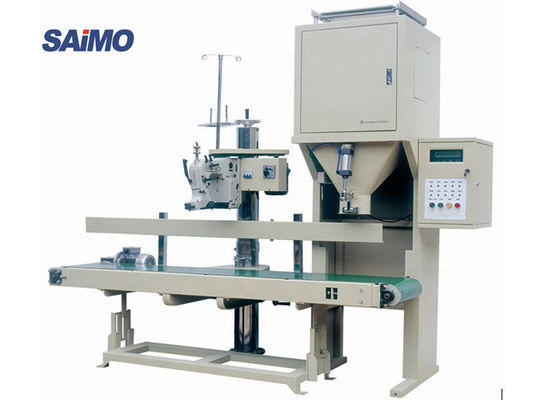

25 Kg PET Pellets Granule Packing Machine Stainless Steel In Chemical Industry
Application Scope
This packing machine is applicable to weighing of rice, wheat, paddy, fertilizer, Feed, etc that are granule material, and quantitative packing of finished products or semi-finished products from the industry of cereals, chemical, Light Manufacturing & Foodstuffs, etc.
Working Principles
This series of quantitative packaging weighing unit is specially designed for the quantitative packaging of all kinds of granular materials and small particles with good fluidity & small dust, feeding by pneumatic arc door or vibration. Pneumatic curved door or vibrating feeder is controlled by the sensor feedback signal, and the material is graded into the weighing bucket or the packaging bag. When the material in the weighing bucket or packaging bag is filled to the set weight, the feeding mechanism stops feeding.
Technical Parameters
| Machine type | SXP25G |
| Weight range kg | 5-25 kg, MAX50kg/bag |
| Accuracy | 2 |
| Scale division |
0.2-05%% (According to material characteristic) |
| Weight speed | 3-8 times /min |
| Environmental Requirement | relative humidity≤90% |
| Electrical Requirements | AC380V 50Hz |
| Power | 3KW |
| Air requirement | 0.4-0.6Mpa 1m³ /h |
| Machine weight | 400-600 kg |
Main machine components list
| No | Name | Model | Manufacturer | QTY |
| 1 | Control system | Canada Germaine | 1 | |
| 2 | Weighing controller | Canada Germaine | 1 | |
| 3 | Weighing sensor | Toledo | 1 | |
| 4 | Motor | Zhengjiang China | 1batch | |
| 5 | Cylinder | AIRTAC | 1batch | |
| 6 | Magnetic valve | AIRTAC | 1batch | |
| 7 | Other pneumatic element | AIRTAC | 1batch |
Installation
The installation can be provided by the EAGLE company.
During the installation session, a one day training course will be provided to the customer for operation and maintenance procedure.
The purchase at US$100/person/day plus all local transportation, air tickets (round trip), and hotel room & board is provided. Day charges include travel days.
It must be after shipment has arrived and factory must ready equipped with all necessary requirement before booking installation with EAGLE company. Our engineers will come to the site for the complete and final installation.
Product Process
Obtain raw materials, cutting, laser, shearing, bending
Assembling, welding
Surface treatment: grinding, polishing, pickling
Assembling, finish circuit boards
Test machine before delivery
QC give inspection report, then arrange delivery
Machine Features
The Main Machine Frame shall be customized made into SS304 Stainless Steel or Painted Carbon Steel and the customer can choose the painted color.
The machine unit shall adopt instrument panel operating system and Mettler Toledo Load Cell for weighing accuracy controlling at high packing speed.
The imported intellective weighing instrument can display the gross weight and net weight at the same time.
Automatic test and correct the weighing errors
Sewing machine have auto-sewing, auto-wire breaking auto-alarming function
Packaging and Shipping
Shipping ports can be decided by customer's requirements.
Quality Assurance
1. The warranty period is one year.
2. Ensure that the goods supplied meet the quality specifications and performance of the contract in all respects.
3. Ensure that the equipment has been properly installed and adjusted to meet the contractual requirement after the entire system is in operation.
FAQ
Q: Where are you located?
A: Our factory is in Hefei city (2 hours high-speed train from Shanghai). Airport name is HFE.
Q: Can your machine meet our needs well?
A: After receiving your inquiry, we will confirm your
1. Your pack weight per pouch, pack speed, pack bag size (it is the most important).
2.Show me yours unpack productions and pack samples picture.
And then give you the proposal according to your specific requirement. Every machine is customized to meet your needs well.
