Product Details:
|
| Packing Speed: | 5-8 B/m (depend On Different Material) | Automatic Grade: | Semi-automatic Machine |
|---|---|---|---|
| Weighing Range: | 25kg-50kg | Custom HS CODE: | 8422400090 |
| Conveyor Length: | 3 Meters Normally | Trademark: | SAIMO EAGLE |
| Precision: | ±0.1-0.2% | Sensor: | 4-6 |
| Hopper Volume: | 0.3 CBM Or OEM | ||
| Highlight: | PVC Pellets Packing Machine,PVC Pellets Granule Packing Machine,6 Load Cell Pellets Packing Machine |
||

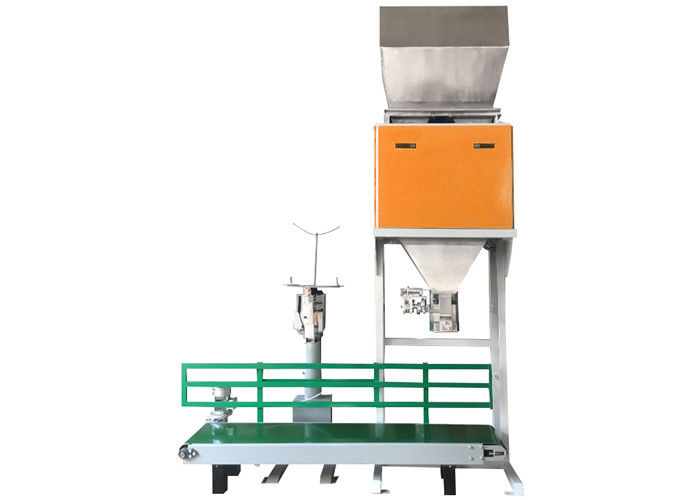

25 Kg Bag PVC Pellets Packing Machine With 6 Load Cell In Plastic Industry
Application Scope
Our packaging machine is widely used in feed, fertilizer, grain, chemical industry, building materials,starch, food, rubber and plastics, hardware, minerals, covering more than 20 industries, more than 3,000 kinds of materials.
Technical Parameters
Main machine components list
| No | Name | Model | Manufacturer | QTY |
| 1 | Control system | Canada Germaine | 1 | |
| 2 | Weighing controller | Canada Germaine | 1 | |
| 3 | Weighing sensor | Toledo | 1 | |
| 4 | Motor | Zhengjiang China | 1batch | |
| 5 | Cylinder | AIRTAC | 1batch | |
| 6 | Magnetic valve | AIRTAC | 1batch | |
| 7 | Other pneumatic element | AIRTAC | 1batch |
| Transport Machine Technical Parameters | |
| Conveyor Length | 3000mm |
| Conveyor Speed | 5-20m/min |
| Conveyor Belt Width | 400mm |
| Maximum Conveying Capacity | 10-15 bags / min |
| Power Supply | AC380V |
| Power | 0.75KW |
Machine Main Parts
The load cell we installation 3-4pcs Toledo load cell (max weight 200kg/pc, IP67).
The bagging machine can stable working 10 years.
Our packing machine accessories all use the famous brand, such as pneumatic element use the AirTAC,
HMI (color touch screen panel) use the Germain / Unipulse (customized), the electric element we use the Schneider
Installation
The installation can be provided by the EAGLE company.
During the installation session, a one day training course will be provided to the customer for operation and maintenance procedure.
The purchase at US$100/person/day plus all local transportation, air tickets (round trip), and hotel room & board is provided. Day charges include travel days.
It must be after shipment has arrived and factory must ready equipped with all necessary requirement before booking installation with EAGLE company. Our engineers will come to the site for the complete and final installation.
Machine Features
The Main Machine Frame shall be customized made into SS304 Stainless Steel or Painted Carbon Steel and the customer can choose the painted color.
The machine unit shall adopt instrument panel operating system and Mettler Toledo Load Cell for weighing accuracy controlling at high packing speed.
The imported intellective weighing instrument can display the gross weight and net weight at the same time.
Automatic test and correct the weighing errors
Sewing machine have auto-sewing, auto-wire breaking auto-alarming function
Packaging and Shipping
Clean the machine and film wrap it
Fix the bottom of the equipment
Check the accessories all packed well
Close the wooden case
Print the mark and stick it on the wooden case
Loading, entering the warehouse
Installation
Our engineers will come to the site for the complete and final installation.
During the installation session, a one day training course will be provided to the customer for operation and maintenance procedure.
The purchase at US$80/person/day plus all local transportation, air tickets (round trip), and hotel room & board is provided. Day charges include travel days.
Quality Assurance
1. The warranty period is one year.
2. Ensure that the goods supplied meet the quality specifications and performance of the contract in all respects.
3. Ensure that the equipment has been properly installed and adjusted to meet the contractual requirement after the entire system is in operation.
