Product Details:
|
| Heating Source: | Electricity, Natural Gas, Coal, Diesel Etc. | Installation Height Required: | Max 12000mm |
|---|---|---|---|
| Uniformity: | <=1% | Installation: | Engineer Guide |
| User Manual: | English Type | Heating Fuel: | Coal, Rice Husk, Diesel, Natural Gas, Biomass, Electric |
| Drying Type: | 24-hour Continuous Type | Application: | Grain Processing |
| Highlight: | 25 Ton Paddy Rice Dryer,Fixed Paddy Rice Dryer,25 Ton paddy drying machine |
||

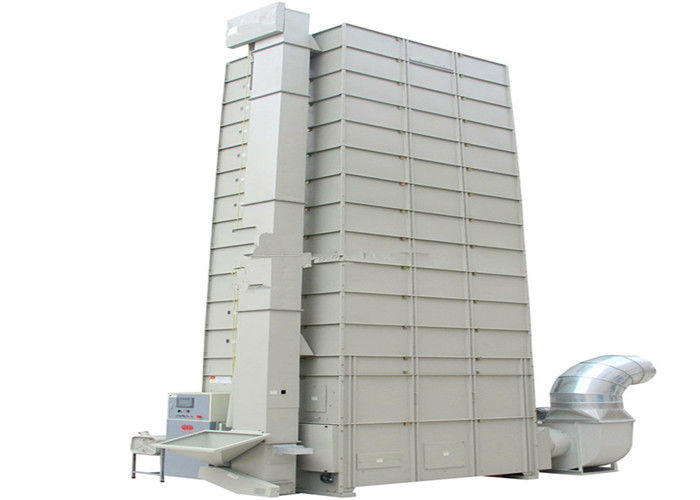

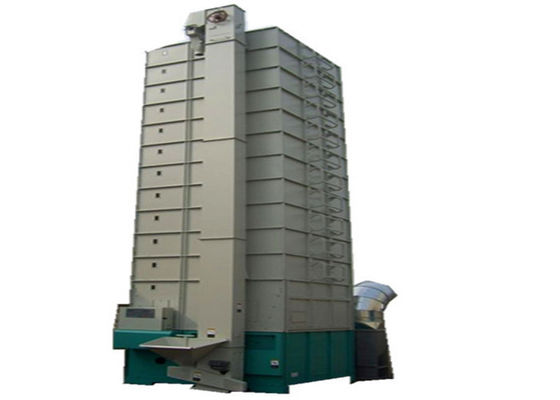

High Efficiency Electric Paddy Rice Dryer 25 Ton , Straw Stove
Technical Parameters
| Model | 5HXY-22T | 5HXY-30T | ||
| Structure Type | Fixed | |||
| Total Weight(kg) | 4280 | 8650 | ||
| Dry Layer Height(mm) | 2220 | 2220 | ||
| Body Size(L*W*H)(mm) | 2560*2500*8955 | 3060*3060*8410 | ||
| Overall Dimensions(L*W*H)(mm) | 4137*4058*12670 | 4632*4277*12947 | ||
| Capacity(kg) | Rice(560kg/m3) | 6500-22000 | 8000-30000 | |
| Wheat(680kg/m3) | 7800-25000 | 10000-25000 | ||
| Heating Source | Hot blast stove, Boiler, Burner | |||
| Heating Method | Indirect Heating | |||
| Supporting Power Supply | three-phase,380V,50HZ | |||
| Total Power(KW) | 10.77 | 17.27 | ||
| Property | Feeding Time(Minutes) | 60-70 | ||
| Discharging time(Minutes) | 50-60 | |||
| Precipitation Rate(%/hour) | 0.5-1.2 | |||
| Safety Devices | Fault automatic alarm, temperature control, overload protection, leakage protection, full grain alarm, automatic shutdown | |||
Application of grain drying machine
Paddy drying machine is suitable for efficient drying all cereals, grains, beans and seeds of all crops such as maize, coffee bean, wheat, rice, barely, millets, sunflower seed, soybean, oil seeds, rice etc.
It is suitable to all kinds of farm. And rice processing industry, such as rice mill.
Stove heating or heat pump
It consists of 3 sectors of fire-proof wall, 2 layer brick of every fire-proof wall
Advantage: reasonable design can avoid open flame. So it run steadily, safely and have long use-life.
Can be fueled by Nature gas coal, wood, rice husk, diesel, etc.
Product Feature
High quality grain after drying.
Low drying cost.
Large capacity, high efficiency and the cheapest drying.
Long services life.
Easy operating and maintenance.
Multiple safety protection devices.
Working Principle of paddy dryer
It adopts rotary heating device; it can output enough hot air in a short time and kill eggs though high temperature.
It also adopts digitization control and instrumentation to control drying box’s temperature to avoid appearing discoloring and metamorphic phenomenon.
Drying cabinet is made of metal aluminum plate and silica gel cotton insulation layer to reduce energy consumption effectively.
Cyclotron system can reach the purpose of air circulation, humidification and heating in the drying box
Components of paddy dryer
It is mainly composed of feeding device, bucket conveyer, drying box, dust catcher, efficient hot-blast stove, fan, on-line temperature measuring instrument, rapid water meter, electric control system and other systems.
Our Service
We can meet your any special requirements, such as: Add insulation. Use special heat source (biomass, rice husk, diesel, coal, electric, steam, etc.), special designed, Special accessories, etc.
1. Speedy Drying Maize
2. User friendly & Easy Maintenance.
3. High Durability
4. Fast installation.
5. Multiple safety devices.
Packing & Shipping
Due to the large volume of the dryer, we will divide the machine into many small parts before delivery, which is convenient for packaging and transportation.
It's usually shipped in containers, 20GP, 40P, 40HQ
Optional Device - Natural gas stove
Product characteristics
Diverse fuels available (Natural gas, liquefied petroleum gas, etc.), low operating costs
Indirect heating, clean air, no pollution to grain
Large furnace capacity and use high quality stainless steel SUS316L material which has long service life with corrosion resistance, high temperature resistance and durability.
Automatic temperature control system, double fire control temperature, hot air temperature, precise temperature control and fast heating
Easy to operate, one-click start and one person can operate multiple units which saving labor costs.
Product Parameters
| Model | 5TRQ-20 | 5TRQ-35 | 5TRQ-45 | 5TRQ-50 | |||
| Rated Heat | Ten thousand kcal | 20 | 35 | 45 | 50 | ||
|
Overall Dimensions
|
Length(L) | mm | 680 | 950 | 1305 | 1305 | |
| Width(W) | mm | 695 | 695 | 850 | 850 | ||
| Height(H) | mm | 672 | 673 | 1000 | 1000 | ||
| Total Length | Length(L1) | mm | 1160 | 1458 | 1813 | 1885 | |
| Weight | kg | 153 | 156 | 196 | 206 | ||
| Air Consum-ption | G20 | Nm3/h | 8.1-22 | 7/13÷39 | 8/15÷45 | 3/5÷15 | |
| G25 | Nm3/h | 9.4-25.6 | 10/20÷55 | 12/24÷64 | 4/8÷21 | ||
| LPG | Nm3/h | 3.1-8.5 | 11.6/29÷58 | 13.5/34÷68 | 4.5/11÷23 | ||
| Rated Voltage | 380V50HZ | ||||||
| Heating Method | Indirect Heating | ||||||
| Suitable fuel | Natural gas, liquefied petroleum gas, etc | ||||||
| Hot Air Temperature | 60℃-150℃ | ||||||
| Control Method | Automatic control, Double-stage fire burning | ||||||
| Operation | Intermittent(Stop at least once every 24 hours) | ||||||
| Safety Measures | One-click start, automatic thermostat, hot air temperature sensing, air supply, temperature synchronization automatically | ||||||
Note: The data listed above are reference values. Please refer to the object.
FAQ
Q: What is the heat source of your stove?
Coal, biomass, wood, rice husk, or diesel, or natural gas.
Q: Way of payment
Welcome clients place the order by Alibaba online one-touch! EAGLE also offers various ways of payment, T/T, L/C at sight etc.
Q: Can we visit your factory? How can we get to your factory?
Yes, of course. You are always welcome to visit our factory, we can show you any of our live production sites to give you a clearer image of our machines.
