Product Details:
|
| Power: | 7KW | Voltage: | 380V |
|---|---|---|---|
| Frequency: | 50 - 60 Hz | Package: | Wooden Cases |
| User Manual: | Provided In English | One Drying Cycyle: | 24 Hours |
| Weight: | 500-1000 Kg | Material Feeding: | Bucket Elevator |
| Hot Air Temperature: | 60-150 ℃ | Heating Source: | Electricity, Natural Gas, Coal, Biomass, Diesel Etc. |
| Highlight: | 7KW Paddy Drying Machine,No Auger Paddy Drying Machine,No Auger paddy dryer plant |
||

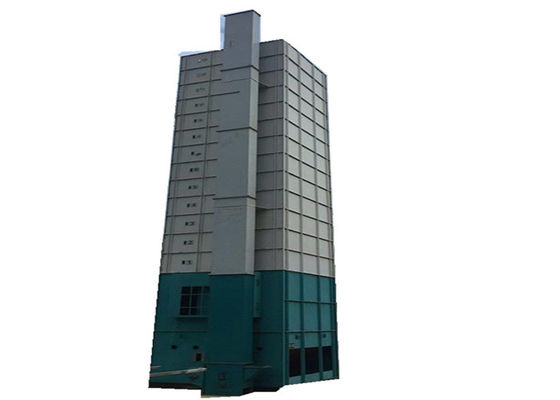

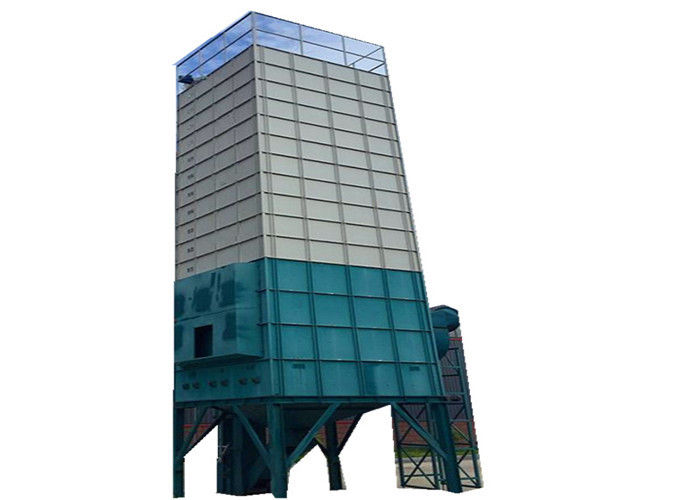

No Auger Rotating Feeding Paddy Dryer Machine , Circulating Agriculture Machine , Diesel Burner
Introduction
Grain dryer grain dryer is used to dry wheat, corn, rice and other grain materials. Compact structure. Its feed, circulation and discharge are combined with lift. It has the characteristics of light weight and small area. Walking drying equipment can move with dry materials at the same time. It has the characteristics of light weight and small area. Walking drying equipment can move with dry materials at the same time.
Product Feature
One machine multi-purpose, can dry rice, wheat, corn, peanuts, soybeans. Sorghum and other food crops and their seeds.
Forced dispersing device and quantitative feeding cycle of positive and negative grain discharge, thin layer and large air flow, uniform grain drying, high drying efficiency.
Adopt large spiral feeder, high strength nylon dustpan, stainless steel net plate, wear-resisting, anti-deformation, durable and don't hurt grain.
Residual material cleaning device, easy to remove grain residual material, prevent mixing.
Technical Parameters
| Model | 5HYX-15 | ||
| Structure Type | Fixed Type | ||
| Total Weight(kg) | 3170 | ||
| Dry Layer Height(mm) | 3260 | ||
| Body Size(L*W*H)(mm) | 2080*1860*8572 | ||
| Overall Dimensions(L*W*H)(mm) | 4450*2032*9671 | ||
| Capacity(kg) | Paddy(560kg/m3) | 6500-13250 | |
| Wheat(680kg/m3) | 7500-16350 | ||
| Heating Source | Hot blast stove, Boiler, Burner | ||
| Heating Method | Indirect Heating | ||
| Supporting Power Supply | three-phase,380V,50HZ | ||
| Total Power(KW) | 6.45 | ||
| Property | Feeding Time(Minutes) | 60-75 | |
| Discharging time(Minutes) | 60-70 | ||
| Precipitation Rate(%/hour) | 0.5-1.2 | ||
| Safety Devices | Fault automatic alarm, temperature control, overload protection, leakage protection, full grain alarm, automatic shutdown | ||
Application of grain drying machine
It is suitable for drying wheat, rice, paddy, corn and so on grains.
Capacity: 12.5/15/22/30 tons per batch.
Moisture Reduction per hour (%/h): Rice/wheat:0.5-0.8 or 1.2.
The drying box has heat preservation layer of silicon cotton, so it can reduce energy consumption efficiently. And the grain dryer adopts indirect heating system
Our Service
1.Paddy drying machine with Factory Price and perfect after-sales service.
2.Assessed Gold Supplier.
3.Detail Design Thoughtful
4.100% QC inspection Before Shipping.
5.Cases in many countries.
6.Solve the problem within 72 hours
Optional Device – Natural gas stove
Product characteristics
Diverse fuels available (Natural gas, liquefied petroleum gas, etc.), low operating costs
Indirect heating, clean air, no pollution to grain
Large furnace capacity and use high quality stainless steel SUS316L material which has long service life with corrosion resistance, high temperature resistance and durability.
Automatic temperature control system, double fire control temperature, hot air temperature, precise temperature control and fast heating
Easy to operate, one-click start and one person can operate multiple units which saving labor costs.
Product Parameters
| Model | 5TRQ-20 | 5TRQ-35 | 5TRQ-45 | 5TRQ-50 | |||
| Rated Heat | Ten thousand kcal | 20 | 35 | 45 | 50 | ||
|
Overall Dimensions
|
Length(L) | mm | 680 | 950 | 1305 | 1305 | |
| Width(W) | mm | 695 | 695 | 850 | 850 | ||
| Height(H) | mm | 672 | 673 | 1000 | 1000 | ||
| Total Length | Length(L1) | mm | 1160 | 1458 | 1813 | 1885 | |
| Weight | kg | 153 | 156 | 196 | 206 | ||
| Air Consum-ption | G20 | Nm3/h | 8.1-22 | 7/13÷39 | 8/15÷45 | 3/5÷15 | |
| G25 | Nm3/h | 9.4-25.6 | 10/20÷55 | 12/24÷64 | 4/8÷21 | ||
| LPG | Nm3/h | 3.1-8.5 | 11.6/29÷58 | 13.5/34÷68 | 4.5/11÷23 | ||
| Rated Voltage | 380V50HZ | ||||||
| Heating Method | Indirect Heating | ||||||
| Suitable fuel | Natural gas, liquefied petroleum gas, etc | ||||||
| Hot Air Temperature | 60℃-150℃ | ||||||
| Control Method | Automatic control, Double-stage fire burning | ||||||
| Operation | Intermittent(Stop at least once every 24 hours) | ||||||
| Safety Measures | One-click start, automatic thermostat, hot air temperature sensing, air supply, temperature synchronization automatically | ||||||
Note: The data listed above are reference values. Please refer to the object.
FAQ
Q: Way of payment
Welcome clients place the order by Alibaba online one-touch! EAGLE also offers various ways of payment, T/T, L/C at sight etc.
Q: Are you factory or Trade Company?
We are professional grain dryer manufacturer with 15 years of experiences.
Q: Can we visit your factory? How can we get to your factory?
Yes, of course. You are always welcome to visit our factory, we can show you any of our live production sites to give you a clearer image of our machines.
Q: How long can you guarantee your products and their parts?
We promise to repair, change or withdraw our Rice Dryer and their parts for free within a year if they are some quality issues.
