Product Details:
|
| Power: | 12KW | Voltage: | 220V / 380V |
|---|---|---|---|
| Frequency: | 50 / 60 Hz | Heating Source: | Electricity, Natural Gas, Coal, Diesel Etc. |
| Package: | Wooden Cases | User Manual: | Provided In English |
| Warranty: | One Year | Spare Parts: | Provided |
| Installation: | Engineer Guide | Condition: | New |
| Highlight: | 12KW corn dryer machine,22 Tons corn dryer machine,22 Ton corn dryer machine |
||

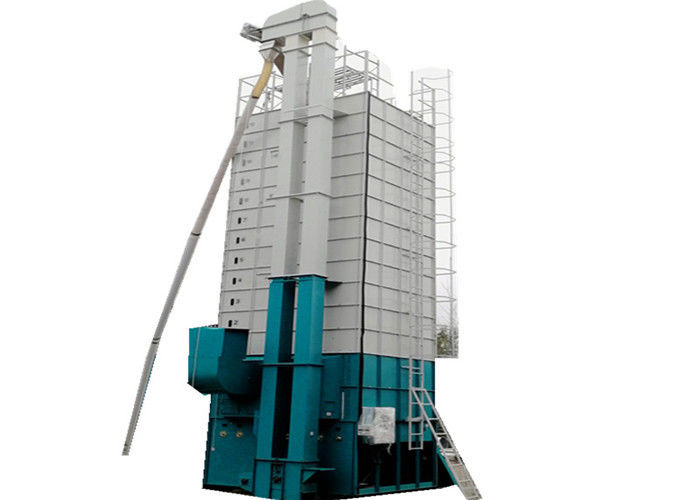

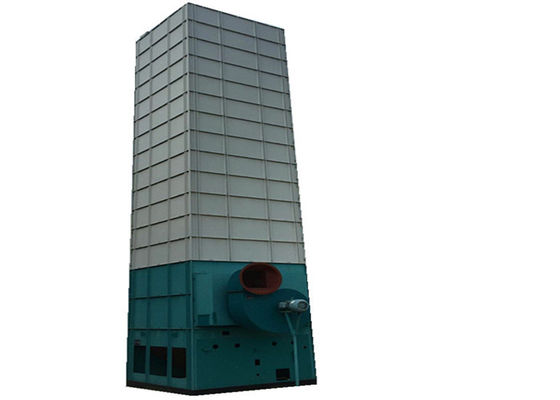

Large Farm Used Paddy Dryer Machine 22 Tons In Food Industry ,Biomass Stove
Introduction
Grain dryer grain dryer is used to dry wheat, corn, rice and other grain materials. Compact structure. Its feed, circulation and discharge are combined with lift. It has the characteristics of light weight and small area. Walking drying equipment can move with dry materials at the same time.
Product Feature
High automation (automatic monitor over hot air, grain and moisture, automatic failure alarm); Automatic circulating, discharging and shutdown system;
Lowest cost (for every 12 tons rice to be reduced 5% moisture, it costs 78.0RMB for burning coal, and 37.5RMB for burning husk).
Drying cereal shiny bright, no paste, cracking rate is lower than the national standard corn standard 4%. Drying the finished rice, bursting rate below 2%, cracking rate of less than 4%, the color showed a natural state, Eliminate grain pollution.
Working Principle of paddy dryer
It adopts rotary heating device; it can output enough hot air in a short time and kill eggs though high temperature.
It also adopts digitization control and instrumentation to control drying box’s temperature to avoid appearing discoloring and metamorphic phenomenon.
Drying cabinet is made of metal aluminum plate and silica gel cotton insulation layer to reduce energy consumption effectively.
Cyclotron system can reach the purpose of air circulation, humidification and heating in the drying box
Technical Parameters
| Model | 5HXY-12.5T | 5HXY-15T | 5HXY-22A | 5HXY-22B | ||
| Structure Type | Fixed | |||||
| Total Weight(kg) | 3240 | 3625 | 5240 | 5604 | ||
| Drying Layer Height(mm) | 1480 | 1480 | 1480 | 1980 | ||
| Body Size(L*W*H)(mm) | 2060*2060*8796 | 2060*2060*9886 | 2350*2700*9645 | 2350*2700*10145 | ||
| Overall Dimensions(L*W*H) (mm) | 3836*2480*10547 | 3836*2480*11637 | 4212*2922*11596 | 4212*2922*12096 | ||
| Capacity(kg) | Paddy(560kg/m3) | 2500-12500 | 2500-15000 | 5400-22000 | 5900-22500 | |
| Wheat(680kg/m3) | 3035-15200 | 3035-18200 | 6500-26700 | 7200-27400 | ||
| Heating Source | Hot blast stove, Boiler, Burner | |||||
| Heating Method | Indirect Heating | |||||
| Supporting Power Supply | three-phase,380V,50HZ | |||||
| Total Power(KW) | 9.77 | 11.32 | ||||
|
Property |
Feeding Time(Minutes) | 50-60 | 55-65 | 50-60 | ||
| Discharging time(Minutes) | 45-55 | 50-60 | 45-55 | |||
| Precipitation Rate(%/hour) | 0.5-1.2 | 0.5-1.2 | ||||
|
Safety Devices |
Fault automatic alarm, temperature control, overload protection, leakage protection, full grain alarm, automatic shutdown | |||||
Stove heating or heat pump
It consists of 3 sectors of fire-proof wall, 2 layer brick of every fire-proof wall
Advantage: reasonable design can avoid open flame. So it run steadily, safely and have long use-life.
Can be fueled by Nature gas coal, wood, rice husk, diesel, etc.
Application of grain drying machine
It is suitable for drying wheat, rice, paddy, corn and so on grains.
Capacity: 12.5/15/22/30 tons per batch.
Moisture Reduction per hour (%/h): Rice/wheat:0.5-0.8 or 1.2.
The drying box has heat preservation layer of silicon cotton, so it can reduce energy consumption efficiently. And the grain dryer adopts indirect heating system
Components of paddy dryer
It is mainly composed of feeding device, bucket conveyer, drying box, dust catcher, efficient hot-blast stove, fan, on-line temperature measuring instrument, rapid water meter, electric control system and other systems.
Our Service
* Inquiry and consulting support.
* Sample testing support.
* Visit our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Optional Device – Heating Stove
Biomass stove
Product characteristics
Environmental protection and energy saving, promoting innovation, minimizing environmental pollution, and fuel gas emission standards.
Diverse fuels available (Coal, biomass, rice husks, etc.), low operating costs
Indirect heating, clean air, no pollution to grain
Large furnace capacity and use high quality stainless steel SUS316L material which has long service life with corrosion resistance, high temperature resistance and durability.
Unique S-type channel heat exchange device, high quality stainless steel SUS316L material, high heat exchange efficiency, low heat loss
Automatic temperature control system, hot air temperature, precise temperature control and rapid heating.
Easy to operate, one-click start and one person can operate multiple units which saving labor costs.
Product Parameters
| Model | 5LSW-45 | 5LSW-60 | 5LSW-75 | ||
| Rated heat | Ten thousand kcal | 45 | 60 | 75 | |
|
Overall Dimensions
|
Length(L) | mm | 4300 | 4600 | 4600 |
| Width(W) | mm | 1600 | 1600 | 1800 | |
| Height(H) | mm | 3220 | 3550 | 4275 | |
| Weight | kg | 3500 | 4000 | 4300 | |
| Cooling area | m2 | 48 | 64 | 78 | |
| Total Power | KW | 4.4 | 4.4 | 6.95 | |
| Rated voltage | 380V50HZ | ||||
| Heating Method | Indirect Heating | ||||
| Suitable fuel | Coal, biomass, rice husks, etc. | ||||
| Hot air temperature | 60℃-150℃ | ||||
| control method | Automatic control | ||||
| Safety | Automatic thermostat, hot air temperature sensing, smoke extraction, air supply, temperature control automatic synchronization | ||||
Note: The data listed above are reference values. Please refer to the object.
