Product Details:
|
| Application: | Grain Processing | Heating Source: | Electricity, Natural Gas, Coal, Diesel Etc. |
|---|---|---|---|
| Logo OEM: | Allowed | User Manual: | Provided In English |
| Installation Height Required: | Max 12 Meters | Raw Material: | All Kinds Of Grain |
| Spare Parts: | Provided | Installation: | Engineer Guide |
| Heating Fuel: | Coal, Rice Husk, Diesel, Natural Gas, Biomass, Electric | Drying Type: | 24-hour Continuous Type |
| Highlight: | 12.5 Ton Paddy Dryer machine,12.5 Ton wheat dryer machine,12.5 Ton maize dryer machine |
||

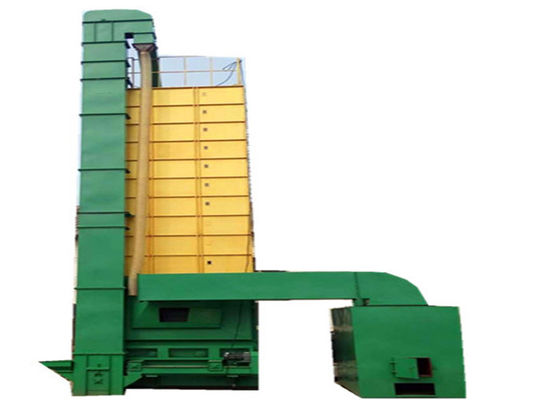

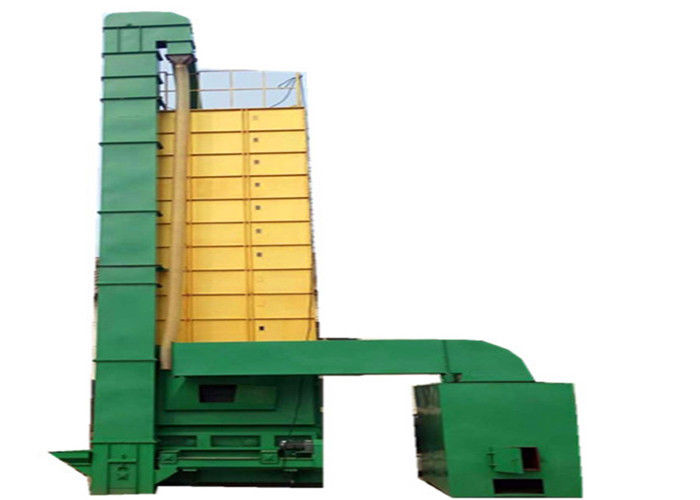

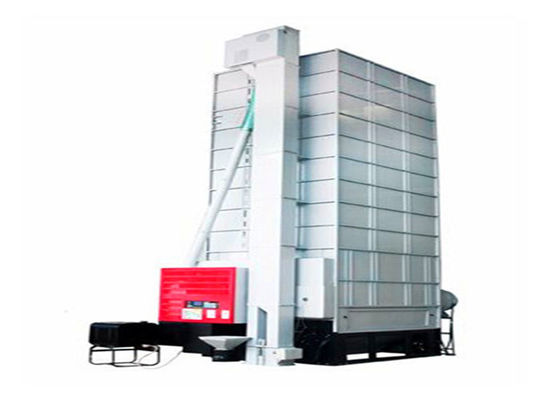

Electric Small Grain Dryer Machine System 12.5 Tons , Wheat Maize Corn Seed Bean
Technical Parameters
| Dryer Type | XY-12.5T | XY-15T | XY-30T | |
| Structure Type | Fixed | Fixed | Fixed | |
| Whole Machine Weight(kg) | 3240 | 3625 | 4280 | |
| Overall Dimension(Length*width*height) (mm) | 3836*2480*10547 | 3836*2480*11637 | 4137*4058*12107 | |
| Volume(kg) | Paddy(560 kg / m³) | 2500-12500 | 2500-15000 | 6500-22000 |
| Wheat(680 kg / m³) | 3035-15200 | 3035-18200 | 7800-25000 | |
| Heating Method | Hot stove, boiler, burner, Indirect heating | Hot stove, boiler, burner, Indirect heating | Hot stove, boiler, burner, Indirect heating | |
| Voltage | 3 phase,380V,50HZ | 3 phase,380V,50HZ | 3 phase,380V,50HZ | |
| Whole Machine Power(KW) | 9.77 | 9.77 | 10.77 | |
|
Capacity |
Feed time(Minute) | 50-60 | 60-70 | 60-70 |
| Discharge time(Minute) | 45-55 | 50-60 | 50-60 | |
| Precipitation rate(%/hour) | 0.5-1.2 | 0.5-1.2 | 0.5-1.2 | |
|
Safety Devices |
Fault automatic alarm, temperature control, overload protection, leakage protection, full grain alarm, automatic shutdown | Fault automatic alarm, temperature control, overload protection, leakage protection, full grain alarm, automatic shutdown | Fault automatic alarm, temperature control, overload protection, leakage protection, full grain alarm, automatic shutdown | |
Stove heating or heat pump
It consists of 3 sectors of fire-proof wall, 2 layer brick of every fire-proof wall
Advantage: reasonable design can avoid open flame. So it run steadily, safely and have long use-life.
Can be fueled by Nature gas coal, wood, rice husk, diesel, etc.
Application of grain drying machine
It is suitable for drying wheat, rice, paddy, corn and so on grains.
Capacity: 12.5/15/22/30 tons per batch.
Moisture Reduction per hour (%/h): Rice/wheat:0.5-0.8 or 1.2.
The drying box has heat preservation layer of silicon cotton, so it can reduce energy consumption efficiently. And the grain dryer adopts indirect heating system
Product Feature
The hoist is designed with two barrels and equipped with the anti-damage device to reduce the breakage rate of grain.
The gear motor and NSK/ASAHI bearing imported from Japan are used.
The design of vertical four-slot and the large drying layer ensures high drying efficiency and good quality.
The part in contact with grain is designed with stainless steel to increase wear and corrosion resistance.
The manganese steel is used for auger, and the surface is hard and wear-resistant after special treatment.
Flexible and efficient heat source
Multiple heat supply is available. To minimize the environment burden, this machine is adopting the technology of low temperature fully drying, and the technology of maximum heat
Even blend, circular drying
Temp is around 40-60C to minimize the broken rate, and to ensure the products in good condition tempering for a long time. Thus, production costs will also be reduced at most
Working Principle of paddy dryer
It adopts rotary heating device; it can output enough hot air in a short time and kill eggs though high temperature.
It also adopts digitization control and instrumentation to control drying box’s temperature to avoid appearing discoloring and metamorphic phenomenon.
Drying cabinet is made of metal aluminum plate and silica gel cotton insulation layer to reduce energy consumption effectively.
Cyclotron system can reach the purpose of air circulation, humidification and heating in the drying box
Components of paddy dryer
It is mainly composed of feeding device, bucket conveyer, drying box, dust catcher, efficient hot-blast stove, fan, on-line temperature measuring instrument, rapid water meter, electric control system and other systems.
Our Service
* Inquiry and consulting support.
* Sample testing support.
* Visit our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Shipping
Due to the large volume of the dryer, we will divide the machine into many small parts before delivery, which is convenient for packaging and transportation.
It's usually shipped in containers, 20GP, 40P, 40HQ
Optional Device - Natural gas stove
Product characteristics
Diverse fuels available (Natural gas, liquefied petroleum gas, etc.), low operating costs
Indirect heating, clean air, no pollution to grain
Large furnace capacity and use high quality stainless steel SUS316L material which has long service life with corrosion resistance, high temperature resistance and durability.
Automatic temperature control system, double fire control temperature, hot air temperature, precise temperature control and fast heating
Easy to operate, one-click start and one person can operate multiple units which saving labor costs.
Product Parameters
| Model | 5TRQ-20 | 5TRQ-35 | 5TRQ-45 | 5TRQ-50 | |||
| Rated Heat | Ten thousand kcal | 20 | 35 | 45 | 50 | ||
|
Overall Dimensions
|
Length(L) | mm | 680 | 950 | 1305 | 1305 | |
| Width(W) | mm | 695 | 695 | 850 | 850 | ||
| Height(H) | mm | 672 | 673 | 1000 | 1000 | ||
| Total Length | Length(L1) | mm | 1160 | 1458 | 1813 | 1885 | |
| Weight | kg | 153 | 156 | 196 | 206 | ||
| Air Consum-ption | G20 | Nm3/h | 8.1-22 | 7/13÷39 | 8/15÷45 | 3/5÷15 | |
| G25 | Nm3/h | 9.4-25.6 | 10/20÷55 | 12/24÷64 | 4/8÷21 | ||
| LPG | Nm3/h | 3.1-8.5 | 11.6/29÷58 | 13.5/34÷68 | 4.5/11÷23 | ||
| Rated Voltage | 380V50HZ | ||||||
| Heating Method | Indirect Heating | ||||||
| Suitable fuel | Natural gas, liquefied petroleum gas, etc | ||||||
| Hot Air Temperature | 60℃-150℃ | ||||||
| Control Method | Automatic control, Double-stage fire burning | ||||||
| Operation | Intermittent(Stop at least once every 24 hours) | ||||||
| Safety Measures | One-click start, automatic thermostat, hot air temperature sensing, air supply, temperature synchronization automatically | ||||||
Note: The data listed above are reference values. Please refer to the object.
FAQ
Q: Why do I need a grain dryer?
1. Rainy days can save grain, free from moldy sprouting
2. Save space for drying cereals
3 can be fully automatic drying 24 hours, saving manpower
4. There is a dryer that can master a lot of fresh food sources
5. Uniform drying, finished color is better. Higher selling price and faster cost recovery.
Q: What is the heat source of your stove?
Coal, biomass, wood, rice husk, or diesel, or natural gas.
