Product Details:
|
| Power: | 7KW | Spare Parts: | Provided |
|---|---|---|---|
| Dryer Volume (m3）: | 25-30 | Frequency: | 50 / 60 Hz |
| Heating Source: | Electricity, Natural Gas, Coal, Diesel Etc. | Heating Method: | Indirect Heating |
| Nearest Port: | Shanghai | User Manual: | English Version |
| Voltage: | 3 Phases/ 380V | Installation: | Engineer Guide |
| Highlight: | 30 ton Paddy Dryer machine,7KW Paddy Dryer machine,30 ton paddy dryer plant |
||

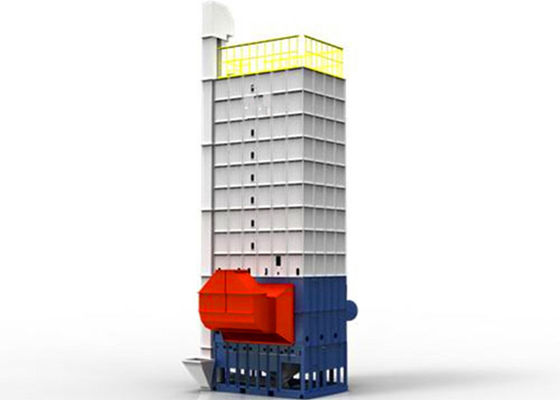

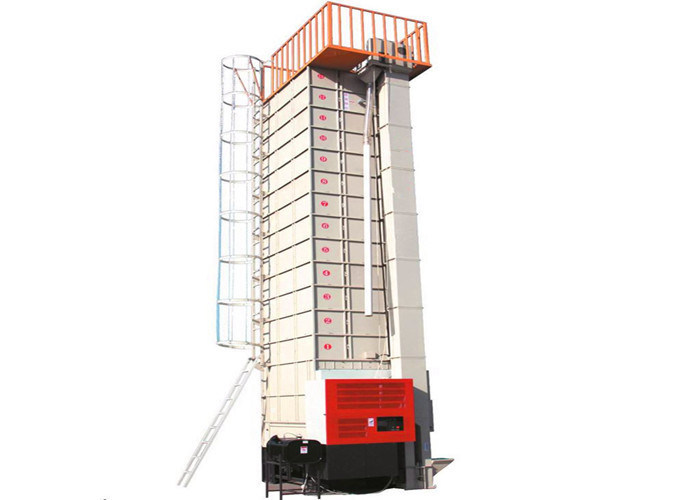

Multi-Purpose Paddy Drying System , Agricultural Processing Machine , Rice Husk Stove
Technical Parameters
| Model | 5HYX-15 | ||
| Structure Type | Fixed Type | ||
| Total Weight(kg) | 3170 | ||
| Dry Layer Height(mm) | 3260 | ||
| Body Size(L*W*H)(mm) | 2080*1860*8572 | ||
| Overall Dimensions(L*W*H)(mm) | 4450*2032*9671 | ||
| Capacity(kg) | Paddy(560kg/m3) | 6500-13250 | |
| Wheat(680kg/m3) | 7500-16350 | ||
| Heating Source | Hot blast stove, Boiler, Burner | ||
| Heating Method | Indirect Heating | ||
| Supporting Power Supply | three-phase,380V,50HZ | ||
| Total Power(KW) | 6.45 | ||
| Property | Feeding Time(Minutes) | 60-75 | |
| Discharging time(Minutes) | 60-70 | ||
| Precipitation Rate(%/hour) | 0.5-1.2 | ||
| Safety Devices | Fault automatic alarm, temperature control, overload protection, leakage protection, full grain alarm, automatic shutdown | ||
Application of grain drying machine
It is suitable for drying wheat, rice, paddy, corn and so on grains.
Capacity: 12.5/15/22/30 tons per batch.
Moisture Reduction per hour (%/h): Rice/wheat:0.5-0.8 or 1.2.
The drying box has heat preservation layer of silicon cotton, so it can reduce energy consumption efficiently. And the grain dryer adopts indirect heating system
Product Feature
Automatic intelligent electronic control system, the operation is easier
Optional imported online grain moisture meter to achieve accurate detection of grain moisture
Multiple heating method and fuels options with low drying costs
Low rotation speed auger and anti-crushing hoist ensures low breakage rate of grain and good quality drying.
The hoist is designed with two barrels and equipped with the anti-damage device to reduce the breakage rate of grain.
The gear motor and NSK/ASAHI bearing imported from Japan are used.
Introduction
Grain dryer grain dryer is used to dry wheat, corn, rice and other grain materials. Compact structure. Its feed, circulation and discharge are combined with lift. It has the characteristics of light weight and small area. Walking drying equipment can move with dry materials at the same time.
Our Service
1.Paddy drying machine with Factory Price and perfect after-sales service.
2.Assessed Gold Supplier.
3.Detail Design Thoughtful
4.100% QC inspection Before Shipping.
5.Cases in many countries.
6.Solve the problem within 72 hours
Optional Device – Rice Husk Stove
The box type hot blast stove is an environmentally friendly stove independently developed by our company which using coal, biomass, etc. as the heat source. It has low using cost and high heating efficiency. It is equipped with an automatic constant temperature ventilation device which can reduce the crack ratio of grain and ensure the grain quality by controlling the temperature automatically.
Product characteristics
Diverse fuels available (Coal, biomass, rice husks, etc.) with low operating costs.
Indirect heating, clean air and no pollution to grain
Large furnace capacity, unique S-type channel heat exchange device, high heat exchange efficiency
Automatic temperature control system, stable hot air, easy operation
Product Parameters
| Model | 5L-30 | 5L-45 | 5L-60 |
| Overall Dimension(mm) | 2950*1410*2170 | 4000*1410*2170 | 4000*1600*3000 |
| Rated voltage | 380V50HZ | ||
| Required power | 2.2 | 2.2 | 3.0 |
| Heating Method | Indirect Heating | ||
| Suitable fuel | Coal, biomass, rice husks, etc | ||
| Hot air temperature | 60℃-150℃ | ||
| Control method | Automatic control | ||
| Safety | Automatic thermostat, hot air temperature sensing, smoke extraction, air supply, temperature control automatic synchronization | ||
Note: The property and precipitation rate listed in the above table is the reference value. The actual value will be different due to the outside air temperature, relative humidity, dry type, hot air temperature and moisture content before and after drying.
Packing & Delivery
Due to the large volume of the dryer, we will divide the machine into many small parts before delivery, which is convenient for packaging and transportation.
It's usually shipped in containers, 20GP, 40P, 40HQ
