Product Details:
|
| Power: | 10 KW | Dryer Volume (m3）: | 25-30 |
|---|---|---|---|
| Voltage: | 3 Phases/ 380 V | Frequency: | 50 / 60 Hz |
| Heating Source: | Electricity, Natural Gas, Coal, Diesel Etc. | Package: | Wooden Cases |
| User Manual: | Provided In English | Spare Parts: | Provided |
| Installation: | Engineer Guide | Nearest Port: | Shanghai |
| Highlight: | 22 Ton Paddy Dryer machine,22 Ton Paddy Dryer plant,30m3 Paddy Dryer machine |
||

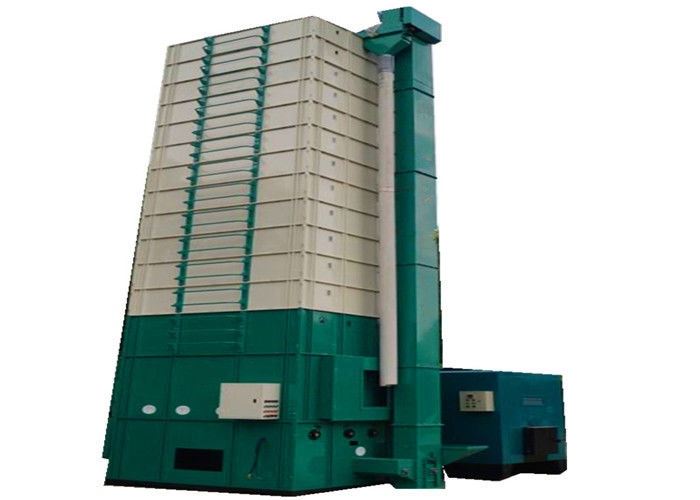

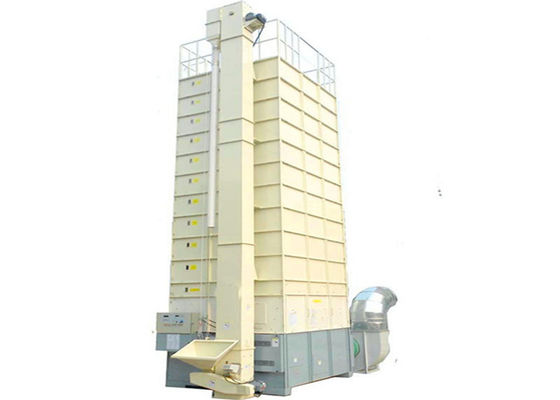

Easily Installed Low Temperature Cycle Paddy Dryer Machine 22 Tons ,Straw Stove
Introduction
Grain dryer grain dryer is used to dry wheat, corn, rice and other grain materials. Compact structure. Its feed, circulation and discharge are combined with lift. It has the characteristics of light weight and small area. Walking drying equipment can move with dry materials at the same time.
Product Feature
Automatic intelligent electronic control system, the operation is easier
Optional imported online grain moisture meter to achieve accurate detection of grain moisture
Multiple heating method and fuels options with low drying costs
Low rotation speed auger and anti-crushing hoist ensures low breakage rate of grain and good quality drying.
The hoist is designed with two barrels and equipped with the anti-damage device to reduce the breakage rate of grain.
The gear motor and NSK/ASAHI bearing imported from Japan are used.
Technical Parameters
| Model | 5HXY-22T | 5HXY-30T | ||
| Structure Type | Fixed | |||
| Total Weight(kg) | 4280 | 8650 | ||
| Dry Layer Height(mm) | 2220 | 2220 | ||
| Body Size(L*W*H)(mm) | 2560*2500*8955 | 3060*3060*8410 | ||
| Overall Dimensions(L*W*H)(mm) | 4137*4058*12670 | 4632*4277*12947 | ||
| Capacity(kg) | Rice(560kg/m3) | 6500-22000 | 8000-30000 | |
| Wheat(680kg/m3) | 7800-25000 | 10000-25000 | ||
| Heating Source | Hot blast stove, Boiler, Burner | |||
| Heating Method | Indirect Heating | |||
| Supporting Power Supply | three-phase,380V,50HZ | |||
| Total Power(KW) | 10.77 | 17.27 | ||
| Property | Feeding Time(Minutes) | 60-70 | ||
| Discharging time(Minutes) | 50-60 | |||
| Precipitation Rate(%/hour) | 0.5-1.2 | |||
| Safety Devices | Fault automatic alarm, temperature control, overload protection, leakage protection, full grain alarm, automatic shutdown | |||
Application of grain drying machine
It is suitable for drying wheat, rice, paddy, corn and so on grains.
Capacity: 12.5/15/22/30 tons per batch.
Moisture Reduction per hour (%/h): Rice/wheat:0.5-0.8 or 1.2.
The drying box has heat preservation layer of silicon cotton, so it can reduce energy consumption efficiently. And the grain dryer adopts indirect heating system
Our Service
* Inquiry and consulting support.
* Sample testing support.
* Visit our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Optional Device – Biomass stove
Product characteristics
Environmental protection and energy saving, promoting innovation, minimizing environmental pollution, and fuel gas emission standards.
Diverse fuels available (Coal, biomass, rice husks, etc.), low operating costs
Indirect heating, clean air, no pollution to grain
Large furnace capacity and use high quality stainless steel SUS316L material which has long service life with corrosion resistance, high temperature resistance and durability.
Unique S-type channel heat exchange device, high quality stainless steel SUS316L material, high heat exchange efficiency, low heat loss
Automatic temperature control system, hot air temperature, precise temperature control and rapid heating.
Easy to operate, one-click start and one person can operate multiple units which saving labor costs.
Product Parameters
| Model | 5LSW-45 | 5LSW-60 | 5LSW-75 | ||
| Rated heat | Ten thousand kcal | 45 | 60 | 75 | |
|
Overall Dimensions
|
Length(L) | mm | 4300 | 4600 | 4600 |
| Width(W) | mm | 1600 | 1600 | 1800 | |
| Height(H) | mm | 3220 | 3550 | 4275 | |
| Weight | kg | 3500 | 4000 | 4300 | |
| Cooling area | m2 | 48 | 64 | 78 | |
| Total Power | KW | 4.4 | 4.4 | 6.95 | |
| Rated voltage | 380V50HZ | ||||
| Heating Method | Indirect Heating | ||||
| Suitable fuel | Coal, biomass, rice husks, etc. | ||||
| Hot air temperature | 60℃-150℃ | ||||
| control method | Automatic control | ||||
| Safety | Automatic thermostat, hot air temperature sensing, smoke extraction, air supply, temperature control automatic synchronization | ||||
Note: The data listed above are reference values. Please refer to the object.
Packing & Delivery
Due to the large volume of the dryer, we will divide the machine into many small parts before delivery, which is convenient for packaging and transportation.
It's usually shipped in containers, 20GP, 40P, 40HQ
