Product Details:
|
| Power: | 6KW | Voltage: | 220V, Single Phase |
|---|---|---|---|
| Frequency: | 50 Hz | Heating Source: | Electricity, Natural Gas, Coal, Diesel Etc. |
| Drying Layer Height: | 1200-2200 Mm | Usage: | Agriculture |
| Raw Material: | Stainless Steel Or Carbon Steel | Spare Parts: | Provided |
| Installation: | Engineer Guide | Condition: | New |
| Highlight: | 5 Ton Mini Paddy Dryer Machine,6KW Mini Paddy Dryer Machine,5 Ton paddy drying machine |
||

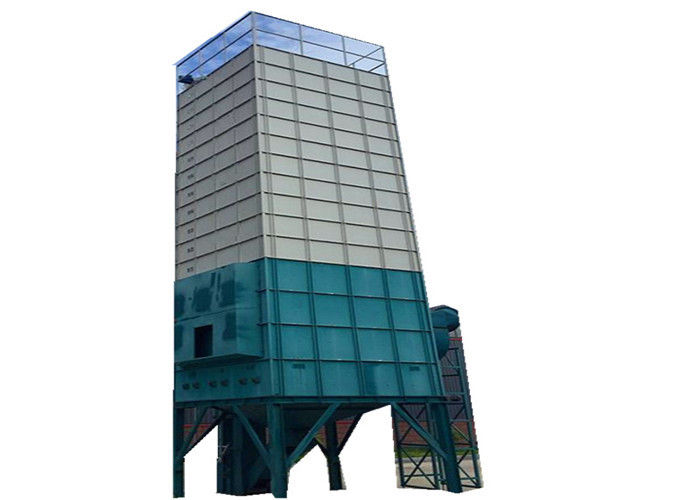

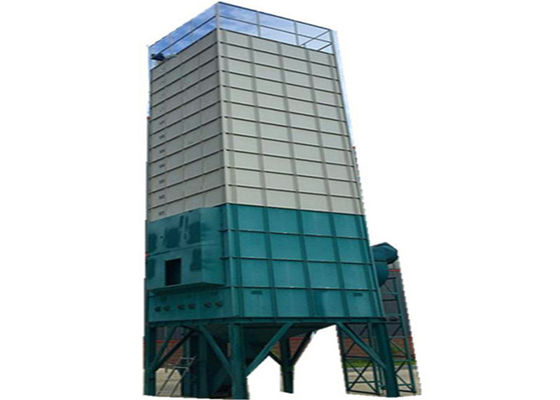

Mini Paddy Dryer Machine 5 Tons In Agricluture Industry ,Rice Husk Stove
Product Feature
Flexible and efficient heat source
Multiple heat supply is available. To minimize the environment burden, this machine is adopting the technology of low temperature fully drying, and the technology of maximum heat
Even blend, circular drying
Temp is around 40-60C to minimize the broken rate, and to ensure the products in good condition tempering for a long time. Thus, production costs will also be reduced at most
Working Principle of paddy dryer
It adopts rotary heating device; it can output enough hot air in a short time and kill eggs though high temperature.
It also adopts digitization control and instrumentation to control drying box’s temperature to avoid appearing discoloring and metamorphic phenomenon.
Drying cabinet is made of metal aluminum plate and silica gel cotton insulation layer to reduce energy consumption effectively.
Cyclotron system can reach the purpose of air circulation, humidification and heating in the drying box
Technical Parameters
| Dryer Type | XY-12.5T | XY-15T | XY-30T | |
| Structure Type | Fixed | Fixed | Fixed | |
| Whole Machine Weight(kg) | 3240 | 3625 | 4280 | |
| Overall Dimension (Length*width*height) (mm) | 3836*2480*10547 | 3836*2480*11637 | 4137*4058*12107 | |
| Volume(kg) | Paddy (560 kg / m³) | 2500-12500 | 2500-15000 | 6500-22000 |
| Wheat (680 kg / m³) | 3035-15200 | 3035-18200 | 7800-25000 | |
| Heating Method | Hot stove, boiler, burner, Indirect heating | Hot stove, boiler, burner, Indirect heating | Hot stove, boiler, burner, Indirect heating | |
| Voltage | 3 phases,380V,50HZ | 3 phases,380V,50HZ | 3 phases,380V,50HZ | |
| Whole Machine Power(KW) | 9.77 | 9.77 | 10.77 | |
|
Capacity |
Feed time(Minute) | 50-60 | 60-70 | 60-70 |
| Discharge time(Minute) | 45-55 | 50-60 | 50-60 | |
| Precipitation rate(%/hour) | 0.5-1.2 | 0.5-1.2 | 0.5-1.2 | |
|
Safety Devices |
Fault automatic alarm, temperature control, overload protection, leakage protection, full grain alarm, automatic shutdown | Fault automatic alarm, temperature control, overload protection, leakage protection, full grain alarm, automatic shutdown | Fault automatic alarm, temperature control, overload protection, leakage protection, full grain alarm, automatic shutdown | |
Application of grain drying machine
It is suitable for drying wheat, rice, paddy, corn and so on grains.
Capacity: 12.5/15/22/30 tons per batch.
Moisture Reduction per hour (%/h): Rice/wheat:0.5-0.8 or 1.2.
The drying box has heat preservation layer of silicon cotton, so it can reduce energy consumption efficiently. And the grain dryer adopts indirect heating system
Components of paddy dryer
It is mainly composed of feeding device, bucket conveyer, drying box, dust catcher, efficient hot-blast stove, fan, on-line temperature measuring instrument, rapid water meter, electric control system and other systems.
Optional Device – Heating Stove
Biomass stove
Product Parameters
| Model | 5LSW-45 | 5LSW-60 | 5LSW-75 | ||
| Rated heat | Ten thousand kcal | 45 | 60 | 75 | |
|
Overall Dimensions
|
Length(L) | mm | 4300 | 4600 | 4600 |
| Width(W) | mm | 1600 | 1600 | 1800 | |
| Height(H) | mm | 3220 | 3550 | 4275 | |
| Weight | kg | 3500 | 4000 | 4300 | |
| Cooling area | m2 | 48 | 64 | 78 | |
| Total Power | KW | 4.4 | 4.4 | 6.95 | |
| Rated voltage | 380V50HZ | ||||
| Heating Method | Indirect Heating | ||||
| Suitable fuel | Coal, biomass, rice husks, etc. | ||||
| Hot air temperature | 60℃-150℃ | ||||
| control method | Automatic control | ||||
| Safety | Automatic thermostat, hot air temperature sensing, smoke extraction, air supply, temperature control automatic synchronization | ||||
Note: The data listed above are reference values. Please refer to the object.
