Product Details:
|
| Power: | 12 KW | Voltage: | 220V / 380V |
|---|---|---|---|
| Frequency: | 50 / 60 Hz | Heating Source: | Electricity, Natural Gas, Coal, Diesel Etc. |
| Package: | Wooden Cases | User Manual: | Provided In English |
| One Drying Cycyle: | 24 Hours | Grain Flow: | No Auger / Auger |
| Material Feeding: | Bucket Elevator | Condition: | New |
| Highlight: | 12KW Paddy Dryer machine,380V Paddy Dryer machine,12KW agricultural dryer machine |
||

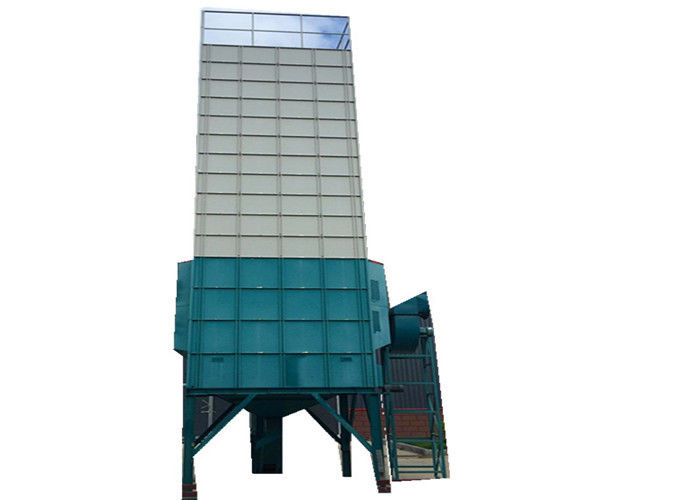

Auger Rotating Feeding Paddy Dryer Machine 30 Tons Moisture Removal ,Natural Gas Stove
Introduction
Grain dryer grain dryer is used to dry wheat, corn, rice and other grain materials. Compact structure. Its feed, circulation and discharge are combined with lift. It has the characteristics of light weight and small area. Walking drying equipment can move with dry materials at the same time.
Product Feature
High automation (automatic monitor over hot air, grain and moisture, automatic failure alarm); Automatic circulating, discharging and shutdown system;
Lowest cost (for every 12 tons rice to be reduced 5% moisture, it costs 78.0RMB for burning coal, and 37.5RMB for burning husk).
Drying cereal shiny bright, no paste, cracking rate is lower than the national standard corn standard 4%. Drying the finished rice, bursting rate below 2%, cracking rate of less than 4%, the color showed a natural state, Eliminate grain pollution.
Working Principle of paddy dryer
It adopts rotary heating device; it can output enough hot air in a short time and kill eggs though high temperature.
It also adopts digitization control and instrumentation to control drying box’s temperature to avoid appearing discoloring and metamorphic phenomenon.
Drying cabinet is made of metal aluminum plate and silica gel cotton insulation layer to reduce energy consumption effectively.
Cyclotron system can reach the purpose of air circulation, humidification and heating in the drying box
Technical Parameters
| Model | 5HXY-12.5T | 5HXY-15T | 5HXY-22A | 5HXY-22B | ||
| Structure Type | Fixed | |||||
| Total Weight(kg) | 3240 | 3625 | 5240 | 5604 | ||
| Drying Layer Height(mm) | 1480 | 1480 | 1480 | 1980 | ||
| Body Size(L*W*H)(mm) | 2060*2060*8796 | 2060*2060*9886 | 2350*2700*9645 | 2350*2700*10145 | ||
| Overall Dimensions(L*W*H) (mm) | 3836*2480*10547 | 3836*2480*11637 | 4212*2922*11596 | 4212*2922*12096 | ||
| Capacity(kg) | Paddy(560kg/m3) | 2500-12500 | 2500-15000 | 5400-22000 | 5900-22500 | |
| Wheat(680kg/m3) | 3035-15200 | 3035-18200 | 6500-26700 | 7200-27400 | ||
| Heating Source | Hot blast stove, Boiler, Burner | |||||
| Heating Method | Indirect Heating | |||||
| Supporting Power Supply | three-phase,380V,50HZ | |||||
| Total Power(KW) | 9.77 | 11.32 | ||||
|
Property |
Feeding Time(Minutes) | 50-60 | 55-65 | 50-60 | ||
| Discharging time(Minutes) | 45-55 | 50-60 | 45-55 | |||
| Precipitation Rate(%/hour) | 0.5-1.2 | 0.5-1.2 | ||||
|
Safety Devices |
Fault automatic alarm, temperature control, overload protection, leakage protection, full grain alarm, automatic shutdown | |||||

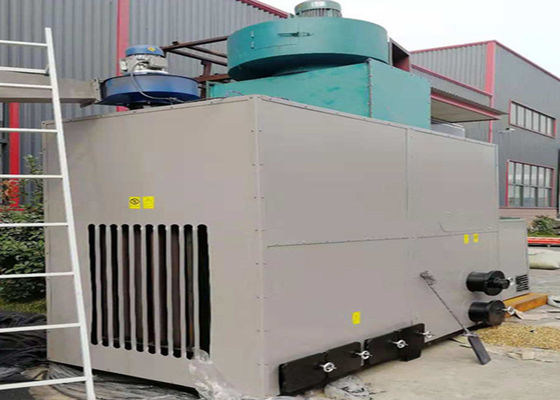

Stove heating or heat pump
It consists of 3 sectors of fire-proof wall, 2 layer brick of every fire-proof wall
Advantage: reasonable design can avoid open flame. So it run steadily, safely and have long use-life.
Can be fueled by Nature gas coal, wood, rice husk, diesel, etc.
Application of grain drying machine
It is suitable for drying wheat, rice, paddy, corn and so on grains.
Capacity: 12.5/15/22/30 tons per batch.
Moisture Reduction per hour (%/h): Rice/wheat:0.5-0.8 or 1.2.
The drying box has heat preservation layer of silicon cotton, so it can reduce energy consumption efficiently. And the grain dryer adopts indirect heating system
Our Service
* Inquiry and consulting support.
* Sample testing support.
* Visit our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Optional Device – Heating Stove

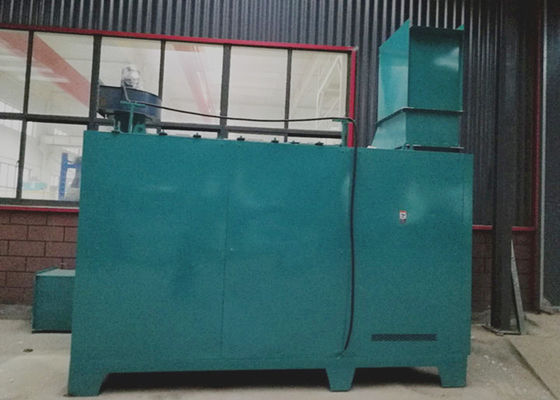

Natural gas stove
Product characteristics
Diverse fuels available (Natural gas, liquefied petroleum gas, etc.), low operating costs
Indirect heating, clean air, no pollution to grain
Large furnace capacity and use high quality stainless steel SUS316L material which has long service life with corrosion resistance, high temperature resistance and durability.
Automatic temperature control system, double fire control temperature, hot air temperature, precise temperature control and fast heating
Easy to operate, one-click start and one person can operate multiple units which saving labor costs.
Product Parameters
| Model | 5TRQ-20 | 5TRQ-35 | 5TRQ-45 | 5TRQ-50 | |||
| Rated Heat | Ten thousand kcal | 20 | 35 | 45 | 50 | ||
|
Overall Dimensions
|
Length(L) | mm | 680 | 950 | 1305 | 1305 | |
| Width(W) | mm | 695 | 695 | 850 | 850 | ||
| Height(H) | mm | 672 | 673 | 1000 | 1000 | ||
| Total Length | Length(L1) | mm | 1160 | 1458 | 1813 | 1885 | |
| Weight | kg | 153 | 156 | 196 | 206 | ||
| Air Consum-ption | G20 | Nm3/h | 8.1-22 | 7/13÷39 | 8/15÷45 | 3/5÷15 | |
| G25 | Nm3/h | 9.4-25.6 | 10/20÷55 | 12/24÷64 | 4/8÷21 | ||
| LPG | Nm3/h | 3.1-8.5 | 11.6/29÷58 | 13.5/34÷68 | 4.5/11÷23 | ||
| Rated Voltage | 380V50HZ | ||||||
| Heating Method | Indirect Heating | ||||||
| Suitable fuel | Natural gas, liquefied petroleum gas, etc | ||||||
| Hot Air Temperature | 60℃-150℃ | ||||||
| Control Method | Automatic control, Double-stage fire burning | ||||||
| Operation | Intermittent(Stop at least once every 24 hours) | ||||||
| Safety Measures | One-click start, automatic thermostat, hot air temperature sensing, air supply, temperature synchronization automatically | ||||||
Note: The data listed above are reference values. Please refer to the object.
FAQ
Q: Why do I need a grain dryer?
1. Rainy days can save grain, free from moldy sprouting
2. Save space for drying cereals
3 can be fully automatic drying 24 hours, saving manpower
4. There is a dryer that can master a lot of fresh food sources
5. Uniform drying, finished color is better. Higher selling price and faster cost recovery.
Q: What is the heat source of your stove?
Coal, biomass, wood, rice husk, or diesel, or natural gas.
Q: How long does it take to dry a batch of grains?
The drying time is determined by the yield and moisture content, and the national standard stipulates that the moisture reduction rate is about 1% in one hour.
Q: How long will you ship? How to calculate the freight?
Shipped within 10 days after payment, stock within one week. Shipping freight is according to the port.
