Product Details:
|
| Key Point: | Operate Easily | Weighing Controller: | Germain Canada |
|---|---|---|---|
| Load Cell Numbers: | Two Or Four | Machine Power: | 3KW |
| Package Type: | Open Mouth Bag Or M Type | Capacity: | 300-500 B/h |
| Weigher: | Single / Double Bucket | Air Pressure: | 0.7Mpa |
| Highlight: | 20kg Bag Granule Packing Machine,20kg food packaging equipment,20kg vertical packaging machine |
||

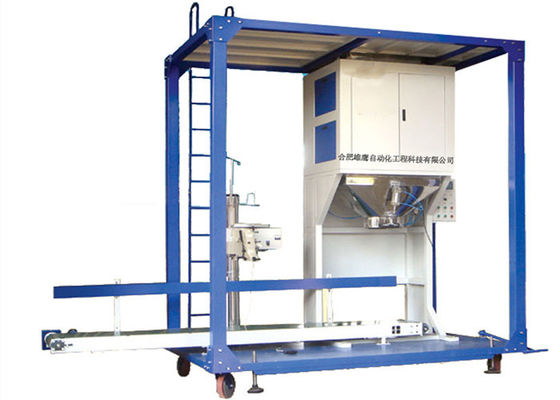

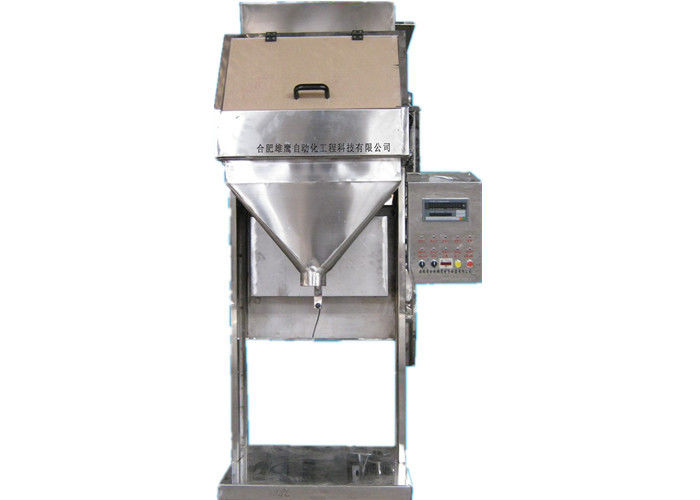

20kg PE Bag Granular Material Packaging Machine In Food Industry With Dustproof Grade
Function Scope
Our packaging machine is widely used in feed, fertilizer, grain, chemical industry, building materials,
starch, food, rubber and plastics, hardware, minerals, covering more than 20 industries, more than 3,000 kinds of materials.
Machine Technicals
| Type | 5-50kg Double Bucket Granule Packing Scale |
| Weighing Capacity | 8-15bags/min |
| Weighing Range | 5-60kg/package |
| Weighing Error | 0.2-2% |
| Control Method | Meter + Touch screen |
| Power Supply | AC380V |
| Host Power | 3KW |
| Gas Supply | oil-free, dust-free instrument gas |
| Pressure |
0.4---0.6Mpa
|
Conveyor Parameters
| Conveyor Length | 3000mm |
| Conveyor Speed | 5-20m/min |
| Conveyor Belt Width | 400mm |
| Maximum Conveying Capacity | 10-15 bags / min |
| Power Supply | AC380V |
| Power | 0.75KW |
Machine Features
The machine unit can realize automatic material measuring, manual bag feeding, automatic bag mouth sewing in one basic line.
Depending on customer's specific needs for packing, the machine can equip with bag push down conveyor, shaping conveyor, grasp conveyor and robot hand to form whole packing and palletizing line
Electronic touch screen, easy operation
Independent suspension sensors, signal stability, ensure the weighing accuracy
Infrared sensor, two speed feeding system, weighing precision is high
Ring folder bag institutions, make the bag with the feed opening sealed tightly, and can reduce dust spillover
Cooperate with feeding machine, conveyor, sealing machine optimal automation control, improve efficiency to reduce Labor intensity
Working Principles
This series of quantitative packaging weighing unit is specially designed for the quantitative packaging of all kinds of granular materials and small particles with good fluidity & small dust, feeding by pneumatic arc door or vibration. Pneumatic curved door or vibrating feeder is controlled by the sensor feedback signal, and the material is graded into the weighing bucket or the packaging bag. When the material in the weighing bucket or packaging bag is filled to the set weight, the feeding mechanism stops feeding. When the set value is reached, the bag clamper automatically opens, and the bag is sent away by the conveyor belt (bag sealed).
Quality Assurance
1. The warranty period is one year.
2. Ensure that the goods supplied meet the quality specifications and performance of the contract in all respects.
3. Ensure that the equipment has been properly installed and adjusted to meet the contractual requirement after the entire system is in operation.
4. Provide quantitative packaging scales with advanced design and excellent materials. The main components are selected from famous domestic and foreign manufacturers.
Installation
The installation can be provided by the EAGLE company.
It must be after shipment has arrived and factory must ready equipped with all necessary requirement before booking installation with EAGLE company. Our engineers will come to the site for the complete and final installation.
During the installation session, a one day training course will be provided to the customer for operation and maintenance procedure.
The purchase at US$80-100/person/day plus all local transportation, air tickets (round trip), and hotel room & board is provided. Day charges include travel days.
Packaging and Delivery
Inner package with stretch film, out package with export wooden box(with metal frame more safe and non-fumigation wooden), avoid the packing machine broken.
When you received the packing machine, you no need installation again, connect your electric wire and air source to the packing machine then can working.
Shipping port: Shanghai/ Ningbo / Nanchang port or other port you need.
Our Service
We Promise Customer Perfect Guarantee and After-Service
As for EAGLE packaging machine, our company provides 12 months for all mechanical parts except for electrical and electronic parts and those subjects to normal wear and tear. Meanwhile, the guarantee starts from the shipment (B/L date). The guarantee is intended limited to the replacement of the broken part after checking the construction fault. The guarantee declines in the case the customer proceeds, without proper consent, to the replacement, modification, or repair of parts. The inspection of the causes of the trouble or the breakdown of the parts is exclusively up to the manufacturing company. All in all, our company can offer you assured products.
If the machine meet problem during future using, call our direct line or eamil us directly and take picture for showing us the problem, we shall take action to solve problem within 24 hours.
FAQ
Q: Where are you located?
A: Our factory is in Hefei city (2 hours high-speed train from Shanghai). Air port name is HFE.
Q: What's the payment term?
A: L/C or TT is accepted.
Q: What is the lead time?
A: 15-20 days after received the deposit.
Q: Can this machine make different bag sizes?
A: Yes, we can be formulated according to your requirements.
